Bone Screws Manufacturer in India
Bone Screw
Bone screws are essential components of Orthopedic surgery, providing stable fixation for fractures, osteotomies, and reconstructive procedures. These screws are engineered with precision, ensuring optimal grip and stability within the bone structure. They are made of high-quality materials like titanium or stainless steel that offer exceptional durability and biocompatibility, reducing the risk of rejection or complications. Their design allows for efficient load distribution, which helps in the healing process and minimizes post-surgical discomfort for patients.
Bone screws are available in various types of sizes and thread patterns, making them suitable for a wide range of fracture types and anatomical locations. Whether used alone or as part of a larger fixation system, they play an important role in restoring bone integrity and maintaining alignment during recovery. Their corrosion resistance and long-term durability ensure long-term results, making them an excellent choice for Orthopedic surgeons handling trauma cases, spinal surgeries, and joint reconstructions.
BONE SCREW

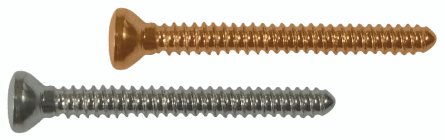

1. Mini Cortex Screw Dia - 1.5mm
Minitorinillo de cortical de 1,5 mm de diámetro.
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 1.5mm |
| Drill for Threaded Hole | 1.1mm |
| Drill for Gliding Hole | 1.6mm |
| Core Diameter | 1.0mm |
| Hexagonal Socket | 1.5mm |
| Head Diameter | 3.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 601.06-Ti | 601.06 | 06mm |
| 601.07-Ti | 601.07 | 07mm |
| 601.08-Ti | 601.08 | 08mm |
| 601.09-Ti | 601.09 | 09mm |
| 601.10-Ti | 601.10 | 10mm |
| 601.11-Ti | 601.11 | 11mm |
| 601.12-Ti | 601.12 | 12mm |
| 601.14-Ti | 601.14 | 14mm |
| 601.16-Ti | 601.16 | 16mm |
| 601.18-Ti | 601.18 | 18mm |
| 601.20-Ti | 601.20 | 20mm |
| 601.22-Ti | 601.22 | 22mm |
| 601.24-Ti | 601.24 | 24mm |
2. Mini Cortex Screw Dia - 2.0mm
Minitornillo de cortical de 2,0 mm dediámetro
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 1.5mm |
| Drill for Threaded Hole | 1.1mm |
| Drill for Gliding Hole | 1.6mm |
| Core Diameter | 1.0mm |
| Hexagonal Socket | 1.5mm |
| Head Diameter | 3.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 601.06-Ti | 601.06 | 06mm |
| 601.07-Ti | 601.07 | 07mm |
| 601.08-Ti | 601.08 | 08mm |
| 601.09-Ti | 601.09 | 09mm |
| 601.10-Ti | 601.10 | 10mm |
| 601.11-Ti | 601.11 | 11mm |
| 601.12-Ti | 601.12 | 12mm |
| 601.14-Ti | 601.14 | 14mm |
| 601.16-Ti | 601.16 | 16mm |
| 601.18-Ti | 601.18 | 18mm |
| 601.20-Ti | 601.20 | 20mm |
| 601.22-Ti | 601.22 | 22mm |
| 601.24-Ti | 601.24 | 24mm |
3. Mini Cortex Screw Dia - 2.7mm
Minitornillo de cortical de 2,7 mm de diámetro
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 2.7mm |
| Drill for Threaded Hole | 2.0mm |
| Drill for Gliding Hole | 2.7mm |
| Core Diameter | 1.9mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 603.06-Ti | 603.06 | 06mm |
| 603.08-Ti | 603.08 | 08mm |
| 603.10-Ti | 603.10 | 10mm |
| 603.12-Ti | 603.12 | 12mm |
| 603.14-Ti | 603.14 | 14mm |
| 603.16-Ti | 603.16 | 16mm |
| 603.18-Ti | 603.18 | 18mm |
| 603.20-Ti | 603.20 | 20mm |
| 603.22-Ti | 603.22 | 22mm |
| 603.20-Ti | 603.20 | 20mm |
| 603.24-Ti | 603.24 | 24mm |
| 603.26-Ti | 603.26 | 26mm |
| 603.28-Ti | 603.28 | 28mm |
| 603.30-Ti | 603.30 | 30mm |
4. Cortex Screw Dia - 3.5mm
Diámetro del tornillo de cortical - 3,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.5mm |
| Drill for Gliding Hole | 3.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 6.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 604.10-Ti | 604.10 | 10mm |
| 604.12-Ti | 604.12 | 12mm |
| 604.14-Ti | 604.14 | 14mm |
| 604.16-Ti | 604.16 | 16mm |
| 604.18-Ti | 604.18 | 18mm |
| 604.20-Ti | 604.20 | 20mm |
| 604.22-Ti | 604.22 | 22mm |
| 604.24-Ti | 604.24 | 24mm |
| 604.26-Ti | 604.26 | 26mm |
| 604.28-Ti | 603.28 | 28mm |
| 604.30-Ti | 604.30 | 30mm |
| 604.32-Ti | 604.32 | 32mm |
| 604.34-Ti | 603.34 | 34mm |
| 604.36-Ti | 604.36 | 36mm |
| 604.38-Ti | 604.38 | 38mm |
| 604.40-Ti | 604.40 | 40mm |
| 604.45-Ti | 604.45 | 45mm |
| 604.50-Ti | 604.50 | 50mm |
| 604.55-Ti | 604.55 | 55mm |
| 604.60-Ti | 604.60 | 60mm |
5. Cortex Screw Dia - 3.5mm - Self Tapping
Cortex Screw Dia - 3.5mm - Autorroscante
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.5mm |
| Drill for Gliding Hole | 3.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 6.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 604.10ST-Ti | 604.10ST | 10mm |
| 604.12ST-Ti | 604.12ST | 12mm |
| 604.14ST-Ti | 604.14ST | 14mm |
| 604.16ST-Ti | 604.16ST | 16mm |
| 604.18ST-Ti | 604.18ST | 18mm |
| 604.20ST-Ti | 604.20ST | 20mm |
| 604.22ST-Ti | 604.22ST | 22mm |
| 604.24ST-Ti | 604.24ST | 24mm |
| 604.26ST-Ti | 604.26ST | 26mm |
| 604.28ST-Ti | 603.28ST | 28mm |
| 604.30ST-Ti | 604.30ST | 30mm |
| 604.32ST-Ti | 604.32ST | 32mm |
| 604.34ST-Ti | 603.34ST | 34mm |
| 604.36ST-Ti | 604.36ST | 36mm |
| 604.38ST-Ti | 604.38ST | 38mm |
| 604.40ST-Ti | 604.40ST | 40mm |
| 604.45ST-Ti | 604.45ST | 45mm |
| 604.50ST-Ti | 604.50ST | 50mm |
| 604.55ST-Ti | 604.55ST | 55mm |
| 604.60ST-Ti | 604.60ST | 60mm |
6. Cancellous Screws Dia 2.7mm
Diámetro del tornillo de esponjosa: 2,7 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 2.7mm |
| Drill for Threaded Hole | 2.0mm |
| Drill for Gliding Hole | 2.7mm |
| Core Diameter | 1.9mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 606.2706-Ti | 606.2706 | 10mm |
| 606.2708-Ti | 606.2708 | 12mm |
| 606.2710-Ti | 606.2710 | 14mm |
| 606.2712-Ti | 606.2712 | 16mm |
| 606.2714-Ti | 606.2714 | 18mm |
| 606.2716-Ti | 606.2716 | 20mm |
| 606.2718-Ti | 606.2718 | 22mm |
| 606.2720-Ti | 606.2720 | 24mm |
| 606.2722-Ti | 606.2722 | 26mm |
| 606.2724-Ti | 606.2724 | 28mm |
| 606.2726-Ti | 606.2726 | 30mm |
| 606.2728-Ti | 606.2728 | 35mm |
| 606.2730-Ti | 606.2730 | 40mm |
7. Cortex Screw Self Tapping Dia - 4.5mm
Tornillo Cortex Diámetro autorroscante - 4,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill for Threaded Hole | 3.2mm |
| Drill for Gliding Hole | 4.5mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 605.10ST-Ti | 605.10ST | 10mm |
| 605.12ST-Ti | 605.12ST | 12mm |
| 605.14ST-Ti | 605.14ST | 14mm |
| 605.16ST-Ti | 605.16ST | 16mm |
| 605.18ST-Ti | 605.18ST | 18mm |
| 605.20ST-Ti | 605.20ST | 20mm |
| 605.22ST-Ti | 605.22ST | 22mm |
| 605.24ST-Ti | 605.24ST | 24mm |
| 605.26ST-Ti | 605.26ST | 26mm |
| 605.28ST-Ti | 605.28ST | 28mm |
| 605.30ST-Ti | 605.30ST | 30mm |
| 605.32ST-Ti | 605.32ST | 32mm |
| 605.34ST-Ti | 605.34ST | 34mm |
| 605.36ST-Ti | 605.36ST | 36mm |
| 605.38ST-Ti | 605.38ST | 38mm |
| 605.40ST-Ti | 605.40ST | 40mm |
| 605.42ST-Ti | 605.42ST | 42mm |
| 605.44ST-Ti | 605.44ST | 44mm |
| 605.46ST-Ti | 605.46ST | 46mm |
| 605.48ST-Ti | 605.48ST | 48mm |
| 605.50ST-Ti | 605.50ST | 50mm |
| 605.52ST-Ti | 605.52ST | 52mm |
| 605.54ST-Ti | 605.54ST | 54mm |
| 605.58ST-Ti | 605.58ST | 58mm |
| 605.60ST-Ti | 605.60ST | 60mm |
| 605.62ST-Ti | 605.62ST | 62mm |
| 605.64ST-Ti | 605.64ST | 64mm |
| 605.66ST-Ti | 605.66ST | 66mm |
| 605.68ST-Ti | 605.68ST | 68mm |
| 605.70ST-Ti | 605.70ST | 70mm |
| 605.72ST-Ti | 605.72ST | 72mm |
| 605.74ST-Ti | 605.74ST | 74mm |
8. Cancellous Screw Dia - 3.5mm
Diámetro del tornillo de esponjosa: 3,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.5mm |
| Drill for Gliding Hole | 3.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 6.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 606.10-Ti | 606.10 | 10mm |
| 606.12-Ti | 606.12 | 12mm |
| 606.14-Ti | 606.14 | 14mm |
| 606.16-Ti | 606.16 | 16mm |
| 606.18-Ti | 606.18 | 18mm |
| 606.20-Ti | 606.20 | 20mm |
| 606.22-Ti | 606.22 | 22mm |
| 606.24-Ti | 606.24 | 24mm |
| 606.26-Ti | 606.26 | 26mm |
| 606.28-Ti | 606.28 | 28mm |
| 606.30-Ti | 606.30 | 30mm |
| 606.35-Ti | 606.35 | 35mm |
| 606.40-Ti | 606.40 | 40mm |
| 606.45-Ti | 606.45 | 45mm |
| 606.50-Ti | 606.50 | 50mm |
| 606.55-Ti | 606.55 | 55mm |
| 606.60-Ti | 606.60 | 60mm |
9. Cancellous Screws Full -Thread Dia - 4.0mm
Tornillos para esponjosa de diámetro de rosca completa - 4,0 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.5mm |
| Drill for Gliding Hole | 3.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 6.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 607.10-Ti | 607.10 | 10mm |
| 607.12-Ti | 607.12 | 12mm |
| 607.14-Ti | 607.14 | 14mm |
| 607.16-Ti | 607.16 | 16mm |
| 607.18-Ti | 607.18 | 18mm |
| 607.20-Ti | 607.20 | 20mm |
| 607.22-Ti | 607.22 | 22mm |
| 607.24-Ti | 607.24 | 24mm |
| 607.26-Ti | 607.26 | 26mm |
| 607.28-Ti | 607.28 | 28mm |
| 607.30-Ti | 607.30 | 30mm |
| 607.35-Ti | 607.35 | 35mm |
| 607.40-Ti | 607.40 | 40mm |
| 607.45-Ti | 607.45 | 45mm |
| 607.50-Ti | 607.50 | 50mm |
| 607.55-Ti | 607.55 | 55mm |
| 607.60-Ti | 607.60 | 60mm |
| 607.65-Ti | 607.65 | 65mm |
| 607.70-Ti | 607.70 | 70mm |
| 607.75-Ti | 607.75 | 75mm |
| 607.80-Ti | 607.80 | 80mm |
10. Cancellous Bone Screws Short - Thread Dia - 4.0mm
Tornillos para hueso esponjoso cortos - Diámetro de rosca - 4,0 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.0mm |
| Drill for Threaded Hole | 2.5mm |
| Drill for Gliding Hole | 1.9mm |
| Core Diameter | 2.5mm |
| Hexagonal Socket | 6.0mm |
| Head Diameter | 2.4mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 608.10-Ti | 608.10 | 10mm |
| 608.12-Ti | 608.12 | 12mm |
| 608.14-Ti | 608.14 | 14mm |
| 608.16-Ti | 608.16 | 16mm |
| 608.18-Ti | 608.18 | 18mm |
| 608.20-Ti | 608.20 | 20mm |
| 608.22-Ti | 608.22 | 22mm |
| 608.24-Ti | 608.24 | 24mm |
| 608.26-Ti | 608.26 | 26mm |
| 608.28-Ti | 608.28 | 28mm |
| 608.30-Ti | 608.30 | 30mm |
| 608.35-Ti | 608.35 | 35mm |
| 608.40-Ti | 608.40 | 40mm |
| 608.45-Ti | 608.45 | 45mm |
| 608.50-Ti | 608.50 | 50mm |
| 608.55-Ti | 608.55 | 55mm |
| 608.60-Ti | 608.60 | 60mm |
| 608.65-Ti | 608.65 | 65mm |
| 608.70-Ti | 608.70 | 70mm |
| 608.75-Ti | 608.75 | 75mm |
| 608.80-Ti | 608.80 | 80mm |
11. Cancellous Screws Full-Thread Dia 4.5mm
Tornillos para esponjosa con rosca completa de 4,5 mm de diámetro
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill for Threaded Hole | 2.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 607.4520-Ti | 607.4520 | 20mm |
| 607.4522-Ti | 607.4522 | 22mm |
| 607.4524-Ti | 607.4524 | 24mm |
| 607.4526-Ti | 607.4526 | 26mm |
| 607.4528-Ti | 607.4528 | 28mm |
| 607.4530-Ti | 607.4530 | 30mm |
| 607.4535-Ti | 607.4535 | 35mm |
| 607.4540-Ti | 607.4540 | 40mm |
| 607.4545-Ti | 607.4545 | 45mm |
| 607.4550-Ti | 607.4550 | 50mm |
| 607.4555-Ti | 607.4555 | 55mm |
| 607.4560-Ti | 607.4560 | 60mm |
| 607.4565-Ti | 607.4565 | 65mm |
| 607.4570-Ti | 607.4570 | 70mm |
| 607.4575-Ti | 607.4575 | 75mm |
| 607.4580-Ti | 607.4580 | 80mm |
12. Cancellous Bone Screw Short - Thread Dia 4.5mm
Tornillo corto para hueso esponjoso - Rosca de 4,5 mm de diámetro
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill for Threaded Hole | 2.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Shaft Diameter | 3.4mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 608.4520-Ti | 608.4520 | 20mm |
| 608.4522-Ti | 608.4522 | 22mm |
| 608.4524-Ti | 608.4524 | 24mm |
| 608.4526-Ti | 608.4526 | 26mm |
| 608.4528-Ti | 608.4528 | 28mm |
| 608.4530-Ti | 608.4530 | 30mm |
| 608.4535-Ti | 608.4535 | 35mm |
| 608.4540-Ti | 608.4540 | 40mm |
| 608.4545-Ti | 608.4545 | 45mm |
| 608.4550-Ti | 608.4550 | 50mm |
| 608.4555-Ti | 608.4555 | 55mm |
| 608.4560-Ti | 607.4560 | 60mm |
| 608.4565-Ti | 608.4565 | 65mm |
| 608.4570-Ti | 608.4570 | 70mm |
| 608.4575-Ti | 608.4575 | 75mm |
| 608.4580-Ti | 608.4580 | 80mm |

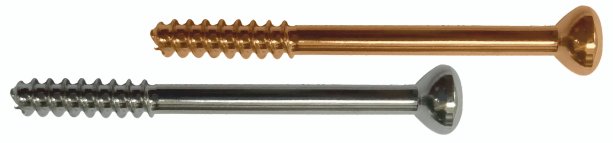

13. Cancellous Screws 16mm Thread Dia - 6.5mm
Tornillos para esponjosa de 16 mm de diámetro de rosca - 6,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 6.5mm |
| Drill for Threaded Hole | 3.2mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Shaft Diameter | 4.5mm |
| Drill Bit For Shaft | 4.5mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 609.30-Ti | 609.30 | 30mm |
| 609.35-Ti | 609.35 | 35mm |
| 609.40-Ti | 609.40 | 40mm |
| 609.45-Ti | 609.45 | 45mm |
| 609.50-Ti | 609.50 | 50mm |
| 609.55-Ti | 609.55 | 55mm |
| 609.60-Ti | 609.60 | 60mm |
| 609.65-Ti | 609.65 | 65mm |
| 609.70-Ti | 609.70 | 70mm |
| 609.75-Ti | 609.75 | 75mm |
| 609.80-Ti | 609.80 | 80mm |
| 609.85-Ti | 609.85 | 85mm |
| 609.90-Ti | 609.90 | 90mm |
| 609.95-Ti | 609.95 | 95mm |
| 609.100-Ti | 609.100 | 100mm |
| 609.105-Ti | 609.105 | 105mm |
| 609.105-Ti | 609.105 | 110mm |
14. Cancellous Screws 32mm Thread Dia - 6.5mm
Tornillos para esponjosa de 32 mm de diámetro de rosca - 6,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 6.5mm |
| Drill for Threaded Hole | 3.2mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Shaft Diameter | 4.5mm |
| Drill Bit For Shaft | 4.5mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 609.45-Ti | 609.45 | 45mm |
| 609.50-Ti | 609.50 | 50mm |
| 609.55-Ti | 609.55 | 55mm |
| 609.60-Ti | 609.60 | 60mm |
| 609.65-Ti | 609.65 | 65mm |
| 609.70-Ti | 609.70 | 70mm |
| 609.75-Ti | 609.75 | 75mm |
| 609.80-Ti | 609.80 | 80mm |
| 609.85-Ti | 609.85 | 85mm |
| 609.90-Ti | 609.90 | 90mm |
| 609.95-Ti | 609.95 | 95mm |
| 609.100-Ti | 609.100 | 100mm |
| 609.105-Ti | 609.105 | 105mm |
| 609.110-Ti | 609.110 | 110mm |
15. Cancellous Screws Full Thread Dia - 6.5mm
Tornillos para esponjosa Diámetro de rosca completa: 6,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 6.5mm |
| Drill for Threaded Hole | 3.2mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Drill Bit For Shaft | 4.5mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 611.25-Ti | 611.25 | 25mm |
| 611.30-Ti | 611.30 | 30mm |
| 611.35-Ti | 611.35 | 35mm |
| 611.40-Ti | 611.40 | 40mm |
| 611.45-Ti | 611.45 | 45mm |
| 611.50-Ti | 611.50 | 50mm |
| 611.55-Ti | 611.55 | 55mm |
| 611.60-Ti | 611.60 | 60mm |
| 611.65-Ti | 611.65 | 65mm |
| 611.70-Ti | 611.70 | 70mm |
| 611.75-Ti | 611.75 | 75mm |
| 611.80-Ti | 611.80 | 80mm |
| 611.85-Ti | 611.85 | 85mm |
| 611.90-Ti | 611.90 | 90mm |
| 611.95-Ti | 611.95 | 95mm |
| 611.100-Ti | 611.100 | 100mm |
| 611.105-Ti | 611.105 | 105mm |
| 611.110-Ti | 611.110 | 110mm |
16. Malleolar Screws Dia - 4.5mm
Tornillos maleolares de diámetro - 4,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill for Threaded Hole | 3.2mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Drill Bit For Shaft | 3.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 612.25-Ti | 612.25 | 25mm |
| 612.30-Ti | 612.30 | 30mm |
| 612.35-Ti | 612.35 | 35mm |
| 612.40-Ti | 612.40 | 40mm |
| 611.45-Ti | 611.45 | 45mm |
| 612.50-Ti | 612.50 | 50mm |
| 612.55-Ti | 612.55 | 55mm |
| 612.60-Ti | 612.60 | 60mm |
| 612.65-Ti | 612.65 | 65mm |
| 612.70-Ti | 612.70 | 70mm |
| 612.75-Ti | 612.75 | 75mm |
| 612.80-Ti | 612.80 | 80mm |
| 612.85-Ti | 612.85 | 85mm |
| 612.90-Ti | 612.90 | 90mm |
| 612.95-Ti | 612.95 | 95mm |
| 612.100-Ti | 612.100 | 100mm |
| 612.105-Ti | 612.105 | 105mm |
| 612.110-Ti | 612.110 | 110mm |
17. Washers For Cancellous Screws
Arandelas para tornillos de esponjosa
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 613.01-Ti | 613.01 | BIG |
| 613.02-Ti | 613.02 | SMALL |
18. Ashnis Screw
Tornillo Ashnis
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 614.65-Ti | 614.65 | 65mm |
| 614.70-Ti | 614.70 | 70mm |
| 614.75-Ti | 614.75 | 75mm |
| 614.80-Ti | 614.80 | 80mm |
| 614.85-Ti | 614.85 | 85mm |
| 614.90-Ti | 614.90 | 90mm |
| 614.95-Ti | 614.95 | 95mm |
| 614.100-Ti | 614.100 | 100mm |
| 614.105-Ti | 614.105 | 105mm |
| 614.110-Ti | 614.110 | 110mm |
19. Large Cannulated Cancellous Screws 16mm Thread Dia - 7.0mm
Tornillos canulados grandes para esponjosa de 16 mm de diámetro de rosca - 7,0 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 7.0mm |
| Drill for Threaded Hole | 4.5mm |
| Core Diameter | 4.5mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Shaft Diameter | 4.5mm |
| Cannulation | 2.1mm |
| Guide Wire | 2.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 615.30-Ti | 615.30 | 30mm |
| 615.35-Ti | 615.35 | 35mm |
| 615.40-Ti | 615.40 | 40mm |
| 615.45-Ti | 615.45 | 45mm |
| 615.50-Ti | 615.50 | 50mm |
| 615.55-Ti | 615.55 | 55mm |
| 615.60-Ti | 615.60 | 60mm |
| 615.65-Ti | 615.65 | 65mm |
| 615.70-Ti | 615.70 | 70mm |
| 615.75-Ti | 615.75 | 75mm |
| 615.80-Ti | 615.80 | 80mm |
| 615.85-Ti | 615.85 | 85mm |
| 615.90-Ti | 615.90 | 90mm |
| 615.95-Ti | 615.95 | 95mm |
| 615.100-Ti | 615.100 | 100mm |
| 615.105-Ti | 615.105 | 105mm |
| 615.110-Ti | 615.110 | 110mm |
| 615.115-Ti | 615.115 | 115mm |
| 615.120-Ti | 615.120 | 120mm |
| 615.125-Ti | 615.125 | 125mm |
| 615.130-Ti | 615.130 | 130mm |
20. Large Cannulated Cancellous Screws 32mm Thread Dia - 7.0mm
Tornillos canulados grandes para esponjosa de 32 mm de diámetro de rosca - 7,0 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 7.0mm |
| Drill for Threaded Hole | 4.5mm |
| Core Diameter | 4.5mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Shaft Diameter | 4.5mm |
| Cannulation | 2.1mm |
| Guide Wire | 2.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 616.30-Ti | 616.30 | 30mm |
| 616.35-Ti | 616.35 | 35mm |
| 616.40-Ti | 616.40 | 40mm |
| 616.45-Ti | 616.45 | 45mm |
| 616.50-Ti | 616.50 | 50mm |
| 616.55-Ti | 616.55 | 55mm |
| 616.60-Ti | 616.60 | 60mm |
| 616.65-Ti | 616.65 | 65mm |
| 616.70-Ti | 616.70 | 70mm |
| 616.75-Ti | 616.75 | 75mm |
| 616.80-Ti | 616.80 | 80mm |
| 616.85-Ti | 616.85 | 85mm |
| 616.90-Ti | 616.90 | 90mm |
| 616.95-Ti | 616.95 | 95mm |
| 616.100-Ti | 616.100 | 100mm |
| 616.105-Ti | 616.105 | 105mm |
| 616.110-Ti | 616.110 | 110mm |
| 616.115-Ti | 616.115 | 115mm |
| 616.120-Ti | 616.120 | 120mm |
| 616.125-Ti | 616.125 | 125mm |
| 616.130-Ti | 616.130 | 130mm |
21. Small Cannulated Screw Full Thread Dia - 3.5mm
Tornillo canulado pequeño Diámetro de rosca completa: 3,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.7mm |
| Core Diameter | 2.5mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Shaft Diameter | 2.5mm |
| Cannulation | 1.3mm |
| Guide Wire | 1.2mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 683.10-Ti | 683.10 | 10mm |
| 683.12-Ti | 683.12 | 12mm |
| 683.14-Ti | 683.14 | 14mm |
| 683.16-Ti | 683.16 | 16mm |
| 683.18-Ti | 683.18 | 18mm |
| 683.20-Ti | 683.20 | 20mm |
| 683.22-Ti | 683.22 | 22mm |
| 683.24-Ti | 683.24 | 24mm |
| 683.26-Ti | 683.26 | 26mm |
| 683.28-Ti | 683.28 | 28mm |
| 683.30-Ti | 683.30 | 30mm |
| 683.32-Ti | 683.32 | 32mm |
| 683.34-Ti | 683.34 | 34mm |
| 683.36-Ti | 683.36 | 36mm |
| 683.38-Ti | 683.38 | 38mm |
| 683.40-Ti | 683.40 | 40mm |
| 683.42-Ti | 683.42 | 42mm |
| 683.44-Ti | 683.44 | 44mm |
| 683.46-Ti | 683.46 | 46mm |
| 683.48-Ti | 683.48 | 48mm |
| 683.50-Ti | 683.50 | 50mm |
22. Small Cannulated Screw Short Thread Dia - 3.5mm
Tornillo canulado pequeño Diámetro de rosca corta - 3,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.7mm |
| Core Diameter | 2.5mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Shaft Diameter | 2.5mm |
| Cannulation | 1.3mm |
| Guide Wire | 1.2mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 684.10-Ti | 684.10 | 10mm |
| 684.12-Ti | 684.12 | 12mm |
| 684.14-Ti | 684.14 | 14mm |
| 684.16-Ti | 684.16 | 16mm |
| 684.18-Ti | 684.18 | 18mm |
| 684.20-Ti | 684.20 | 20mm |
| 684.22-Ti | 684.22 | 22mm |
| 684.24-Ti | 684.24 | 24mm |
| 684.26-Ti | 684.26 | 26mm |
| 684.28-Ti | 684.28 | 28mm |
| 684.30-Ti | 684.30 | 30mm |
| 684.32-Ti | 684.32 | 32mm |
| 684.34-Ti | 684.34 | 34mm |
| 684.36-Ti | 684.36 | 36mm |
| 684.38-Ti | 684.38 | 38mm |
| 684.40-Ti | 684.40 | 40mm |
| 684.42-Ti | 684.42 | 42mm |
| 684.44-Ti | 684.44 | 44mm |
| 684.46-Ti | 684.46 | 46mm |
| 684.48-Ti | 684.48 | 48mm |
| 684.50-Ti | 684.50 | 50mm |
23. Small Cannulated Screw Full Thread Dia 4.0mm
Tornillo canulado pequeño Rosca completa Diámetro 4,0 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.0mm |
| Core Diameter | 2.5mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Cannulation | 1.35mm |
| Guide Wire | 1.25mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 901.20-Ti | 901.20 | 20mm |
| 901.22-Ti | 901.22 | 22mm |
| 901.24-Ti | 901.24 | 24mm |
| 901.26-Ti | 901.26 | 26mm |
| 901.20-Ti | 901.20 | 20mm |
| 901.28-Ti | 901.28 | 28mm |
| 901.30-Ti | 901.30 | 30mm |
| 901.32-Ti | 901.32 | 32mm |
| 901.34-Ti | 901.34 | 34mm |
| 901.36-Ti | 901.36 | 36mm |
| 901.38-Ti | 901.38 | 38mm |
| 901.40-Ti | 901.40 | 40mm |
| 901.42-Ti | 901.42 | 42mm |
| 901.44-Ti | 901.44 | 44mm |
| 901.46-Ti | 901.46 | 46mm |
| 901.48-Ti | 901.48 | 48mm |
| 901.50-Ti | 901.50 | 50mm |
| 901.52-Ti | 901.52 | 52mm |
| 901.54-Ti | 901.54 | 54mm |
| 901.56-Ti | 901.56 | 56mm |
| 901.58-Ti | 901.58 | 58mm |
| 901.60-Ti | 901.60 | 60mm |
| 901.62-Ti | 901.62 | 62mm |
| 901.64-Ti | 901.64 | 64mm |
| 901.66-Ti | 901.66 | 66mm |
| 901.68-Ti | 901.68 | 68mm |
| 901.70-Ti | 901.70 | 70mm |
| 901.72-Ti | 901.72 | 72mm |
| 901.74-Ti | 901.74 | 74mm |
24. Small Cannulated Screw Short Thread Dia 4.0mm
Tornillo canulado pequeño Rosca corta de 4,0 mm de diámetro
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.0mm |
| Drill Bit For Threaded Hole | 2.7mm |
| Shaft Diameter | 2.7mm |
| Core Diameter | 2.5mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Cannulation | 1.35mm |
| Guide Wire | 1.25mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 902.48-Ti | 902.48 | 48mm |
| 902.50-Ti | 902.50 | 50mm |
| 902.52-Ti | 902.52 | 52mm |
| 902.54-Ti | 902.54 | 54mm |
| 902.56-Ti | 902.56 | 56mm |
| 902.58-Ti | 902.58 | 58mm |
| 902.60-Ti | 902.60 | 60mm |
| 902.62-Ti | 902.62 | 62mm |
| 902.64-Ti | 902.64 | 64mm |
| 902.66-Ti | 902.66 | 66mm |
| 902.68-Ti | 902.68 | 68mm |
| 902.70-Ti | 902.70 | 70mm |
| 902.72-Ti | 902.72 | 72mm |
| 902.74-Ti | 902.74 | 74mm |
25. Locking Bolts Dia - 3.4mm
Pernos de bloqueo de diámetro - 3,4 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.4mm |
| Fully Threaded | |
| Drill Bit For Threaded Hole | 2.7mm |
| Core Diameter | 2.7mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 903.20-Ti | 903.20 | 20mm |
| 903.22-Ti | 903.22 | 22mm |
| 903.24-Ti | 903.24 | 24mm |
| 903.26-Ti | 903.26 | 26mm |
| 903.20-Ti | 903.20 | 20mm |
| 903.28-Ti | 903.28 | 28mm |
| 903.30-Ti | 903.30 | 30mm |
| 903.32-Ti | 903.32 | 32mm |
| 903.34-Ti | 903.34 | 34mm |
| 903.36-Ti | 903.36 | 36mm |
| 903.38-Ti | 903.38 | 38mm |
| 903.40-Ti | 902.40 | 40mm |
| 903.42-Ti | 903.42 | 42mm |
| 903.44-Ti | 903.44 | 44mm |
| 903.46-Ti | 903.46 | 46mm |
| 903.48-Ti | 903.48 | 48mm |
| 903.50-Ti | 903.50 | 50mm |
| 903.52-Ti | 903.52 | 52mm |
| 903.54-Ti | 903.54 | 54mm |
| 903.56-Ti | 903.56 | 56mm |
| 903.58-Ti | 903.58 | 58mm |
| 903.60-Ti | 903.60 | 60mm |
26. Locking Bolts Dia - 3.9mm
Pernos de bloqueo de diámetro - 3,9 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.9mm |
| Fully Threaded | |
| Drill Bit For Threaded Hole | 3.2mm |
| Core Diameter | 3.3mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 904.20-Ti | 904.20 | 20mm |
| 904.22-Ti | 904.22 | 22mm |
| 904.24-Ti | 904.24 | 24mm |
| 904.26-Ti | 904.26 | 26mm |
| 904.20-Ti | 904.20 | 20mm |
| 904.28-Ti | 904.28 | 28mm |
| 904.30-Ti | 904.30 | 30mm |
| 904.32-Ti | 904.32 | 32mm |
| 904.34-Ti | 904.34 | 34mm |
| 904.36-Ti | 904.36 | 36mm |
| 904.38-Ti | 904.38 | 38mm |
| 904.40-Ti | 904.40 | 40mm |
| 904.42-Ti | 904.42 | 42mm |
| 904.44-Ti | 904.44 | 44mm |
| 904.46-Ti | 904.46 | 46mm |
| 904.48-Ti | 904.48 | 48mm |
| 904.50-Ti | 904.50 | 50mm |
| 904.52-Ti | 904.52 | 52mm |
| 904.54-Ti | 904.54 | 54mm |
| 904.56-Ti | 904.56 | 56mm |
| 904.58-Ti | 904.58 | 58mm |
| 904.60-Ti | 904.60 | 60mm |
27. Locking Bolts Dia - 4.9mm
Pernos de bloqueo de diámetro - 4,9 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.9mm |
| Fully Threaded | |
| Drill Bit For Threaded Hole | 4.0mm |
| Core Diameter | 4.3mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 410.50-Ti | 410.50 | 50mm |
| 410.52-Ti | 410.52 | 52mm |
| 410.54-Ti | 410.54 | 54mm |
| 410.56-Ti | 410.56 | 56mm |
| 410.58-Ti | 410.58 | 58mm |
| 410.60-Ti | 410.60 | 60mm |
| 410.65-Ti | 410.65 | 65mm |
| 410.70-Ti | 410.70 | 70mm |
| 410.75-Ti | 410.75 | 75mm |
| 410.80-Ti | 410.80 | 80mm |
| 410.85-Ti | 410.85 | 85mm |
| 410.90-Ti | 410.90 | 90mm |
| 410.95-Ti | 410.95 | 95mm |
| 410.100-Ti | 410.100 | 100mm |
| 410.105-Ti | 410.105 | 105mm |
| 410.110-Ti | 410.110 | 110mm |
| 415.115-Ti | 415.115 | 115mm |
| 420.120-Ti | 420.120 | 120mm |

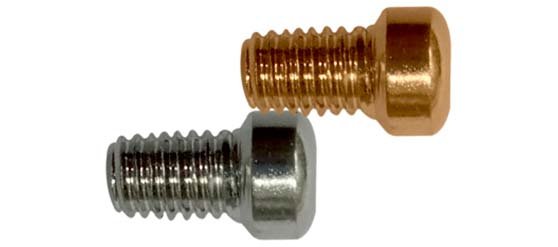

28. Plug Screw for Interlocking I.M.L. Nails
Tornillo de tapón para enclavamiento I.M.L. Clavos
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 905.08-Ti | 905.08 | 08mm |
| 905.09-Ti | 905.09 | 09mm |
| 905.10-Ti | 905.10 | 10mm |
| 905.11-Ti | 905.11 | 11mm |
| 905.12-Ti | 905.12 | 12mm |
| 905.13-Ti | 905.13 | 13mm |

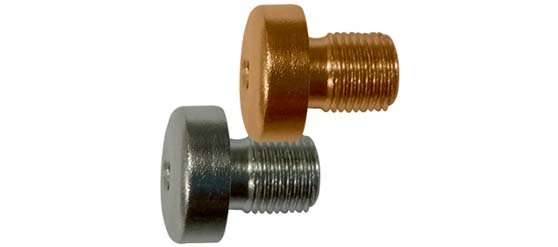

End Cap For Unreamed Humeral Nails
Tapa de extremo para clavos humerales sin fresar
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 906.01-Ti | 906.01 | 0mm |
| 906.02-Ti | 906.02 | 05mm |
| 906.03-Ti | 906.03 | 10mm |
| 906.04-Ti | 906.04 | 15mm |

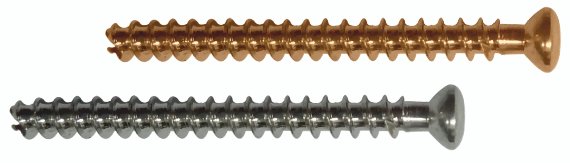

29. Small Cannulated Screw Full Thread Dia - 4.5mm
Tornillo canulado Diámetro de rosca completa: 4,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill Bit For Threaded Hole | 3.2mm |
| Drill Bit For Gliding Hole | 4.5mm |
| Core Diameter | 2.7mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 6.5mm |
| Cannulation | 1.75mm |
| Guide Wire | 1.6mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 681.20-Ti | 681.20 | 20mm |
| 681.22-Ti | 681.22 | 22mm |
| 681.24-Ti | 681.24 | 24mm |
| 681.26-Ti | 681.26 | 26mm |
| 681.28-Ti | 681.28 | 28mm |
| 681.30-Ti | 681.30 | 30mm |
| 681.32-Ti | 681.32 | 32mm |
| 681.34-Ti | 681.34 | 34mm |
| 681.36-Ti | 681.36 | 36mm |
| 681.38-Ti | 681.38 | 38mm |
| 681.40-Ti | 681.40 | 40mm |
| 681.42-Ti | 681.42 | 42mm |
| 681.44-Ti | 681.44 | 44mm |
| 681.46-Ti | 681.46 | 46mm |
| 681.48-Ti | 681.48 | 48mm |
| 681.50-Ti | 681.50 | 50mm |
| 681.52-Ti | 681.52 | 52mm |
| 681.54-Ti | 681.54 | 54mm |
| 681.56-Ti | 681.56 | 56mm |
| 681.58-Ti | 681.58 | 58mm |
| 681.60-Ti | 681.60 | 60mm |
| 681.62-Ti | 681.62 | 62mm |
| 681.64-Ti | 681.64 | 64mm |
| 681.66-Ti | 681.66 | 66mm |
| 681.68-Ti | 681.68 | 68mm |
| 681.70-Ti | 681.70 | 70mm |
| 681.72-Ti | 681.72 | 72mm |
| 681.74-Ti | 681.74 | 74mm |
30. Small Cannulated Screw Short Thread Dia - 4.5mm
Tornillo canulado Diámetro de rosca corta - 4,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill Bit For Threaded Hole | 3.2mm |
| Shaft Diameter | 3.1mm |
| Core Diameter | 2.7mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 6.5mm |
| Cannulation | 1.75mm |
| Guide Wire | 1.6mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 682.20-Ti | 682.20 | 20mm |
| 682.22-Ti | 682.22 | 22mm |
| 682.24-Ti | 682.24 | 24mm |
| 682.26-Ti | 682.26 | 26mm |
| 682.28-Ti | 682.28 | 28mm |
| 682.30-Ti | 682.30 | 30mm |
| 682.32-Ti | 682.32 | 32mm |
| 682.34-Ti | 682.34 | 34mm |
| 682.36-Ti | 682.36 | 36mm |
| 682.38-Ti | 682.38 | 38mm |
| 682.40-Ti | 682.40 | 40mm |
| 682.42-Ti | 682.42 | 42mm |
| 682.44-Ti | 682.44 | 44mm |
| 682.46-Ti | 682.46 | 46mm |
| 682.48-Ti | 682.48 | 48mm |
| 682.50-Ti | 682.50 | 50mm |
| 682.52-Ti | 682.52 | 52mm |
| 682.54-Ti | 682.54 | 54mm |
| 682.56-Ti | 682.56 | 56mm |
| 682.58-Ti | 682.58 | 58mm |
| 682.60-Ti | 682.60 | 60mm |
| 682.62-Ti | 682.62 | 62mm |
| 682.64-Ti | 682.64 | 64mm |
| 682.66-Ti | 682.66 | 66mm |
| 682.68-Ti | 682.68 | 68mm |
| 682.70-Ti | 682.70 | 70mm |
| 682.72-Ti | 682.72 | 72mm |
| 682.74-Ti | 682.74 | 74mm |
31. Shaft Screws For LC-DCP Dia - 3.5mm
Tornillos de eje para LC-DCP Dia - 3,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill Bit For Threaded Hole | 2.5mm |
| Drill Bit For Gliding Hole | 3.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 6.0mm |
| Shaft Diameter | 3.5mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 685.20-Ti | 685.20 | 20mm |
| 685.22-Ti | 685.22 | 22mm |
| 685.24-Ti | 685.24 | 24mm |
| 685.26-Ti | 685.26 | 26mm |
| 685.28-Ti | 685.28 | 28mm |
| 685.30-Ti | 685.30 | 30mm |
| 685.32-Ti | 685.32 | 32mm |
| 685.34-Ti | 685.34 | 34mm |
| 685.36-Ti | 685.36 | 36mm |
| 685.38-Ti | 685.38 | 38mm |
| 685.40-Ti | 685.40 | 40mm |
| 685.45-Ti | 685.45 | 45mm |
| 685.50-Ti | 685.50 | 50mm |
| 685.55-Ti | 685.55 | 55mm |
| 685.60-Ti | 685.60 | 60mm |
| 685.64-Ti | 685.64 | 64mm |
| 685.68-Ti | 685.68 | 68mm |
| 685.72-Ti | 685.72 | 72mm |
32. Shaft Screws For LC-DCP Dia - 4.5mm
Tornillos de eje para LC-DCP Dia - 4,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill Bit For Threaded Hole | 3.2mm |
| Drill Bit For Gliding Hole | 4.5mm |
| Shaft Diameter | 4.5mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Thread Length | 13mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 686.22-Ti | 686.22 | 22mm |
| 686.24-Ti | 686.24 | 24mm |
| 686.26-Ti | 686.26 | 26mm |
| 686.28-Ti | 686.28 | 28mm |
| 686.30-Ti | 686.30 | 30mm |
| 686.32-Ti | 686.32 | 32mm |
| 686.34-Ti | 686.34 | 34mm |
| 686.36-Ti | 686.36 | 36mm |
| 686.38-Ti | 686.38 | 38mm |
| 686.40-Ti | 686.40 | 40mm |
| 686.45-Ti | 686.45 | 45mm |
| 686.50-Ti | 686.50 | 50mm |
| 686.52-Ti | 686.52 | 52mm |
| 686.54-Ti | 686.54 | 54mm |
| 686.56-Ti | 686.56 | 56mm |
| 686.58-Ti | 686.58 | 58mm |
| 686.60-Ti | 686.60 | 60mm |
| 686.64-Ti | 686.64 | 64mm |
| 686.68-Ti | 686.68 | 68mm |
| 686.72-Ti | 686.72 | 72mm |
| 686.76-Ti | 686.76 | 76mm |
| 686.80-Ti | 686.80 | 80mm |
| 686.85-Ti | 686.85 | 85mm |
| 686.90-Ti | 686.90 | 90mm |
| 686.95-Ti | 686.95 | 95mm |
| 686.100-Ti | 686.100 | 100mm |
33. Cancellous Traction Screws 32mm Thread Dia - 6.5mm
Tornillos de tracción para esponjosa de 32 mm de diámetro de rosca - 6,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 6.5mm |
| Drill Bit For Threaded Hole | 3.2mm |
| Drill Bit For Shaft | 4.5mm |
| Shaft Diameter | 4.5mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 907.60-Ti | 907.60 | 60mm |
| 907.65-Ti | 907.65 | 65mm |
| 907.70-Ti | 907.70 | 70mm |
| 907.75-Ti | 907.75 | 75mm |
| 907.80-Ti | 907.80 | 80mm |
| 907.85-Ti | 907.85 | 85mm |
| 907.90-Ti | 907.90 | 90mm |
| 907.95-Ti | 907.95 | 95mm |
| 907.100-Ti | 907.100 | 100mm |
| 907.105-Ti | 907.105 | 105mm |
| 907.110-Ti | 907.110 | 110mm |
| 907.115-Ti | 907.115 | 115mm |
| 907.120-Ti | 907.120 | 120mm |
| 907.125-Ti | 907.125 | 125mm |
| 907.130-Ti | 907.130 | 130mm |
| 907.135-Ti | 907.135 | 135mm |
34. Steffee Screw Dia - 4.5mm
Diámetro del tornillo Steffee - 4,5 mm
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 423.24-Ti | 423.24 | 24mm |
| 423.26-Ti | 423.26 | 26mm |
| 423.28-Ti | 423.28 | 28mm |
| 423.30-Ti | 423.30 | 30mm |
| 423.32-Ti | 423.32 | 32mm |
| 423.34-Ti | 423.34 | 34mm |
| 423.36-Ti | 423.36 | 36mm |
| 423.38-Ti | 423.38 | 38mm |
| 423.40-Ti | 423.40 | 40mm |
| 423.42-Ti | 423.42 | 42mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 423.44-Ti | 423.44 | 44mm |
| 423.46-Ti | 423.46 | 46mm |
| 423.48-Ti | 423.48 | 48mm |
| 423.50-Ti | 423.50 | 50mm |
| 423.52-Ti | 423.52 | 52mm |
| 423.54-Ti | 423.54 | 54mm |
| 423.56-Ti | 423.56 | 56mm |
| 423.58-Ti | 423.58 | 58mm |
| 423.60-Ti | 423.60 | 60mm |
35. Steffee Screw Dia - 5.0mm
Diámetro del tornillo Steffee - 5,0 mm
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 424.24-Ti | 424.24 | 24mm |
| 424.26-Ti | 424.26 | 26mm |
| 424.28-Ti | 424.28 | 28mm |
| 424.30-Ti | 424.30 | 30mm |
| 424.32-Ti | 424.32 | 32mm |
| 424.34-Ti | 424.34 | 34mm |
| 424.36-Ti | 424.36 | 36mm |
| 424.38-Ti | 424.38 | 38mm |
| 424.40-Ti | 424.40 | 40mm |
| 424.42-Ti | 424.42 | 42mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 424.44-Ti | 424.44 | 44mm |
| 424.46-Ti | 424.46 | 46mm |
| 424.48-Ti | 424.48 | 48mm |
| 424.50-Ti | 424.50 | 50mm |
| 424.52-Ti | 424.52 | 52mm |
| 424.54-Ti | 424.54 | 54mm |
| 424.56-Ti | 424.56 | 56mm |
| 424.58-Ti | 424.58 | 58mm |
| 424.60-Ti | 424.60 | 60mm |

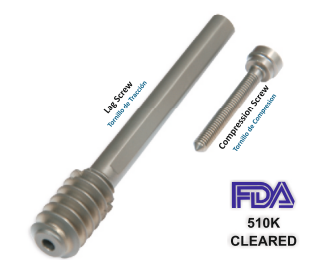

36. Hip Screw with Compression Screw Dia - 12.5mm
Tornillo de cadera con diámetro de tornillo de compresión - 12,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 12.5mm |
| Thread Length | 22.0mm |
| Shaft Diameter | 8.0mm |
DHS/DCS Compression Screw
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Ref. No. | 644A |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 644.050-Ti | 644.050 | 50mm |
| 644.055-Ti | 644.055 | 55mm |
| 644.060-Ti | 644.060 | 60mm |
| 644.065-Ti | 644.065 | 65mm |
| 644.070-Ti | 644.070 | 70mm |
| 644.075-Ti | 644.075 | 75mm |
| 644.080-Ti | 644.080 | 80mm |
| 644.085-Ti | 644.085 | 85mm |
| 644.090-Ti | 644.090 | 90mm |
| 644.095-Ti | 644.095 | 95mm |
| 644.100-Ti | 644.100 | 100mm |
| 644.105-Ti | 644.105 | 105mm |
| 644.110-Ti | 644.110 | 110mm |
| 644.115-Ti | 644.115 | 115mm |
| 644.120-Ti | 644.120 | 120mm |
37. Locking Head Screw, Dia - 2.4mm - Self Tapping
Tornillo de cabeza de bloqueo, diámetro - 2.4 mm - autorroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP570006 | FF-006 | 6mm |
| LCP570008 | FF-008 | 8mm |
| LCP570010 | FF-010 | 10mm |
| LCP570012 | FF-012 | 12mm |
| LCP570014 | FF-014 | 14mm |
| LCP570016 | FF-016 | 16mm |
| LCP570018 | FF-018 | 18mm |
| LCP570020 | FF-020 | 20mm |
| LCP570022 | FF-022 | 22mm |
| LCP570024 | FF-024 | 24mm |
| LCP570026 | FF-026 | 26mm |
| LCP570028 | FF-028 | 28mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP570030 | FF-030 | 30mm |
| LCP570032 | FF-032 | 32mm |
| LCP570034 | FF-034 | 34mm |
| LCP570036 | FF-036 | 36mm |
| LCP570038 | FF-038 | 38mm |
| LCP570040 | FF-040 | 40mm |
| LCP570042 | FF-042 | 42mm |
| LCP570044 | FF-044 | 44mm |
| LCP570046 | FF-046 | 46mm |
| LCP570048 | FF-048 | 48mm |
| LCP570050 | FF-050 | 50mm |
38. Locking Head Screw, Dia - 2.7mm - Self Tapping
Tornillo con Cabeza de Bloqueo, Dia - 2.7 mm - Autoroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP580006 | DD-006 | 6mm |
| LCP580008 | DD-008 | 8mm |
| LCP580010 | DD-010 | 10mm |
| LCP580012 | DD-012 | 12mm |
| LCP580014 | DD-014 | 14mm |
| LCP580016 | DD-016 | 16mm |
| LCP580018 | DD-018 | 18mm |
| LCP580020 | DD-020 | 20mm |
| LCP580022 | DD-022 | 22mm |
| LCP580024 | DD-024 | 24mm |
| LCP580026 | DD-026 | 26mm |
| LCP580028 | DD-028 | 28mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP580030 | DD-030 | 30mm |
| LCP580032 | DD-032 | 32mm |
| LCP580034 | DD-034 | 34mm |
| LCP580036 | DD-036 | 36mm |
| LCP580038 | DD-038 | 38mm |
| LCP580040 | DD-040 | 40mm |
| LCP580042 | DD-042 | 42mm |
| LCP580044 | DD-044 | 44mm |
| LCP580046 | DD-046 | 46mm |
| LCP580048 | DD-048 | 48mm |
| LCP580050 | DD-050 | 50mm |
39. Cortical Screw, Dia - 3.5mm - Self Tapping
Tornillo Cortical, Dia - 3.5 mm - Autoroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 604.14ST-Ti | 604.14ST | 14mm |
| 604.16ST-Ti | 604.16ST | 16mm |
| 604.18ST-Ti | 604.18ST | 18mm |
| 604.20ST-Ti | 604.20ST | 20mm |
| 604.22ST-Ti | 604.22ST | 22mm |
| 604.24ST-Ti | 604.24ST | 24mm |
| 604.26ST-Ti | 604.26ST | 26mm |
| 604.28ST-Ti | 604.28ST | 28mm |
| 604.30ST-Ti | 604.30ST | 30mm |
| 604.32ST-Ti | 604.32ST | 32mm |
| 604.34ST-Ti | 604.34ST | 34mm |
| 604.36ST-Ti | 604.36ST | 36mm |
| 604.38ST-Ti | 604.38ST | 38mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 604.40ST-Ti | 604.40ST | 40mm |
| 604.45ST-Ti | 604.45ST | 45mm |
| 604.50ST-Ti | 604.50ST | 50mm |
| 604.55ST-Ti | 604.55ST | 55mm |
| 604.60ST-Ti | 604.60ST | 60mm |
| 604.65ST-Ti | 604.65ST | 65mm |
| 604.70ST-Ti | 604.70ST | 70mm |
| 604.75ST-Ti | 604.75ST | 75mm |
| 604.80ST-Ti | 604.80ST | 80mm |
40. Cortical Screw, Dia - 4.5mm - Self Tapping
Tornillo Cortical, Dia - 4.5 mm - Autoroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 605.22ST-Ti | 605.225T | 22mm |
| 605.24ST-Ti | 605.24ST | 24mm |
| 605.26ST-Ti | 605.26ST | 26mm |
| 605.28ST-Ti | 605.285T | 28mm |
| 605.30ST-Ti | 605.30ST | 30mm |
| 605.32ST-Ti | 605.325T | 32mm |
| 605.34ST-Ti | 605.34ST | 34mm |
| 605.36ST-Ti | 605.36ST | 36mm |
| 605.38ST-Ti | 605.38ST | 38mm |
| 605.40ST-Ti | 605.405T | 40mm |
| 605.42ST-Ti | 605.42ST | 42mm |
| 605.44ST-Ti | 605.44ST | 44mm |
| 605.46ST-Ti | 605.46ST | 46mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 605.48ST-Ti | 605.48ST | 48mm |
| 605.50ST-Ti | 605.50ST | 50mm |
| 605.52ST-Ti | 605.52ST | 52mm |
| 605.54ST-Ti | 605.54ST | 54mm |
| 605.56ST-Ti | 605.56ST | 56mm |
| 605.58ST-Ti | 605.58ST | 58mm |
| 605.60ST-Ti | 605.60ST | 60mm |
| 605.62ST-Ti | 605.62ST | 62mm |
| 605.64ST-Ti | 605.645T | 64mm |
| 605.66ST-Ti | 605.66ST | 66mm |
| 605.68ST-Ti | 605.68ST | 68mm |
| 605.70ST-Ti | 605.70ST | 70mm |
41. Locking Head Screw, Dia - 3.5mm - Self Tapping
Tornillo con Cabeza de Bloqueo, Dia - 3.5 mm - Autoroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP451010 | 00-010 | 10mm |
| LCP451012 | 00-012 | 12mm |
| LCP451014 | 00-014 | 14mm |
| LCP451016 | 00-016 | 16mm |
| LCP451018 | 00-018 | 18mm |
| LCP451020 | 00-020 | 20mm |
| LCP451022 | 00-022 | 22mm |
| LCP451024 | 00-024 | 24mm |
| LCP451026 | 00-026 | 26mm |
| LCP451028 | 00-028 | 28mm |
| LCP451030 | 00-030 | 30mm |
| LCP451032 | 00-032 | 32mm |
| LCP451034 | 00-034 | 34mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP451034 | 00-034 | 34mm |
| LCP451036 | 00-036 | 36mm |
| LCP451038 | 00-038 | 38mm |
| LCP451040 | 00-040 | 40mm |
| LCP451045 | 00-045 | 45mm |
| LCP451050 | 00-050 | 50mm |
| LCP451055 | 00-055 | 55mm |
| LCP451060 | 00-060 | 60mm |
| LCP451065 | 00-065 | 65mm |
| LCP451070 | 00-070 | 70mm |
| LCP451075 | 00-075 | 75mm |
| LCP451080 | 00-080 | 80mm |
42. Locking Head Screw, Dia - 5.0mm - Self Tapping
Tornillo con Cabeza de Bloqueo, Dia - 5.0 mm - Autoroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP552014 | PP-014 | 14mm |
| LCP552016 | PP-016 | 16mm |
| LCP552018 | PP-018 | 18mm |
| LCP552020 | PP-020 | 20mm |
| LCP552022 | PP-022 | 22mm |
| LCP552024 | PP-024 | 24mm |
| LCP552026 | PP-026 | 26mm |
| LCP552028 | PP-028 | 28mm |
| LCP552030 | PP-030 | 30mm |
| LCP552032 | PP-032 | 32mm |
| LCP552034 | PP-034 | 34mm |
| LCP552036 | PP-036 | 36mm |
| LCP552038 | PP-038 | 38mm |
| LCP552040 | PP-040 | 40mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP552042 | PP-042 | 42mm |
| LCP552044 | PP-044 | 44mm |
| LCP552046 | PP-046 | 46mm |
| LCP552048 | PP-048 | 48mm |
| LCP552050 | PP-050 | 50mm |
| LCP552055 | PP-055 | 55mm |
| LCP552060 | PP-060 | 60mm |
| LCP552065 | PP-065 | 65mm |
| LCP552070 | PP-070 | 70mm |
| LCP552075 | PP-075 | 75mm |
| LCP552080 | PP-080 | 80mm |
| LCP552085 | PP-085 | 85mm |
| LCP552090 | PP-090 | 90mm |
43. Locking Head Cancellous Screw Dia - 5.0mm "16mm Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca 16 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP501630 | 5016-30 | 30mm |
| LCP501635 | 5016-35 | 35mm |
| LCP501640 | 5016-40 | 40mm |
| LCP501645 | 5016-45 | 45mm |
| LCP501650 | 5016-50 | 50mm |
| LCP501655 | 5016-55 | 55mm |
| LCP501660 | 5016-60 | 60mm |
| LCP501665 | 5016-65 | 65mm |
| LCP501670 | 5016-70 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP501675 | 5016-75 | 75mm |
| LCP501680 | 5016-80 | 80mm |
| LCP501685 | 5016-85 | 85mm |
| LCP501690 | 5016-90 | 90mm |
| LCP501695 | 5016-95 | 95mm |
| LCP5016100 | 5016-100 | 100mm |
| LCP5016105 | 5016-105 | 105mm |
| LCP5016110 | 5016-110 | 110mm |
44. Locking Head Cancellous Screw Dia - 5.0mm "32mm Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca 32 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP503240 | 5032-40 | 40mm |
| LCP503245 | 5032-45 | 45mm |
| LCP503250 | 5032-50 | 50mm |
| LCP503255 | 5032-55 | 55mm |
| LCP503260 | 5032-60 | 60mm |
| LCP503265 | 5032-65 | 65mm |
| LCP503270 | 5032-70 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP503275 | 5032-75 | 75mm |
| LCP503280 | 5032-80 | 80mm |
| LCP503285 | 5032-85 | 85mm |
| LCP503290 | 5032-90 | 90mm |
| LCP503295 | 5032-95 | 95mm |
| LCP5032100 | 5032-100 | 100mm |
| LCP5032105 | 5032-105 | 105mm |
| LCP5032110 | 5032-110 | 110mm |
45. Locking Head Cancellous Screw Dia - 5.0mm "Full Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP500025 | 5000-25 | 25mm |
| LCP500030 | 5000-30 | 30mm |
| LCP500035 | 5000-35 | 35mm |
| LCP500040 | 5000-40 | 40mm |
| LCP500045 | 5000-45 | 45mm |
| LCP500050 | 5000-50 | 50mm |
| LCP500055 | 5000-55 | 55mm |
| LCP500060 | 5000-60 | 60mm |
| LCP500065 | 5000-65 | 65mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP500070 | 5000-70 | 70mm |
| LCP500075 | 5000-75 | 75mm |
| LCP500080 | 5000-80 | 80mm |
| LCP500085 | 5000-85 | 85mm |
| LCP500090 | 5000-90 | 90mm |
| LCP500095 | 5000-95 | 95mm |
| LCP5000100 | 5000-100 | 100mm |
| LCP5000105 | 5000-105 | 105mm |
| LCP5000110 | 5000-110 | 110mm |
46. Locking Head Screw Cancellous, Dia - 6.5mm "16mm Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 6.5 mm "Rosca 16 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP651630 | 6516-30 | 30mm |
| LCP651635 | 6516-35 | 35mm |
| LCP651640 | 6516-40 | 40mm |
| LCP651645 | 6516-45 | 45mm |
| LCP651650 | 6516-50 | 50mm |
| LCP651655 | 6516-55 | 55mm |
| LCP651660 | 6516-60 | 60mm |
| LCP651665 | 6516-65 | 65mm |
| LCP651670 | 6516-70 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP651675 | 6516-75 | 75mm |
| LCP651680 | 6516-80 | 80mm |
| LCP651685 | 6516-85 | 85mm |
| LCP651690 | 6516-90 | 90mm |
| LCP651695 | 6516-95 | 95mm |
| LCP6516100 | 6516-100 | 100mm |
| LCP6516105 | 6516-105 | 105mm |
| LCP6516110 | 6516-110 | 110mm |
47. Locking Head Cancellous Screw Dia - 6.5mm "32mm Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 6.5 mm "Rosca 32 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP653240 | 6532-40 | 40mm |
| LCP653245 | 6532-45 | 45mm |
| LCP653250 | 6532-50 | 50mm |
| LCP653255 | 6532-55 | 55mm |
| LCP653260 | 6532-60 | 60mm |
| LCP653265 | 6532-65 | 65mm |
| LCP653270 | 6532-70 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP653275 | 6532-75 | 75mm |
| LCP653280 | 6532-80 | 80mm |
| LCP653285 | 6532-85 | 85mm |
| LCP653290 | 6532-90 | 90mm |
| LCP653295 | 6532-95 | 95mm |
| LCP6532100 | 6532-100 | 100mm |
| LCP6532105 | 6532-105 | 105mm |
| LCP6532110 | 6532-110 | 110mm |
48. Locking Head Cancellous Screw Dia - 6.5mm "Full Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 6.5 mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP650025 | 6500-25 | 25mm |
| LCP650030 | 6500-30 | 30mm |
| LCP650035 | 6500-35 | 35mm |
| LCP650040 | 6500-40 | 40mm |
| LCP650045 | 6500-45 | 45mm |
| LCP650050 | 6500-50 | 50mm |
| LCP650055 | 6500-55 | 55mm |
| LCP650060 | 6500-60 | 60mm |
| LCP650065 | 6500-65 | 65mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP650070 | 6500-70 | 70mm |
| LCP650075 | 6500-75 | 75mm |
| LCP650080 | 6500-80 | 80mm |
| LCP650085 | 6500-85 | 85mm |
| LCP650090 | 6500-90 | 90mm |
| LCP650095 | 6500-95 | 95mm |
| LCP6500100 | 6500-100 | 100mm |
| LCP6500105 | 6500-105 | 105mm |
| LCP6500110 | 6500-110 | 110mm |
49. Locking Head Cancellous Screw Dia - 3.5mm "Full Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 3.5 mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP-35F-014 | 35F-014 | 14mm |
| LCP-35F-016 | 35F-016 | 16mm |
| LCP-35F-018 | 35F-018 | 18mm |
| LCP-35F-020 | 35F-020 | 20mm |
| LCP-35F-022 | 35F-022 | 22mm |
| LCP-35F-024 | 35F-024 | 24mm |
| LCP-35F-026 | 35F-026 | 26mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP-35F-028 | 35F-028 | 28mm |
| LCP-35F-030 | 35F-030 | 30mm |
| LCP-35F-035 | 35F-035 | 35mm |
| LCP-35F-040 | 35F-040 | 40mm |
| LCP-35F-045 | 35F-045 | 45mm |
| LCP-35F-050 | 35F-050 | 50mm |
| LCP-35F-055 | 35F-055 | 55mm |
| LCP-35F-060 | 35F-060 | 60mm |
50. Locking Head Cancellous Screw Dia - 3.5mm "Short Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 3.5 mm "Rosca Corta"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP-355-014 | 355-014 | 14mm |
| LCP-355-016 | 355-016 | 16mm |
| LCP-355-018 | 355-018 | 18mm |
| LCP-355-020 | 355-020 | 20mm |
| LCP-355-022 | 355-022 | 22mm |
| LCP-355-024 | 355-024 | 24mm |
| LCP-355-026 | 355-026 | 26mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP-355-028 | 355-028 | 28mm |
| LCP-355-030 | 355-030 | 30mm |
| LCP-355-035 | 355-035 | 35mm |
| LCP-355-040 | 355-040 | 40mm |
| LCP-355-045 | 355-045 | 45mm |
| LCP-355-050 | 355-050 | 50mm |
| LCP-355-055 | 355-055 | 55mm |
| LCP-355-060 | 355-060 | 60mm |
51. Locking Head Cannulated Cancellous Screw Dia - 5.0mm "16mm Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca 16mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP511630 | 5116-30 | 30mm |
| LCP511635 | 5116-35 | 35mm |
| LCP511640 | 5116-40 | 40mm |
| LCP511645 | 5116-45 | 45mm |
| LCP511650 | 5116-50 | 50mm |
| LCP511655 | 5116-55 | 55mm |
| LCP511660 | 5116-60 | 60mm |
| LCP511665 | 5116-65 | 65mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP511670 | 5116-70 | 70mm |
| LCP511675 | 5116-75 | 75mm |
| LCP511680 | 5116-80 | 80mm |
| LCP511685 | 5116-85 | 85mm |
| LCP511690 | 5116-90 | 90mm |
| LCP511695 | 5116-95 | 95mm |
| LCP5116100 | 5116-100 | 100mm |
| LCP5116105 | 5116-105 | 105mm |
| LCP5116110 | 5116-110 | 110mm |
52. Locking Head Cannulated Cancellous Screw Dia - 5.0mm "32mm Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca 32mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP513240 | 5132-40 | 40mm |
| LCP513245 | 5132-45 | 45mm |
| LCP513250 | 5132-50 | 50mm |
| LCP513255 | 5132-55 | 55mm |
| LCP513260 | 5132-60 | 60mm |
| LCP513265 | 5132-65 | 65mm |
| LCP513270 | 5132-70 | 70mm |
| LCP513275 | 5132-75 | 75mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP513280 | 5132-80 | 80mm |
| LCP513285 | 5132-85 | 85mm |
| LCP513290 | 5132-90 | 90mm |
| LCP513295 | 5132-95 | 95mm |
| LCP5132100 | 5132-100 | 100mm |
| LCP5132105 | 5132-105 | 105mm |
| LCP5132110 | 5132-110 | 110mm |
53. Locking Head Cannulated Cancellous Screw Dia - 5.0mm "Full Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP510025 | 5100-25 | 25mm |
| LCP510030 | 5100-30 | 30mm |
| LCP510035 | 5100-35 | 35mm |
| LCP510040 | 5100-40 | 40mm |
| LCP510045 | 5100-45 | 45mm |
| LCP510050 | 5100-50 | 50mm |
| LCP510055 | 5100-55 | 55mm |
| LCP510060 | 5100-60 | 60mm |
| LCP510065 | 5100-65 | 65mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP510070 | 5100-70 | 70mm |
| LCP510075 | 5100-75 | 75mm |
| LCP510080 | 5100-80 | 80mm |
| LCP510085 | 5100-85 | 85mm |
| LCP510090 | 5100-90 | 90mm |
| LCP510095 | 5100-95 | 95mm |
| LCP5100100 | 5100-100 | 100mm |
| LCP5100105 | 5100-105 | 105mm |
| LCP5100110 | 5100-110 | 110mm |
54. Locking Head Cannulated Cancellous Screw 3.5 mm "Full Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 3.5mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCCS-35F-014 | LC683-14 | 14mm |
| LCCS-35F-016 | LC683-16 | 16mm |
| LCCS-35F-018 | LC683-18 | 18mm |
| LCCS-35F-020 | LC683-20 | 20mm |
| LCCS-35F-022 | LC683-22 | 22mm |
| LCCS-35F-024 | LC683-24 | 24mm |
| LCCS-35F-026 | LC683-26 | 26mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCCS-35F-028 | LC683-28 | 28mm |
| LCCS-35F-030 | LC683-30 | 30mm |
| LCCS-35F-035 | LC683-35 | 35mm |
| LCCS-35F-040 | LC683-40 | 40mm |
| LCCS-35F-045 | LC683-45 | 45mm |
| LCCS-35F-050 | LC683-50 | 50mm |
| LCCS-35F-055 | LC683-55 | 55mm |
| LCCS-35F-060 | LC683-60 | 60mm |
55. Locking Head Cannulated Cancellous Screw 3.5 mm "Short Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 3.5mm "Rosca Corta"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|
|---|---|---|---|
| LCCS-35S-014 | LC684-14 | 14mm | |
| LCCS-35S-016 | LC684-16 | 16mm | |
| LCCS-35S-018 | LC684-18 | 18mm | |
| LCCS-35S-020 | LC684-20 | 20mm | |
| LCCS-35S-022 | LC684-22 | 22mm | |
| LCCS-35S-024 | LC684-24 | 24mm | |
| LCCS-35S-026 | LC684-26 | 26mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCCS-35S-028 | LC684-28 | 28mm |
| LCCS-35S-030 | LC684-30 | 30mm |
| LCCS-35S-022 | LC684-35 | 35mm |
| LCCS-35S-040 | LC684-40 | 40mm |
| LCCS-35S-045 | LC684-45 | 45mm |
| LCCS-35S-050 | LC684-50 | 50mm |
| LCCS-35S-055 | LC684-55 | 55mm |
| LCCS-35S-060 | LC684-60 | 60mm |
56. Small Cannulated Screw, Dia - 3.5 "Short Thread"
Tornillo canulado pequeño, diámetro - 3.5 "rosca corta"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 684.10-Ti | 684.10 | 10mm |
| 684.12-Ti | 684.12 | 12mm |
| 684.14-Ti | 684.14 | 14mm |
| 684.16-Ti | 684.16 | 16mm |
| 684.18-Ti | 684.18 | 18mm |
| 684.20-Ti | 684.20 | 20mm |
| 684.22-Ti | 684.22 | 22mm |
| 684.24-Ti | 684.24 | 24mm |
| 684.26-Ti | 684.26 | 26mm |
| 684.28-Ti | 684.28 | 28mm |
| 684.30-Ti | 684.30 | 30mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 684.32-Ti | 684.32 | 32mm |
| 684.34-Ti | 684.34 | 34mm |
| 684.36-Ti | 684.36 | 36mm |
| 684.38-Ti | 684.38 | 38mm |
| 684.40-Ti | 684.40 | 40mm |
| 684.42-Ti | 684.42 | 42mm |
| 684.44-Ti | 684.44 | 44mm |
| 684.46-Ti | 684.46 | 46mm |
| 684.48-Ti | 684.48 | 48mm |
| 684.50-Ti | 684.50 | 50mm |
57. Small Cannulated Screw, Dia - 3.5 "Full Thread"
Tornillo canulado pequeño, diámetro - 3.5 "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 683.10-Ti | 683.10 | 10mm |
| 683.12-Ti | 683.12 | 12mm |
| 683.14-Ti | 683.14 | 14mm |
| 683.16-Ti | 683.16 | 16mm |
| 683.18-Ti | 683.18 | 18mm |
| 683.20-Ti | 683.20 | 20mm |
| 683.22-Ti | 683.22 | 22mm |
| 683.24-Ti | 683.24 | 24mm |
| 683.26-Ti | 683.26 | 26mm |
| 683.28-Ti | 683.28 | 28mm |
| 683.30-Ti | 683.30 | 30mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 683.32-Ti | 683.32 | 32mm |
| 683.34-Ti | 683.34 | 34mm |
| 683.36-Ti | 683.36 | 36mm |
| 683.38-Ti | 683.38 | 38mm |
| 683.40-Ti | 683.40 | 40mm |
| 683.42-Ti | 683.42 | 42mm |
| 683.44-Ti | 683.44 | 44mm |
| 683.46-Ti | 683.46 | 46mm |
| 683.48-Ti | 683.48 | 48mm |
| 683.50-Ti | 683.50 | 50mm |
58. Small Cannulated Screw, Dia - 4.0 "Full Thread"
Tornillo canulado pequeño, diámetro - 4.0 "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 901.20-Ti | 901.20 | 20mm |
| 901.22-Ti | 901.22 | 22mm |
| 901.24-Ti | 901.24 | 24mm |
| 901.26-Ti | 901.26 | 26mm |
| 901.28-Ti | 901.28 | 28mm |
| 901.30-Ti | 901.30 | 30mm |
| 901.32-Ti | 901.32 | 32mm |
| 901.34-Ti | 901.34 | 34mm |
| 901.36-Ti | 901.36 | 36mm |
| 901.38-Ti | 901.38 | 38mm |
| 901.40-Ti | 901.40 | 40mm |
| 901.42-Ti | 901.42 | 42mm |
| 901.44-Ti | 901.44 | 44mm |
| 901.46-Ti | 901.46 | 46mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 901.48-Ti | 901.48 | 48mm |
| 901.50-Ti | 901.50 | 50mm |
| 901.52-Ti | 901.52 | 52mm |
| 901.54-Ti | 901.54 | 54mm |
| 901.56-Ti | 901.56 | 56mm |
| 901.58-Ti | 901.58 | 58mm |
| 901.60-Ti | 901.60 | 60mm |
| 901.62-Ti | 901.62 | 62mm |
| 901.64-Ti | 901.64 | 64mm |
| 901.66-Ti | 901.66 | 66mm |
| 901.68-Ti | 901.68 | 68mm |
| 901.70-Ti | 901.70 | 70mm |
| 901.72-Ti | 901.72 | 72mm |
| 901.74-Ti | 901.74 | 74mm |
59. Small Cannulated Screw, Dia - 4.0 "Short Thread"
Tornillo canulado pequeño, diámetro - 4.0 "rosca corta"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 902.20-Ti | 902.20 | 20mm |
| 902.22-Ti | 902.22 | 22mm |
| 902.24-Ti | 902.24 | 24mm |
| 902.26-Ti | 902.26 | 26mm |
| 902.28-Ti | 902.28 | 28mm |
| 902.30-Ti | 902.30 | 30mm |
| 902.32-Ti | 902.32 | 32mm |
| 902.34-Ti | 902.34 | 34mm |
| 902.36-Ti | 902.36 | 36mm |
| 902.38-Ti | 902.38 | 38mm |
| 902.40-Ti | 902.40 | 40mm |
| 902.42-Ti | 902.42 | 42mm |
| 902.44-Ti | 902.44 | 44mm |
| 902.46-Ti | 902.46 | 46mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 902.48-Ti | 902.48 | 48mm |
| 902.50-Ti | 902.50 | 50mm |
| 902.52-Ti | 902.52 | 52mm |
| 902.54-Ti | 902.54 | 54mm |
| 902.56-Ti | 902.56 | 56mm |
| 902.58-Ti | 902.58 | 58mm |
| 902.60-Ti | 902.60 | 60mm |
| 902.62-Ti | 902.62 | 62mm |
| 902.64-Ti | 902.64 | 64mm |
| 902.66-Ti | 902.66 | 66mm |
| 902.68-Ti | 902.68 | 68mm |
| 902.70-Ti | 902.70 | 70mm |
| 902.72-Ti | 902.72 | 72mm |
| 902.74-Ti | 902.74 | 74mm |
60. Cannulated Screw, Dia - 4.5 "Full Thread"
Tornillo canulado pequeño, diámetro - 4.5 "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 681.20-Ti | 681.20 | 20mm |
| 681.22-Ti | 681.22 | 22mm |
| 681.24-Ti | 681.24 | 24mm |
| 681.26-Ti | 681.26 | 26mm |
| 681.28-Ti | 681.28 | 28mm |
| 681.30-Ti | 681.30 | 30mm |
| 681.32-Ti | 681.32 | 32mm |
| 681.34-Ti | 681.34 | 34mm |
| 681.36-Ti | 681.36 | 36mm |
| 681.38-Ti | 681.38 | 38mm |
| 681.40-Ti | 681.40 | 40mm |
| 681.42-Ti | 681.42 | 42mm |
| 681.44-Ti | 681.44 | 44mm |
| 681.46-Ti | 681.46 | 46mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 681.48-Ti | 681.48 | 48mm |
| 681.50-Ti | 681.50 | 50mm |
| 681.52-Ti | 681.52 | 52mm |
| 681.54-Ti | 681.54 | 54mm |
| 681.56-Ti | 681.56 | 56mm |
| 681.58-Ti | 681.58 | 58mm |
| 681.60-Ti | 681.60 | 60mm |
| 681.62-Ti | 681.62 | 62mm |
| 681.64-Ti | 681.64 | 64mm |
| 681.66-Ti | 681.66 | 66mm |
| 681.68-Ti | 681.68 | 68mm |
| 681.70-Ti | 681.70 | 70mm |
| 681.72-Ti | 681.72 | 72mm |
| 681.74-Ti | 681.74 | 74mm |
61. Cannulated Screw, Dia - 4.5 "Short Thread"
Tornillo canulado, diámetro - 4.5 "rosca corta"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 682.20-Ti | 682.20 | 20mm |
| 682.22-Ti | 682.22 | 22mm |
| 682.24-Ti | 682.24 | 24mm |
| 682.26-Ti | 682.26 | 26mm |
| 682.28-Ti | 682.28 | 28mm |
| 682.30-Ti | 682.30 | 30mm |
| 682.32-Ti | 682.32 | 32mm |
| 682.34-Ti | 682.34 | 34mm |
| 682.36-Ti | 682.36 | 36mm |
| 682.38-Ti | 682.38 | 38mm |
| 682.40-Ti | 682.40 | 40mm |
| 682.42-Ti | 682.42 | 42mm |
| 682.44-Ti | 682.44 | 44mm |
| 682.46-Ti | 682.46 | 46mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 682.48-Ti | 682.48 | 48mm |
| 682.50-Ti | 682.50 | 50mm |
| 682.52-Ti | 682.52 | 52mm |
| 682.54-Ti | 682.54 | 54mm |
| 682.56-Ti | 682.56 | 56mm |
| 682.58-Ti | 682.58 | 58mm |
| 682.60-Ti | 682.60 | 60mm |
| 682.62-Ti | 682.62 | 62mm |
| 682.64-Ti | 682.64 | 64mm |
| 682.66-Ti | 682.66 | 66mm |
| 682.68-Ti | 682.68 | 68mm |
| 682.70-Ti | 682.70 | 70mm |
| 682.72-Ti | 682.72 | 72mm |
| 682.74-Ti | 682.74 | 74mm |
62. Locking Head Cannulated Cancellous Screw Dia - 6.5mm "16mm Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 6.5mm "Rosca 16mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP661630 | 6116-30 | 30mm |
| LCP661635 | 6116-35 | 35mm |
| LCP661640 | 6116-40 | 40mm |
| LCP661645 | 6116-45 | 45mm |
| LCP661650 | 6116-50 | 50mm |
| LCP661655 | 6116-55 | 55mm |
| LCP661660 | 6116-60 | 60mm |
| LCP661665 | 6116-65 | 65mm |
| LCP661670 | 6116-70 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP661675 | 6116-75 | 75mm |
| LCP661680 | 6116-80 | 80mm |
| LCP661685 | 6116-85 | 85mm |
| LCP661690 | 6116-90 | 90mm |
| LCP661695 | 6116-95 | 95mm |
| LCP6616100 | 6116-100 | 100mm |
| LCP6616105 | 6116-105 | 105mm |
| LCP6616110 | 6116-110 | 110mm |
63. Locking Head Cannulated Cancellous Screw Dia - 6.5mm "32mm Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 6.5mm "Rosca 32mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP663240 | 6132-40 | 40mm |
| LCP663245 | 6132-45 | 45mm |
| LCP663250 | 6132-50 | 50mm |
| LCP663255 | 6132-55 | 55mm |
| LCP663260 | 6132-60 | 60mm |
| LCP663265 | 6132-65 | 65mm |
| LCP663270 | 6132-70 | 70mm |
| LCP663275 | 6132-75 | 75mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP663280 | 6132-80 | 80mm |
| LCP663285 | 6132-85 | 85mm |
| LCP663290 | 6132-90 | 90mm |
| LCP663295 | 6132-95 | 95mm |
| LCP6632100 | 6132-100 | 100mm |
| LCP6632105 | 6132-105 | 105mm |
| LCP6632110 | 6132-110 | 110mm |
64. Locking Head Cannulated Cancellous Screw Dia - 6.5mm "Full Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 6.5mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP660025 | 6100-25 | 25mm |
| LCP660030 | 6100-30 | 30mm |
| LCP660035 | 6100-35 | 35mm |
| LCP660040 | 6100-40 | 40mm |
| LCP660045 | 6100-45 | 45mm |
| LCP660050 | 6100-50 | 50mm |
| LCP660055 | 6100-55 | 55mm |
| LCP660060 | 6100-60 | 60mm |
| LCP660065 | 6100-65 | 65mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP660070 | 6100-70 | 70mm |
| LCP660075 | 6100-75 | 75mm |
| LCP660080 | 6100-80 | 80mm |
| LCP660085 | 6100-85 | 85mm |
| LCP660090 | 6100-90 | 90mm |
| LCP660095 | 6100-95 | 95mm |
| LCP660100 | 6100-100 | 100mm |
| LCP6600105 | 6100-105 | 105mm |
| LCP6600110 | 6100-110 | 110mm |
65. Cannulated Cancellous Screw, Dia - 6.5mm "16mm Thread"
Tornillo esponjoso canulado, diámetro - 6,5 mm "rosca de 16 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 615.6530-TI | 615.6530 | 30mm |
| 615.6535-Ti | 615.6535 | 35mm |
| 615.6540-Ti | 615.6540 | 40mm |
| 615.6545-Ti | 615.6545 | 45mm |
| 615.6550-Ti | 615.6550 | 50mm |
| 615.6555-Ti | 615.6555 | 55mm |
| 615.6560-Ti | 615.6560 | 60mm |
| 615.6565-Ti | 615.6565 | 65mm |
| 615.6570-Ti | 615.6570 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 615.6575-Ti | 615.6575 | 75mm |
| 615.6580-Ti | 615.6580 | 80mm |
| 615.6585-Ti | 615.6585 | 85mm |
| 615.6590-Ti | 615.6590 | 90mm |
| 615.6595-Ti | 615.6595 | 95mm |
| 615.65100-Ti | 615.65100 | 100mm |
| 615.65105-Ti | 615.65105 | 105mm |
| 615.65110-TI | 615.65110 | 110mm |
66. Cannulated Cancellous Screw, Dia - 6.5mm "32mm Thread"
Tornillo esponjoso canulado, diámetro - 6,5 mm "rosca de 32 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.6540-Ti | 616.6540 | 40mm |
| 616.6545-Ti | 616.6545 | 45mm |
| 616.6550-Ti | 616.6550 | 50mm |
| 616.6555-Ti | 616.6555 | 55mm |
| 616.6560-Ti | 616.6560 | 60mm |
| 616.6565-Ti | 616.6565 | 65mm |
| 616.6570-Ti | 616.6570 | 70mm |
| 616.6575-Ti | 616.6575 | 75mm |
| 616.6580-Ti | 616.6580 | 80mm |
| 616.6585-Ti | 616.6585 | 85mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.6590-Ti | 616.6590 | 90mm |
| 616.6595-Ti | 616.6595 | 95mm |
| 616.65100-TI | 616.65100 | 100mm |
| 616.65105-Ti | 616.65105 | 105mm |
| 616.65110-Ti | 616.65110 | 110mm |
| 616.65115-TI | 616.65115 | 115mm |
| 616.65120-Ti | 616.65120 | 120mm |
| 616.65125-TI | 616.65125 | 125mm |
| 616.65130-TI | 616.65130 | 130mm |
67. Cannulated Cancellous Screw, Dia - 6.5mm "Full Thread"
Tornillo esponjoso canulado, diámetro - 6,5 mm "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 617.6540-Ti | 617.6540 | 40mm |
| 617.6545-Ti | 617.6545 | 45mm |
| 617.6550-Ti | 617.6550 | 50mm |
| 617.6555-Ti | 617.6555 | 55mm |
| 617.6560-Ti | 617.6560 | 60mm |
| 617.6565-Ti | 617.6565 | 65mm |
| 617.6570-Ti | 617.6570 | 70mm |
| 617.6575-Ti | 617.6575 | 75mm |
| 617.6580-Ti | 617.6580 | 80mm |
| 617.6585-Ti | 617.6585 | 85mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 617.6590-Ti | 617.6590 | 90mm |
| 617.6595-Ti | 617.6595 | 95mm |
| 617.65100-Ti | 617.65100 | 100mm |
| 617.65105-Ti | 617.65105 | 105mm |
| 617.65110-Ti | 617.65110 | 110mm |
| 617.65115-Ti | 617.65115 | 115mm |
| 617.65120-Ti | 617.65120 | 120mm |
| 617.65125-Ti | 617.65125 | 125mm |
| 617.65130-Ti | 617.65130 | 130mm |
68. Large Cannulated Cancellous Screw, Dia - 7.0mm "16mm Thread"
Tornillo esponjoso canulado grande, diámetro - 7,0 mm "rosca de 16 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 615.30-Ti | 615.30 | 30mm |
| 615.35-Ti | 615.35 | 35mm |
| 615.40-Ti | 615.40 | 40mm |
| 615.45-Ti | 615.45 | 45mm |
| 615.50-Ti | 615.50 | 50mm |
| 615.55-Ti | 615.55 | 55mm |
| 615.60-Ti | 615.60 | 60mm |
| 615.65-Ti | 615.65 | 65mm |
| 615.70-Ti | 615.70 | 70mm |
| 615.75-Ti | 615.75 | 75mm |
| 615.80-Ti | 615.80 | 80mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 615.85-Ti | 615.85 | 85mm |
| 615.90-Ti | 615.90 | 90mm |
| 615.95-Ti | 615.95 | 95mm |
| 615.100-Ti | 615.100 | 100mm |
| 615.105-Ti | 615.105 | 105mm |
| 615.110-Ti | 615.110 | 110mm |
| 615.115-Ti | 615.115 | 115mm |
| 615.120-Ti | 615.120 | 120mm |
| 615.125-Ti | 615.125 | 125mm |
| 615.130-Ti | 615.130 | 130mm |
69. Large Cannulated Cancellous Screw, Dia - 7.0mm "32mm Thread"
Tornillo esponjoso canulado grande, diámetro - 7,0 mm "rosca de 32 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.40-Ti | 616.40 | 40mm |
| 616.45-Ti | 616.45 | 45mm |
| 616.50-Ti | 616.50 | 50mm |
| 616.55-Ti | 616.55 | 55mm |
| 616.60-Ti | 616.60 | 60mm |
| 616.65-Ti | 616.65 | 65mm |
| 616.70-Ti | 616.70 | 70mm |
| 616.75-Ti | 616.75 | 75mm |
| 616.80-Ti | 616.80 | 80mm |
| 616.85-Ti | 616.85 | 85mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.90-Ti | 616.90 | 90mm |
| 616.95-Ti | 616.95 | 95mm |
| 616.100-Ti | 616.100 | 100mm |
| 616.105-Ti | 616.105 | 105mm |
| 616.110-Ti | 616.110 | 110mm |
| 616.115-Ti | 616.115 | 115mm |
| 616.120-Ti | 616.120 | 120mm |
| 616.125-Ti | 616.125 | 125mm |
| 616.130-Ti | 616.130 | 130mm |
70. Large Cannulated Cancellous Screw, Dia - 7.0mm "Full Thread"
Tornillo esponjoso canulado grande, diámetro - 7,0 mm "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.7040-Ti | 616.7040 | 40mm |
| 616.7045-Ti | 616.7045 | 45mm |
| 616.7050-Ti | 616.7050 | 50mm |
| 616.7055-Ti | 616.7055 | 55mm |
| 616.7060-Ti | 616.7060 | 60mm |
| 616.7065-Ti | 616.7065 | 65mm |
| 616.7070-Ti | 616.7070 | 70mm |
| 616.7075-Ti | 616.7075 | 75mm |
| 616.7080-TI | 616.7080 | 80mm |
| 616.7085-Ti | 616.7085 | 85mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.7090-Ti | 616.7090 | 90mm |
| 616.7095-Ti | 616.7095 | 95mm |
| 616.70100-Ti | 616.70100 | 100mm |
| 616.70105-Ti | 616.70105 | 105mm |
| 616.70110-Ti | 616.70110 | 110mm |
| 616.70115-TI | 616.70115 | 115mm |
| 616.70120-Ti | 616.70120 | 120mm |
| 616.70125-Ti | 616.70125 | 125mm |
| 616.70130-Ti | 616.70130 | 130mm |
71. Large Cannulated Cancellous Screw, Dia - 7.3mm "Full Thread"
Tornillo esponjoso canulado grande, diámetro - 7,3 mm "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 7300.40-Ti | 7300.40 | 40mm |
| 7300.45-Ti | 7300.45 | 45mm |
| 7300.50-Ti | 7300.50 | 50mm |
| 7300.55-Ti | 7300.55 | 55mm |
| 7300.60-Ti | 7300.60 | 60mm |
| 7300.65-Ti | 7300.65 | 65mm |
| 7300.70-Ti | 7300.70 | 70mm |
| 7300.75-Ti | 7300.75 | 75mm |
| 7300.80-Ti | 7300.80 | 80mm |
| 7300.85-Ti | 7300.85 | 85mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 7300.90-Ti | 7300.90 | 90mm |
| 7300.95-Ti | 7300.95 | 95mm |
| 7300.100-TI | 7300.100 | 100mm |
| 7300.105-Ti | 7300.105 | 105mm |
| 7300.110-Ti | 7300.110 | 110mm |
| 7300.115-Ti | 7300.115 | 115mm |
| 7300.120-Ti | 7300.120 | 120mm |
| 7300.125-Ti | 7300.125 | 125mm |
| 7300.130-Ti | 7300.130 | 130mm |
73. Screw Drivers for Bone Screws
Destornilladores para tornillos de hueso
-
Screwdriver For 4.5/5.0mm screws with 3.5mm Tip
-
Screwdriver For 3.5mm screws with Tip 2.5mm
-
Screwdriver For 2.4/2.7mm screws with 2.0mm Tip
-
Torque Screwdriver for 4.5/5.0mm Screws 4.5NM
-
Torque Screwdriver for 3mm Screws 1.5NM
-
Screw Holding Sleeve For Screwdrivers
Available in Hexagonal/Star Head
-
Screwdriver for 4.5/5.0mm screws with 3.5mm tip Silicon Handle 5.0mm
-
Screwdriver for 3.5mm screws with tip 2.5mm Silicon Handle 3.5
-
Screwdriver for 2.4/2.7mm screws with 2.0mm tip Silicon Handle 2.7mm
-
Torque-limiting Handle for 2.4/2.7mm 0.8NM
-
Shaft for Torque-limiting Handle for 2.4/2.7mm
73. DHS/DCS Lag Screw
Tornillo de Tracción DHS/DCS
| Ref. No. Ti | Ref. No. SS | Length |
|---|---|---|
| LCP600060 | ZZ-060 | 60mm |
| LCP600065 | ZZ-065 | 65mm |
| LCP600070 | ZZ-070 | 70mm |
| LCP600075 | ZZ-075 | 75mm |
| LCP600080 | ZZ-080 | 80mm |
| LCP600085 | ZZ-085 | 85mm |
| LCP600090 | ZZ-090 | 90mm |
| LCP600095 | ZZ-095 | 95mm |
| LCP600100 | ZZ-100 | 100mm |
| LCP600105 | ZZ-105 | 105mm |
| LCP600110 | ZZ-110 | 110mm |
| LCP600115 | ZZ-115 | 115mm |
| LCP600120 | ZZ-120 | 120mm |
Compression Screw
Tornillo de Compresion
| Ref. No. Ti | Ref. No. SS | Length |
|---|---|---|
| LCP600000 | ZZ-000 | 36mm |
FDA 510K CLEARED
74. Cortical Screw, Dia - 2.4mm - Self Tapping
Tornillo Cortical, Dia - 2.4 mm - Autoroscante.
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 701.06ST-Ti | 701.06ST | 06mm |
| 701.08ST-Ti | 701.08ST | 08mm |
| 701.10ST-Ti | 701.10ST | 10mm |
| 701.12ST-Ti | 701.12ST | 12mm |
| 701.14ST-Ti | 701.14ST | 14mm |
| 701.16ST-Ti | 701.16ST | 16mm |
| 701.18ST-Ti | 701.18ST | 18mm |
| 701.20ST-Ti | 701.20ST | 20mm |
| 701.22ST-Ti | 701.22ST | 22mm |
| 701.24ST-Ti | 701.24ST | 24mm |
| 701.26ST-Ti | 701.26ST | 26mm |
| 701.28ST-Ti | 701.28ST | 28mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 701.30ST-Ti | 701.30ST | 30mm |
| 701.32ST-Ti | 701.32ST | 32mm |
| 701.34ST-Ti | 701.34ST | 34mm |
| 701.36ST-Ti | 701.36ST | 36mm |
| 701.38ST-Ti | 701.38ST | 38mm |
| 701.40ST-Ti | 701.40ST | 40mm |
| 701.42ST-Ti | 701.42ST | 42mm |
| 701.44ST-Ti | 701.44ST | 44mm |
| 701.46ST-Ti | 701.46ST | 46mm |
| 701.48ST-Ti | 701.48ST | 48mm |
| 701.50ST-Ti | 701.50ST | 50mm |
75. Cortical Screw, Dia - 2.7mm - Self Tapping
Tornillo Cortical, Dia - 2.7 mm - Autoroscante.
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 603.06ST-Ti | 603.06ST | 06mm |
| 603.08ST-Ti | 603.08ST | 08mm |
| 603.10ST-Ti | 603.10ST | 10mm |
| 603.12ST-Ti | 603.12ST | 12mm |
| 603.14ST-Ti | 603.14ST | 14mm |
| 603.16ST-Ti | 603.16ST | 16mm |
| 603.18ST-Ti | 603.18ST | 18mm |
| 603.20ST-Ti | 603.20ST | 20mm |
| 603.22ST-Ti | 603.22ST | 22mm |
| 603.24ST-Ti | 603.24ST | 24mm |
| 603.26ST-Ti | 603.26ST | 26mm |
| 603.28ST-Ti | 603.28ST | 28mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 603.30ST-Ti | 603.30ST | 30mm |
| 603.32ST-Ti | 603.32ST | 32mm |
| 603.34ST-Ti | 603.34ST | 34mm |
| 603.36ST-Ti | 603.36ST | 36mm |
| 603.38ST-Ti | 603.38ST | 38mm |
| 603.40ST-Ti | 603.40ST | 40mm |
| 603.42ST-Ti | 603.42ST | 42mm |
| 603.44ST-Ti | 603.44ST | 44mm |
| 603.46ST-Ti | 603.46ST | 46mm |
| 603.48ST-Ti | 603.48ST | 48mm |
| 603.50ST-Ti | 603.50ST | 50mm |
Bone Screws Manufacturer in India
At Ortho Care, we take pride in being a top bone screw manufacturer in India, offering incredible and sturdy Orthopedic screws required for various surgical strategies. Our surgical bone screws are meticulously crafted with superior generation and first-rate substances to make certain a secure fixation, premiere energy, and lengthy-term overall performance. Our bone screws are trusted with the aid of scientific specialists and designed to fulfil the best industry requirements, making them a dependable desire for Orthopedic surgical procedures in India and globally.
Bone Screws Supplier in India
As a leading bone screws supplier in India, we provide a wide selection of Orthopedic screws to hospitals, clinics, and scientific vendors throughout India. We recognize the crucial role that wonderful surgical implants play in the success of Orthopedic procedures. That's why we offer bone screws, which might be designed for each sturdiness and performance, ensuring that healthcare vendors have the reliable merchandise they want for foremost patient care.
Bone Screws Exporter in India
Ortho Care is a trusted bone screw exporter in India, providing pinnacle-tier Orthopedic screws to satisfy the global call for reliable bone fixation answers. Our surgical bone screws are designed and manufactured to adhere to worldwide first-class standards, ensuring surgical overall performance. With a popularity for reliability, Ortho Care is the preferred desire for medical experts worldwide who are searching for wonderful bone screws for trauma, spinal, and fracture surgeries.
