Knee Implant Manufacturer in India
Knee Implant
The knee instrument set offers a wide range of precision-engineered tools for use in a variety of knee surgeries, including total and partial knee replacements, ligament repairs, and other complex procedures. These instruments are built to meet the specific needs of knee joint surgeries, providing surgeons with the tools needed for accurate cuts, precise alignment, and optimal fixation during complex surgeries. With their high-quality materials and durability, they ensure consistent performance and reliability throughout the procedure.
These instruments are designed for efficiency and versatility and make complex surgeries easier to manage by offering exceptional control and precision. These tools ensure the best surgical outcomes for total knee replacement, meniscus repair, or ligament reconstruction. Their ergonomic design promotes easy handling, and their robust construction ensures long-lasting reliability. Trusted by Orthopedic surgeons, this set of Knee Implant is an essential component of successful joint surgeries, offering effective results and promoting faster recovery.

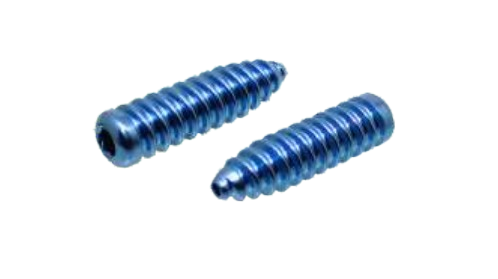

Care Inteference Screw
Sizes and Reference Codes
|
|
Ref. Code |
|---|---|---|
| 5.0 mm | 20mm to 35mm | CIFS-0520 to CIFS-0535 |
| 6.0 mm | 20mm to 35mm | CIFS-0620 to CIFS-0635 |
| 7.0 mm | 20mm to 35mm | CIFS-0720 to CIFS-0735 |
| 8.0 mm | 20mm to 35mm | CIFS-0820 to CIFS-0835 |
| 9.0 mm | 20mm to 35mm | CIFS-0920 to CIFS-0935 |
| 10.0 mm | 20mm to 35mm | CIFS-1020 to CIFS-1035 |
| 11.0 mm | 20mm to 35mm | CIFS-1120 to CIFS-1135 |
Details
- Specifically designed for endoscopic femoral fixation where graft protection is needed.
- Polished, fully radiused threads provide maximum graft protection.
- Wide-bore cannulation for easy guide wire removal.
- The Taper-Tip style offers sharper initiating threads and a more pronounced taper for faster, easier insertion.
- Designed to reduce the possibility of bone plug migration during placement.
- Round head reduces possibility of graft damage during or after implantation.
- Universal screw for either tibial or femoral applications. Standard 4.5mm hex for easy insertion and removal.
- Cannulated for use with a guide wire.
- Material: Titanium alloy

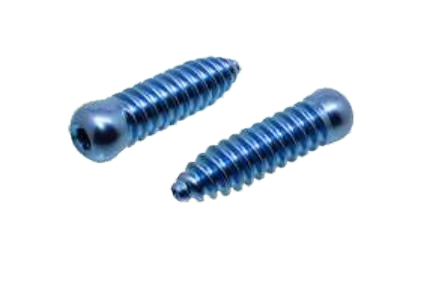

Care Inteference Screw Round Head
Sizes and Reference Codes
|
|
|
Ref. Code |
|---|---|---|
| 7.0 mm | 20mm to 35mm | CIFSR-0720 to CIFSR-0735 |
| 8.0 mm | 20mm to 35mm | CIFSR-0820 to CIFSR-0835 |
| 9.0 mm | 20mm to 35mm | CIFSR-0920 to CIFSR-0935 |
| 10.0 mm | 20mm to 35mm | CIFSR-1020 to CIFSR-1035 |
| 11.0 mm | 20mm to 35mm | CIFSR-1120 to CIFSR-1135 |
Details
- Specifically designed for endoscopic femoral fixation where graft protection is needed.
- Polished, fully radiused threads provide maximum graft protection.
- Wide-bore cannulation for easy guide wire removal.
- The Taper-Tip style offers sharper initiating threads and a more pronounced taper for faster, easier insertion.
- Designed to reduce the possibility of bone plug migration during placement.
- Round head reduces possibility of graft damage during or after implantation.
- Universal screw for either tibial or femoral applications. Standard 4.5mm hex for easy insertion and removal.
- Cannulated for use with a guide wire.
- Material: Titanium alloy
Care Inteference Peek Screw
Sizes and Reference Codes
|
|
|
Ref. Code |
|---|---|---|
| 5.0 mm | 20mm to 35mm | CIFSP-0520 to CIFSP-0535 |
| 6.0 mm | 20mm to 35mm | CIFSP-0620 to CIFSP-0635 |
| 7.0 mm | 20mm to 35mm | CIFSP-0720 to CIFSP-0735 |
| 8.0 mm | 20mm to 35mm | CIFSP-0820 to CIFSP-0835 |
| 9.0 mm | 20mm to 35mm | CIFSP-0920 to CIFSP-0935 |
| 10.0 mm | 20mm to 35mm | CIFSP-1020 to CIFSP-1035 |
| 11.0 mm | 20mm to 35mm | CIFSP-1120 to CIFSP-1135 |
Details
- Specifically designed for endoscopic femoral fixation where graft protection is needed.
- Polished, fully radiused threads provide maximum graft protection.
- Wide-bore cannulation for easy guide wire removal.
- The Taper-Tip style offers sharper initiating threads and a more pronounced taper for faster, easier insertion.
- Designed to reduce the possibility of bone plug migration during placement.
- Round head reduces possibility of graft damage during or after implantation.
- Universal screw for either tibial or femoral applications.Standard 4.5mm hex for easy insertion and removal.
- Cannulated for use with a guide wire.
- Material: Titanium alloy

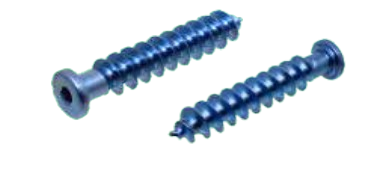

Low Profile Cancellous Screw
| |
|
Ref. Code |
|---|---|---|
| 4.0mm | 25mm | CIFLPS-0425 |
| 30mm | CIFLPS-0430 | |
| 35mm | CIFLPS-0435 | |
| 40mm | CIFLPS-0440 | |
| 6.5mm | 25mm | CIFLPS-6525 |
| 30mm | CIFLPS-6530 | |
| 35mm | CIFLPS-6535 | |
| 40mm | CIFLPS-6540 |

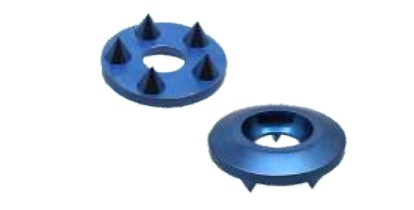

Spiked Washer For Low Profile Cancellous Screw
| Description | Ref. Code |
|---|---|
| For 4.0mm Cancellous Screw | CSW-0405 |
| For 6.5mm Cancellous Screw | CSW-0657 |
Details
- The low-profile screw and washer combination provides 31% to 50% lower profile than competitive versions.
- Low profile cancellous screw and spiked washer set provide continuous strength for soft tissue fixation to bone.
- Low profile head to reduce soft tissue irritation.
- Can be used as a post screw for suture or soft tissue fixation.
- Ideal for ACL, PCL, collateral ligament or posterolateral reconstruction.
- Unique washer design with spikes on the interior surface provides excellent fixation of soft tissue to bone.
- Material - Titanium alloy.

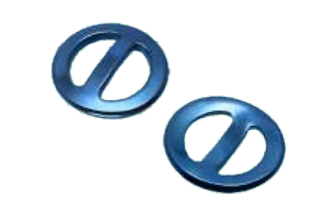

Suture Disc Slotted
| |
Ref. Code |
|---|---|
| 8mm | CSSD-08 |
| 10mm | CSSD-10 |
| 12mm | CSSD-12 |
| 14mm | CSSD-14 |

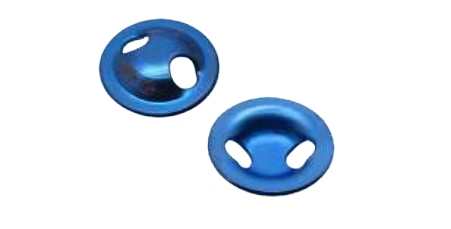

Suture Disc Conical Hole
| |
Ref. Code |
|---|---|
| 8mm | CSCD-08 |
| 10mm | CSCD-10 |
| 12mm | CSCD-12 |
| 14mm | CSCD-14 |
Care Ligamnet U Shape Stapel
Sizes and Reference Codes
|
|
Ref. Code |
|---|---|
| 6.0mm | CLUS-06 |
| 8.0mm | CLUS-08 |
| 10mm | CLUS-10 |
Details
- - The staple fixation system provides a simple means of attaching tissue to bone. - Sharp leg points for easier penetration into cortical bone.
- - Low-profile, wide staple base provides better load distribution. - Two pronged implant for superior pull out strength.
- - Spike-post leg design encourages uninterrupted vascular flow to the underlying tissue. - Material-Titanium alloy.
Care Suture Post Bolt
Sizes and Reference Codes
Details
- - Used to securely trap attached sutures and bulky suture knots atraumatically under the low-profile head to eliminate soft tissue irritation
- - Material-Titanium alloy.
| |
|
Ref. Code |
|---|---|---|
| 6.5mm | 25mm | CSPB-6525 |
| 30mm | CSPB-6530 | |
| 35mm | CSPB-6535 |
Care Transfix Screw
| Ref. Code |
|---|
| CTS-01 |
Details
- - The TransFix Screw is rotated into position to securely fixate the graft
- - Self-cutting, self-tapping screw threads allow for easy insertion or removal during revision procedures.
- - The TransFix Screw is made from titanium for maximum strength.
CARE Endo Button
| Ref. Code |
|---|
| CEB-000 |
Details
- - The titanium button is the original endoscopic femoral soft tissue fixation device.
- - It can be used for single inclusive incision, soft tissue, or bonetendon-bone fixation.
CARE Endo Button with loop
Sizes and Reference Codes
Details
- - Solid fixation for either primary or auxiliary fixation in ACL or PCL reconstruction.
- -Continuous loop of suture braid liminates the need for knot tying.
- -Ideal for a post or screw and washer technique.
- -Distal fixation allows circumferential healing of the ACL graft to tunnel wall.
- -Significantly enhances soft tissue apposition to bone to speed healing and strengthen the repair.
| Loop size | Ref. Code |
|---|---|
| 10mm | CEBL-010 |
| 12mm | CEBL-012 |
| 15mm | CEBL-015 |
| 20mm | CEBL-020 |
| 25mm | CEBL-025 |

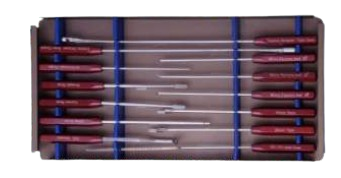

Set Items
- ACL / PCL reconstruction drill guide system
- Graft passing 2.4mm Drill bit
- Graft passing pin (Beath pin)
- Cannulated Tibial Reamer, (Dia.: 6.0mm, 7.0mm, 8.0mm, 9.0mm, 10mm, 11mm, 12mm)
- Cannulated Femoral Flowertip Reamer (Dia.: 6.0mm, 7.0mm, 8.0mm, 9.0mm, 10mm, 11mm, 12mm)
- Cannulated Endoscopic Reamer, (Dia. 4.5mm)
- Depth Gauge for ACL/PCL reconstruction
- Femoral Aimer (5mm, 7mm)
- Tunnel Plug (7-8mm, 8-9mm, 9-10mm)
- Tunnel Dilator, (7.0mm, 8.0mm, 9.0mm)
- T-Handle For Tunnel Dilators
- Cannulated Screw Driver For Bio-Lock Interference Screws
- Impactor For Spiked Ligament Staple
- Arthroscopic Probe
- Micro fracture Awl, (30°, 45°, 90°)
- Graft Prep Station
- Graft Sizing Block
- Tendon Stripper, Closed End, 6.0mm
- Tendon Stripper, Open End, 7.0mm
- Straight Rasp
- Convex Rasp
- Femoral PCL Elevator
- Graphic Case For Knee Arthroscopy Instruments
Knee Implant Manufacturer in India
Ortho Care is a good knee implant manufacturer in India, providing excellent and lengthy-lasting knee replacement implants to sufferers laid low with knee joint problems. Our knee implants are built with contemporary substances and technology to guarantee precision, power, and long-term overall performance. Ortho Care's implants, relied on by Orthopedic docs, are designed to copy the herbal motion of the knee, presenting patients with a higher best of existence.
Knee Implant Supplier in India
Ortho Care, the main knee implant supplier in India, presents a large choice of knee alternative options to hospitals, clinics, and Orthopedic experts around the location. Our implants are designed to satisfy the demands of people requiring partial or overall knee replacements. Our knee implants, designed with power, balance, and patient comfort in mind, assist in restoring features and mobility.
Knee Implant Exporter in India
Ortho Care is the main knee implant exporter in India, providing superior Orthopedic implants for knee replacement surgical procedures worldwide. To ensure long-term outcomes and better-affected person outcomes, our knee implants are built with the usage of modern-era and first-rate materials. As a reputable exporter, we ensure that all our knee alternative implants meet the best industry requirements, resulting in reliable performance and safety all through knee joint restoration surgical procedures.
