Maxillofacial Manufacturer in India
Maxillofacial
Our maxillofacial implants are made with precision and high-quality materials, specifically for facial reconstruction and repair. These implants are useful for restoring function and aesthetics after trauma, congenital defects, or surgical procedures. Engineered for accuracy and durability, they provide excellent support and dependable performance throughout the healing process, ensuring the best possible outcomes for patients.
Oral and maxillofacial surgeons rely on these implants to achieve the highest surgical standards. With their advanced design and biocompatible materials, they integrate seamlessly into the facial structure, ensuring minimal complications and enhanced recovery. Our maxillofacial implants, whether used for bone fracture repair, facial deformities, or complex reconstructions, play an important role in obtaining successful, long-lasting outcomes in facial surgeries.
MAXILLOFACIAL
1.2 mm MICRO Plating System
The smaller plates and screws of the 1.2 mm MICRO Titanium Implant System act as the ideal complement
for osteosynthesis in the top 1/3rdof the skull.
- Screw diameter 1.2 mm (emergency screw 1.5 mm)
- Plate thickness 0.6 mm
| IMPLANTS | Page No. |
|---|---|
| Screws | 4 |
| Drills | 4 |
| Plates | 5 |
| Instruments | 13 |
1.7 mm MID Plating System
The smaller plates and screws of the 1.7 mm MID Titanium Implant System act as the ideal complement for osteosynthesis in the top 2/3 of the skull
- Screw diameter 1.7 mm (emergency screw 2.0 mm)
- Plate thickness 0.6 mm
| IMPLANTS | Page No. |
|---|---|
| Screws | 6 |
| Drills | 6 |
| Plates | 7 |
| Instruments | 13 |
2.0 mm MINI Plating System
The 2.0 mm MINI titanium implant system is designed for osteosynthesis in oral and maxillofacial surgery and is universally applicable.
-Screw diameter 2.0mm (emergency screw 2.3mm)
- Plate thickness 0.6 & 1.0 mm.
| IMPLANTS | Page No. |
|---|---|
| Screws | 8 |
| Drills | 8 |
| Plates (1.0mm) | 9 |
| Plates (0.6mm) | 9 |
| Instruments | 13 |
BMR Mandibular Fracture
& Reconstruction Plating System
Locking Screw diameters 2.0/2.3/2.7 mm (emergency screw 3.0 mm)
Locking Plates thickness 1.5 mm. 2.0 mm. 2.5 mm & 2.8 mm
- Any Screw can be used with any plate
- One Screwdriver suits in all screws
| IMPLANTS | Page No. |
|---|---|
| Screws | 10 |
| Drills | 10 |
| Plates BMR | 11 |
| Plates Recon | 12 |
| Instruments | 13 |
MICRO
Screws
CROSS-FIT Screw
| Ref. No. | Diam. x Length |
|---|---|
| CM1203 | 1.2 x 3mm |
| CM1204 | 1.2 x 4mm |
| CM1205 | 1.2 x 5mm |
| CM1206 | 1.2 x 6mm |
| CM1207 | 1.2 x 7mm |
| CM1208 | 1.2 x 8mm |
| CM1209 | 1.2 x 9mm |
| CM1209 | 1.2 x 9mm |
| CM1211 | 1.2 x 11mm |
| CM1213 | 1.2 x 13mm |
| CM1215 | 1.2 x 15mm |
CROSS-FIT Emergency Screw
| Ref. No. | Diam. x Length |
|---|---|
| CM1504 | 1.5 x 4mm |
| CM1505 | 1.5 x 5mm |
| CM1506 | 1.5 x 5mm |
| CM1509 | 1.5 x 6mm |
| CM1513 | 1.5 x 13mm |
| CM1515 | 1.5 x 15mm |
CROSS-FIT Self-Drilling Screw
| Ref. No. | Diam. x Length |
|---|---|
| CM12035D | 1.2 x 3mm |
| CM1204SD | 1.2 x 4mm |
| CM1205SD | 1.2 x 5mm |
| CM120650 | 1.2 x 6mm |
MICRO
Drills
| Ref. No. | Diameter x Length | Working Length | End |
|---|---|---|---|
| CM2100.11 | 1.0 x 50mm | 5mm | Stryker |
| CM2100.12 | 1.0 x 50mm | 7mm | Stryker |
| CM2100.13 | 1.0 x 50mm | 9mm | Stryker |
| CM2100.14 | 1.0 x 50mm | 15mm | Stryker |
MICRO Plates - Thickness: 0.6 mm
CM6100-004
CM6100-604
CM6100-904
CM6100-006
CM6100-756
CM6100-008
CM6100-016
CM6200-006
CM6200-008
CM6300.007
CM6300.904
CM6400.006
CM6400.007
CM6400.106
CM6400.804
CM6400.124
CM6500.009
CM6500.014
CM6600.005R
CM6600.005L
CM6600.754R
CM6600.754L
CM6600.125R
CM6600.125L
CM6700.003
CM6700.104
CM6700.106
CM6700.108
CM6800.004
CM6800.006
CM6800.008
ORBITAL FLOOR - Thickness: 0.3 mm
CM9100.000S
CM9100.000M
CM9100.000L
MID
Screws
CROSS-FIT Screw
| Ref. No. | Diam. x Length |
|---|---|
| CM1703 | 1.7 x 3mm |
| CM1704 | 1.7 x 4mm |
| CM1705 | 1.7 x 5mm |
| CM1706 | 1.7 x 6mm |
| CM1707 | 1.7 x 7mm |
| CM1708 | 1.7 x 8mm |
| CM1709 | 1.7 x 9mm |
| CM1711 | 1.7 x 11mm |
| CM1713 | 1.7 x 13mm |
| CM1715 | 1.7 x 15mm |
CROSS-FIT Emergency Screw
| Ref. No. | Diam. x Length |
|---|---|
| CM2004 | 2.0 x 4mm |
| CM2005 | 2.0 x 5mm |
| CM2006 | 2.0 x 6mm |
| CM2008 | 2.0 x 8mm |
CROSS-FIT Self-Drilling Screw
| Ref. No. | Diam. x Length |
|---|---|
| CM1604SD | 1.6 x 4mm |
| CM1605SD | 1.6 x 5mm |
| CM1606SD | 1.6 x 6mm |
MESH PLATE
| Ref. No. | Diam. x Length |
|---|---|
| CM1604SD | 1.6 x 4mm |
| CM1605SD | 1.6 x 5mm |
| CM1606SD | 1.6 x 6mm |
| Ref. No. | Description |
|---|---|
| CM9206 050050 | CAD mesh, 50 x 50 x 0.6 mm |
| CM9206.100000 | CAD mesh, 100 x 50 x 0.6 mm |
| CM9106.050050 | Flexible mesh, 50 x 50 x 0.6 mm |
| CM9106.100100 | Flexible mesh, 100 x 100 x 0.6 mm |
| CM9106.100150 | Flexible mesh, 100 x 150 x 0.6 mm |
| CM9106.100200 | Flexible mesh, 100 x 200 x 0.6 mm |
| CM9106.200200 | Flexible mesh, 200 x 200 x 0.6 mm |
Drills
| Ref. No. | Diameter x Length | Working Length | End |
|---|---|---|---|
| CM2100.01 | 1.4 x 50mm | 5mm | Stryker |
| CM2100.02 | 1.4 x 50mm | 8mm | Stryker |
| CM2100.03 | 1.4 x 50mm | 12mm | Stryker |
| CM2100.04 | 1.4 x 50mm | 15mm | Stryker |

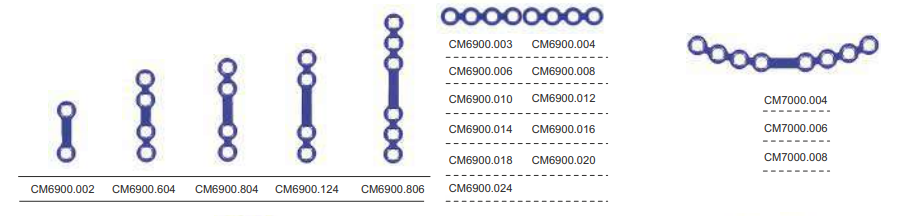

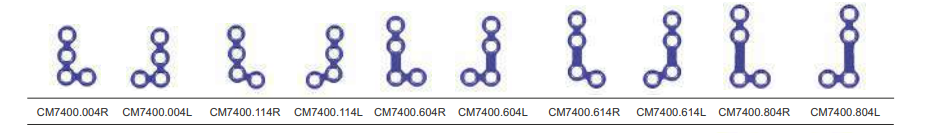

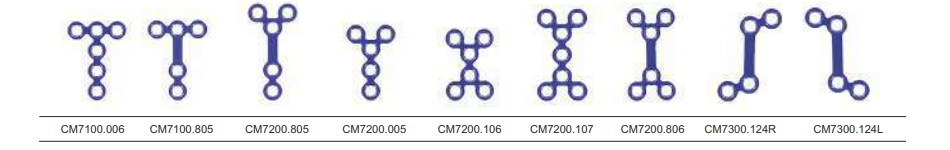

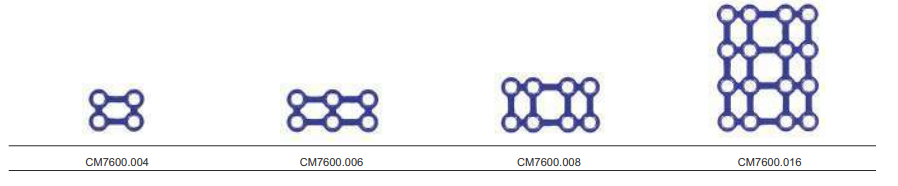

MID Plates - Thickness: 0.6 mm
MINI
Screws
MINI CROSS-FIT Screws
| Ref. No. | Diameter x Length |
|---|---|
| CM2305 | 2.3 x 5mm |
| CM2307 | 2.3 x 7mm |
| CM2309 | 2.3 x 9mm |
| CM2311 | 2.3 x 11mm |
CROSS-FIT Screws
| Ref. No. | Diameter x Length |
|---|---|
| CM2004 | 2.0 x 4mm |
| CM2005 | 2.0 x 5mm |
| CM2006 | 2.0 x 6mm |
| CM2007 | 2.0 x 7mm |
| CM2008 | 2.0 x 8mm |
| CM2009 | 2.0 x 9mm |
| CM2010 | 2.0 x 10mm |
| CM2011 | 2.0 x 11mm |
| CM2012 | 2.0 x 12mm |
| CM2013 | 2.0 x 13mm |
| CM2015 | 2.0 x 15mm |
CROSS-FIT Self-Drilling Screws
| Ref. No. | Diameter x Length |
|---|---|
| CM20045D | 2.0 x 4mm |
| CM2005SD | 2.0 x 5mm |
| CM2006SD | 2.0 x 6mm |
| CM2007SD | 2.0 x 7mm |
IMF
SCREWS
IMF CROSS-FIT Self-Drilling Screws
| Ref. No. | Diameter x Length |
|---|---|
| CM2007IMSD | 2.0 x 8mm |
| CM2011IMSD | 2.0 x 11mm |
| CM2014IMSO | 2.0 x 14mm |
Drills
| Ref. No. | Diameter x Length | Working Length | End |
|---|---|---|---|
| CM2100.05 | 1.5 x 50mm | 5mm | Stryker |
| CM2100.06 | 1.5 x 50mm | 7mm | Stryker |
| CM2100.07 | 1.5 x 50mm | 9mm | Stryker |
| CM2100.08 | 1.5 x 50mm | 15mm | Stryker |
| CM2100.09 | 1.5 x 50mm | 22mm | Stryker |
| CM2100.10 | 1.5 x 105 | Stryker |

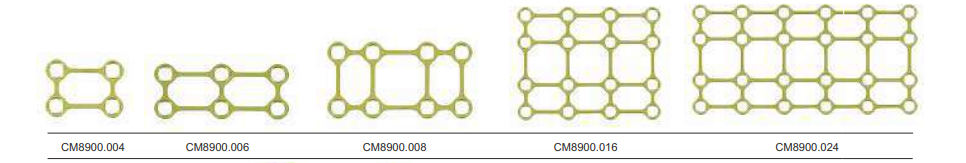

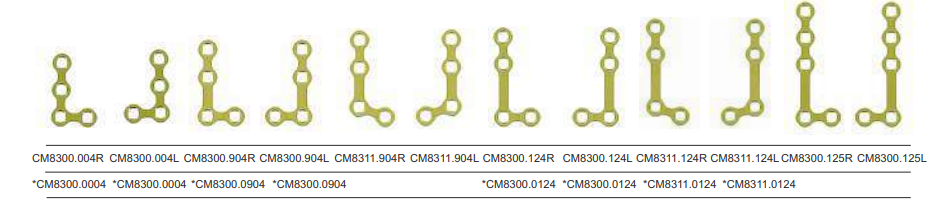

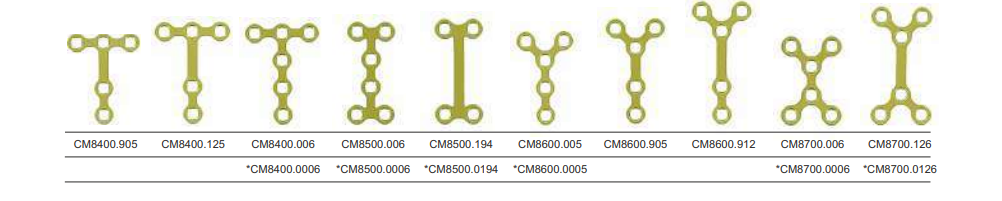

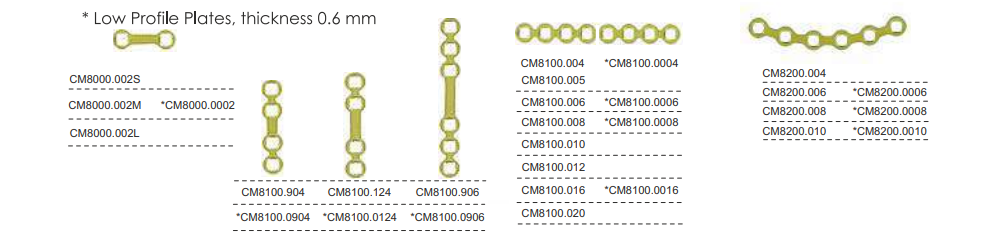

MINI Plates - Thickness: 0.6mm 81.0 mm
.png "Maxillofacial Supplier in India")
.png "Maxillofacial Supplier in India")
.png "Maxillofacial Supplier in India")
.png "Maxillofacial Supplier in India")
.png "Maxillofacial Supplier in India")
.png "Maxillofacial Supplier in India")
BMR & RECONSTRUCTION
Screws
2.0
Screw (Diameter 2.0 mm)
+
CROSS-FIT Screw, locking
| Ref. No. | Diameter x Length |
|---|---|
| CM2006 | 2.0 x 6 mm |
| CM2008 | 2.0 x 8 mm |
| CM2010 | 2.0 x 10 mm |
| CM2012 | 2.0 x 12 mm |
| CM2014 | 2.0 x 14 mm |
| CM2016 | 2.0 x 16 mm |
| CM2018 | 2.0 x 18 mm |
| CM2020 | 2.0 x 20 mm |
| CM2022 | 2.0 x 22 mm |
| CM2024 | 2.0 x 24 mm |
2.3
Screw (Diameter 2.3 mm)
+
CROSS-FIT Screw, locking
| Ref. No. | Diameter x Length |
|---|---|
| CM2306 | 2.3 x 6 mm |
| CM2308 | 2.3 x 8 mm |
| CM2310 | 2.3 x 10 mm |
| CM2312 | 2.3 x 12 mm |
| CM2314 | 2.3 x 14 mm |
| CM2316 | 2.3 x 16 mm |
| CM2318 | 2.3 x 18 mm |
| CM2320 | 2.3 x 20 mm |
| CM2322 | 2.3 x 22 mm |
| CM2324 | 2.3 x 24 mm |
2.7
Screw (Diameter 2.7 mm)
+
CROSS-FIT Screw, locking
| Ref. No. | Diameter x Length |
|---|---|
| CM2708 | 2.7 x 8 mm |
| CM2710 | 2.7 x 10 mm |
| CM2712 | 2.7 x 12 mm |
| CM2714 | 2.7 x 14 mm |
| CM2716 | 2.7 x 16 mm |
| CM2718 | 2.7 x 18 mm |
| CM2720 | 2.7 x 20 mm |
| CM2722 | 2.7 x 22 mm |
| CM2724 | 2.7 x 24 mm |
3.0
Emergency Screw
+
CROSS-FIT Screw, locking
| Ref. No. | Diameter x Length |
|---|---|
| CM3008 | 3.0 x 8 mm |
| CM3010 | 3.0 x 10 mm |
| CM3012 | 3.0 x 12 mm |
| CM3014 | 3.0 x 14 mm |
| CM3016 | 3.0 x 16 mm |
| CM3018 | 3.0 x 18 mm |
| CM3020 | 3.0 x 20 mm |
| CM3022 | 3.0 x 22 mm |
| CM3024 | 3.0 x 24 mm |
Drills
| For Screws | Ref. No. | Diameter x Length | Working Length | End |
|---|---|---|---|---|
| 2.0 | 2000-175 | 1.5 x 50mm | 22mm | Stryker |
| 2.0 | 2000-176 | 1.5 x 105mm | 27mm | Stryker |
| 2.3 | CM2000.01 | 1.9 x 80mm | 27mm | Stryker |
| 2.3 | CM2000.02 | 1.9 x 105mm | 27mm | Stryker |
| 2.7 | CM2000.03 | 2.1 x 80mm | 27mm | Stryker |
| 2.7 | CM2000.04 | 2.1 x 105mm | 27mm | Stryker |

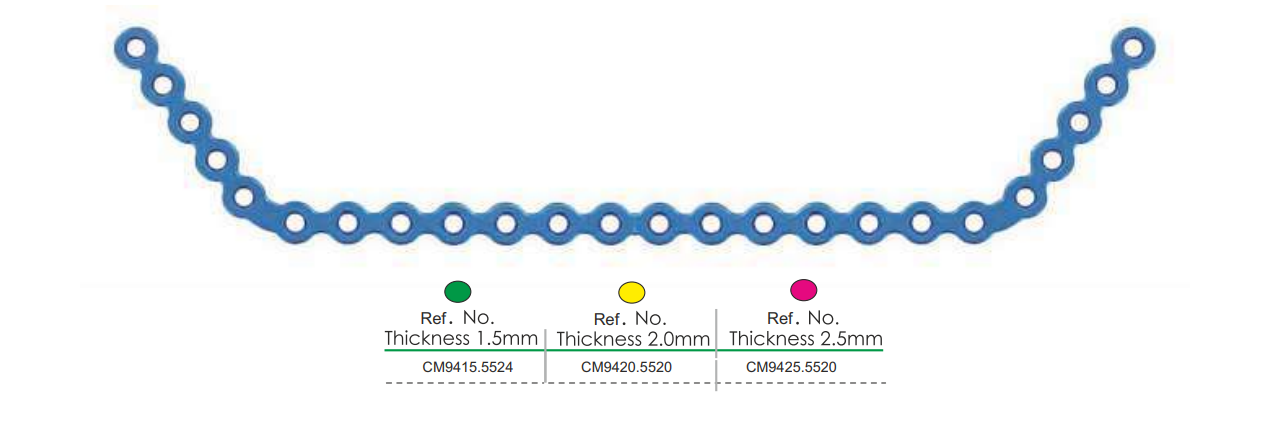

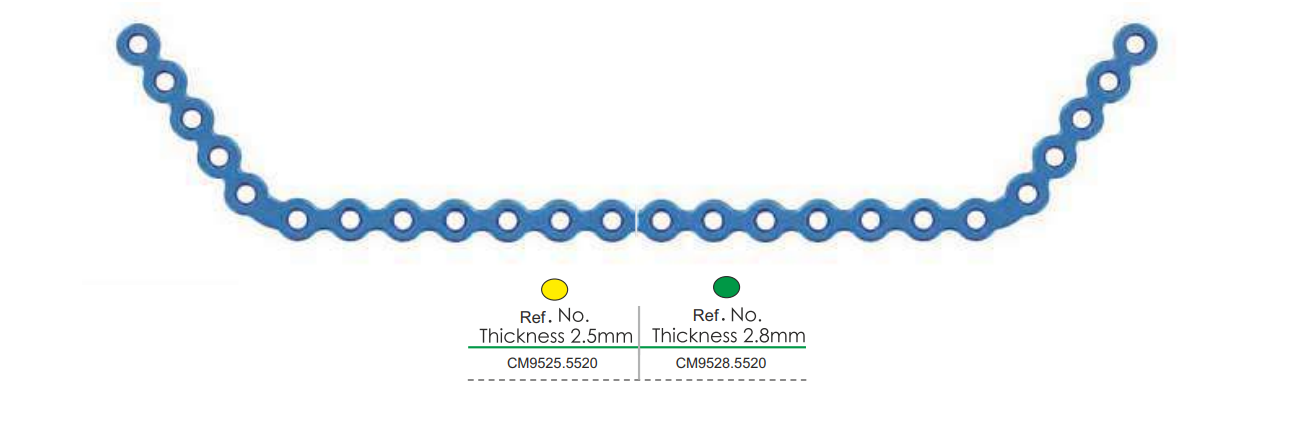

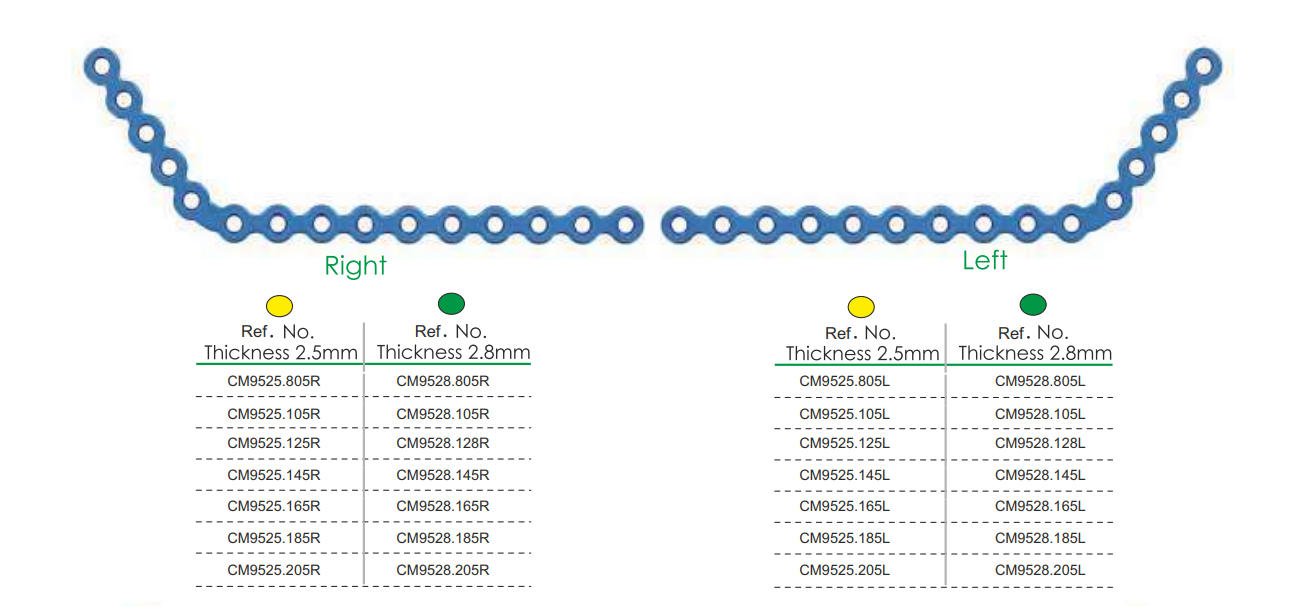

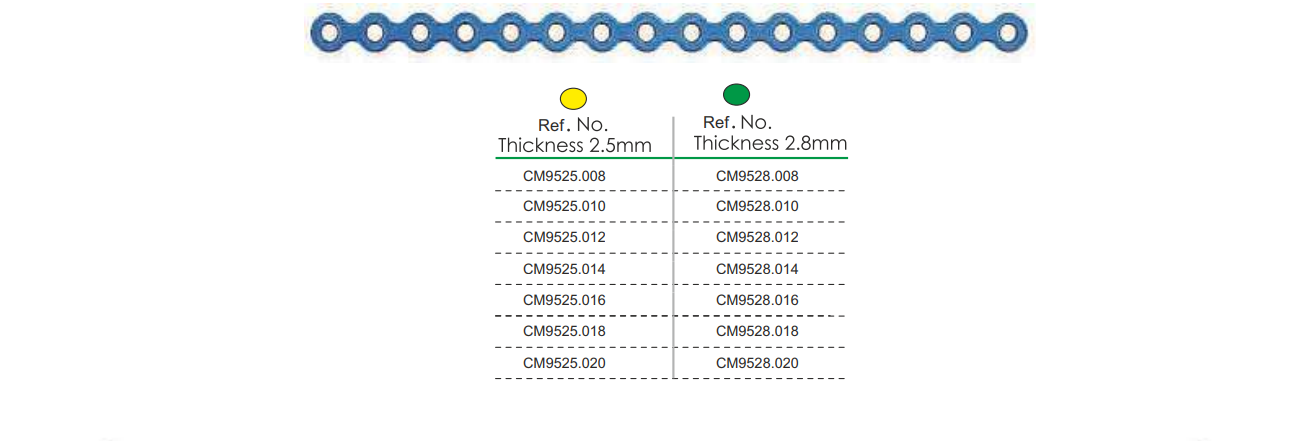

BMR Mandibular Reconstruction
Locking Plates

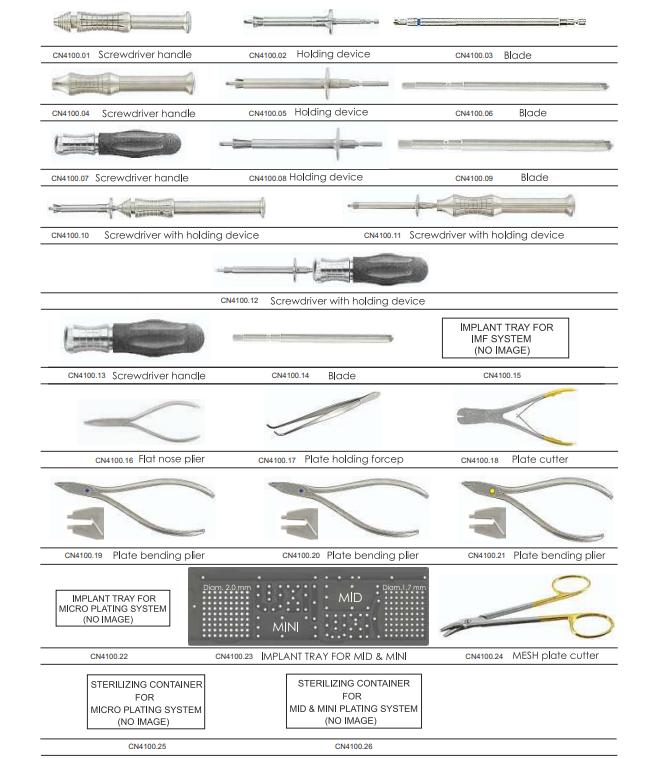

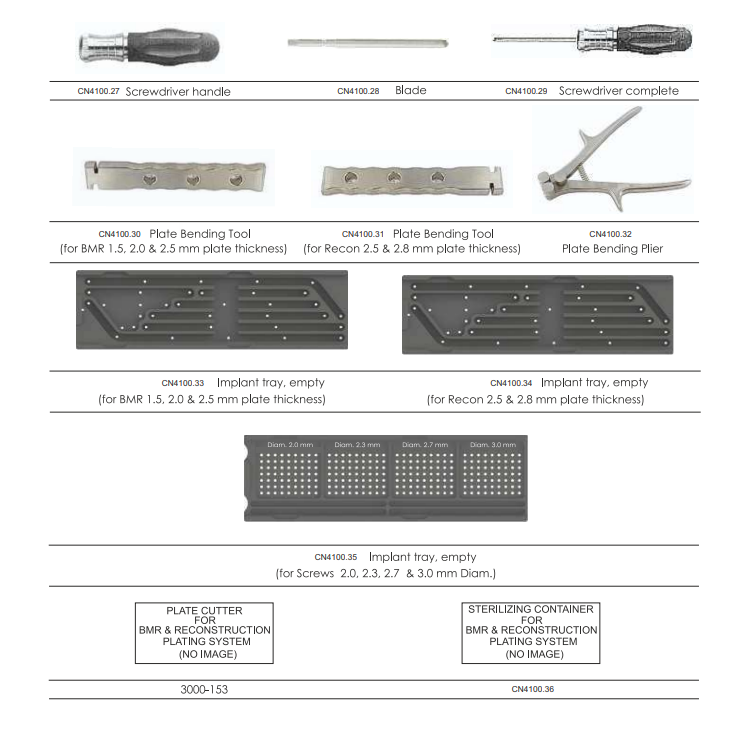

Instruments
Index
| Refrence No. | Description | Page No. |
|---|---|---|
| CM6100-004 | Micro Straight Plate 4 Hole | 5 |
| CM6100-604 | Micro Bar Plata, mm 4-bole | 5 |
| CM6100-904 | Micro Bar Plats, 9 mm 4-hole | 5 |
| CM6100-006 | Micro straight Plate -hole | 5 |
| CM6100-756 | Micro bar Plate 7.1 mm, 6-hole | 5 |
| CM6100-008 | Micro straight Plate B-hole | 5 |
| CM6100-016 | Micro straight Plate 16-hole | 5 |
| CM6200-006 | Micro Orbital Plate. 6-hole | 5 |
| CME200-008 | Micro Orbital Plate, 8-hole | 5 |
| CM6300.007 | Micro T-Plata. 7-hole | 5 |
| CM6300.904 | Micro bar T-Plate, 9 mm 4-hole | 5 |
| CM5400.006 | Micro Double Y-Plate, 6-hole | 5 |
| CM6400.007 | Micro Double Y-Plate, Y-hole | 5 |
| CM6400.106 | Micro Y-Plate, 6-nole | 5 |
| CM6400:804 | Micro Bar Y-Plate, mm 4-holo | 5 |
| CM6400.124 | Micro Bar Y-Plate, 12 mm 4-hole | 5 |
| CM6500.009 | Micro H-Plate 9 hole | 5 |
| CAM6500.014 | Miom H-Plate 14 hole | 5 |
| CM6600.005R | Micro L-Plate, right 5-hole | 5 |
| CM6600.005L | Micro L-Plate, left 5-hole | 5 |
| CM6600.754R | Micro Bar L-Plate, 7.5 mm. right 4-hole | 5 |
| CM6600.754L | Micro-Bar L-Plata, 7.5 mm, lett 4-hole | 5 |
| CM6600.125R | Micro Bar L-Plate, 12 mm, right 5-hole | 5 |
| CM6600.125L | Micro Bar L-Plate, 12 mm, left 5-hole | 5 |
| CME700.003 | Micro CAD-Plate, Trangular 3-hole | 5 |
| CM6700.104 | Micro CAD-Plats, square 4-hole | 5 |
| CM6700.106 | Micro CAD-Plate square 16-hole | 5 |
| CM6700.108 | Micro CAD-Plate, square 8-hole | 5 |
| CM6800.004 | Micro CAD-Plate, rectangular 4-hole | 5 |
| CM6800.006 | Micro CAD-Plate, rectangular 6-hole | 5 |
| CM6800.008B | Micro CAD-Pluste, rectangular -hole | 5 |
| CM9100.0005 | Orbital Floor Plate, Small | 5 |
| CM9100.000M | Orbital Floor Plate, Medium | 5 |
| CM9100.000 | Orbital Floor Plate, Large | 5 |
| CM6500.002 | Mid Plate, 2-hole | 7 |
| CM1900.604 | Mid Bar Plate, 6 mm 4-hole | 7 |
| CM8900.804 | Mid Bar Plate, 8 mm 4-hola | 7 |
| CM8900,124 | Mid Bar Plate, 12 mm 4-hole | 7 |
| CM6900.806 | Mid bar Plate, & mm 6-hole | 7 |
| CMB500.003 | Mid straight Plate, 3-hole | 7 |
| CM5900.004 | Mid straight Plate, 4-hale | 7 |
| CM6900 006 | Mid straight Plate, 6-hole | 7 |
| CME900.008 | Mid straight Plate B-hole | 2 |
| CMB000010 | Mid straight Plate, 10-hole | 7 |
| CM6900.012 | Mid straight Plate, 12-hole | 7 |
| CM6900.014 | Mid straight Plate, 14-hole | 7 |
| CM6900.016 | Mid straight Plate, 16-hole | 7 |
| CME900.018 | Mid Straight Plate, 18-hole | 7 |
| СМЕ900.020 | Mid straight Plate, 20-hois | 7 |
| CM8900.024 | Mid straight Plate, 24-hole | 7 |
| CM7000.004 | Mid Ortital Plate 4-hole | 7 |
| CM7000.006 | Mid Orbital Plate 4-hole | 7 |
| CM7000.008 | Mid Orbital Plate 8-hole | 7 |
| CM7100.006 | Mid T-Plate 6-holm | 7 |
| CM/100.805 | Mid bar T-Plate, 8 mm 5-hole | 7 |
| CM7200.805 | Mid bar Y-Plate, 8 mm 5-hole | 7 |
| CM7200.005 | Mid Y-Plate, 5-hole | 7 |
| CM7200.106 | Mid Double Y-Plate, 6-hole | 77 |
| CM7200.107 | Mid Double Y-Plate, 7-holo | 7 |
| CM7200.806 | Mid bar Double Plate, & mm 6-hole | 7 |
| CM7300.1248 | Mid bar Z-Plate, 12 mm, right 4-hole | 7 |
| CM7300.124L | Mid bar 2-Plala, 12 mm, li 4-hole | 7 |
| CM7400.004R | Mid L-Plate, night 4-hols | 7 |
| CM7400.0041 | Mid L-Platelet 4-hole | 7 |
| CM7400.114R | Mid L-Plate, 110", right 4-hole | 7 |
| CM7400.114L | Mid L-Plate, 110, left 4-hoia | 7 |
| CM7400.604R | Mid bar L-Plate,6 mm, night 4-hole | 7 |
| CM7400.6041 | Mid bar L-Plate, 6 mm, left 4-hois | 7 |
| CM7400.614R | Mid bar L-Plate, 6mm, 110, right 4-hole | 7 |
| CM7400.614L | Mid bar L-Plate, 6 mm. 110", left 4-hole | 7 |
| CM7400.804R | Mid bar L-Plate, & mam, right 4-hole | 7 |
| CM7400.8041 | Mid bar L-Plate, 8 mm, left 4-hole | 7 |
| CM7400.814R | Mid bar L-Plate, 8 mm, 110, nght 4-hole | 7 |
| CM7400 814L | Mid bar L-Plate 8 mm, 110", left 4-hole | 7 |
| CM7400.104R | Mid bar L-Plam, 10mm, night 4-hole | 7 |
| CM7400.104L | Mid bar L-Plate, 10 mm left 4-hoin | 7 |
| CM7410.114R | Mid bar L-Plate, 10 mm, 110, right 4-hole | 7 |
| CM7410.114L | Mid bar L-Plate, 10 mm 1104-hcle | 7 |
| CM7412.114R | Mid bar L-Plate, 12 mm, 110, right 4-hole | 7 |
| CM7412.114L | Mid bar L-Plate, 12 mm. 110, left-4-hole | 7 |
| CM7416.114R | Mid bar L-Plate, 16 mm, 110, night 4-hole | 7 |
| CM7416.114L | Mid bar L-Plata 16 mm, 110", left 4-hole | 7 |
| CM7500.004 | Mid CAD-Plate, square 4-hole | 7 |
| CM7500.006 | Mid CAD-Plate, square 6-hole | 7 |
| CM7500.008 | Mid CAD-Plate, square 6-hole | 7 |
| CM7500.016 | Mid CAD-Plate, square 16-hole | 7 |
| CM7600.004 | Mid CAD-Plate, rectangular 4-hole | 7 |
| CM7600.006 | Mid CAD-Plate, rectangular -hale | 7 |
| CM7600.008 | Mid CAD-Plate, rectangular 8-hole | 7 |
| CM7600.016 | Mid CAD-Plate, rectangular 16-hole | 7 |
| CMB000.0025 | Mini har Plata short, 2-hole | 9 |
| CM8000.002M | Mini bar Plate medium, 2-hole | 9 |
| 2000-0112 | 2-hole Plate, bar 12mm, thickness 0.6 mm | 9 |
| CM8000.0021 | Mini bar Plate long 2-hole | 9 |
| CM100.904 | Mini bar straight Plate, 9 mm 4-hole | 9 |
| CMB100,124 | Mini bar Plate straight 12 mm, 4-hole | 9 |
| CM8100.906 | Mini bar straight Plate, 9 mm, 6-hole | 9 |
| CMB100.0104 | 4-hole Plate, bar 9 mm, straight, thickness 0.6 mm | 9 |
| CMB100.0114 | 4-hole Plate, bar 12 mm, straight, thickness 0.6 mm | 9 |
| CMB100.0106 | 6-hole Plate, bar 9 mm, straight, thickness 0.6 mm | 9 |
| CMB100.004 | Mini straight Plate, 4-hole | 9 |
| CMB100.0004 | 4- hole Plate straight, thickness 0.6 mm | 9 |
| CMB100.005 | Mini straight Plate, Shole | 9 |
| CM0100.006 | Mini straight Plate, 6-hole | 9 |
| CM100.0006 | 6-hole Plate, straight, thickness 0.6 mm | 9 |
| CM8100.008 | Mini straight Plate, Bhole | 9 |
| CMB100.0008 | 8-hole Plate, straight, thickness 0.6 mm | 9 |
| CMB100.010 | Mins straight Plate, 10-hole | 9 |
| CMS 100.012 | Mini straight Plate, 12-hole | 9 |
| CMB100.016 | Mies straight Plata, 16-hole | 9 |
| CMB100.0016 | 16-hole Plate, straight thickness 0.5 mm | 9 |
| CMB 100.020 | Mini straight Plate 20-hole | 9 |
| CM8200.004 | Mini Ortiitar Plate, 4-hole | 9 |
| CMB200.00 | Ostal Plate, 6-hole | 9 |
| CMB100.0206 | 6-hole Orbital Plate, thickness 0.6 mm | 9 |
| CM8200.008 | Mini Orbital Plate. 8-hole | 9 |
| CMB100.0208 | 8-hole Orbital Plate, thickness 0.6 mm | 9 |
| CM8200.010 | Mini Orbital Plate, 10-hole | 9 |
| CMB100.02.10 | 10-hole Orbital Plate, thickness 0.6 mm | 9 |
| CM8400.905 | Mini bar T-Plate, 9 mm 5-hole | 9 |
| CMB400.125 | Mini bar T-Plate 90°, 12 mm 5-hole | 9 |
| CMB400.000 | Mins 7-Plata 90, 6-holo | 9 |
| CMB100.0306 | 6-hole T-Plate 90", thickness 0.6 mm | 9 |
| CM8500.000 | Mini Double T-Plate, 6-hole | 9 |
| CMB100.0316 | 6-hole Double T-Plate, thickness 0.6 mm | 9 |
| CM8500.194 | Mini bar Double T-Plate, 19 mm 4-hole | 9 |
| CMB100.0334 | 4-hole Double T-Plate, bar 19 mm, thickness 0.6 mm | 9 |
| CM8000.005 | Mini Y-Plats, 5-hole | 9 |
| CMB10000405 | 5-hole Y-Plate, thickness 0.6 mm | 9 |
| CM8600.905 | Mini bar Y-Plate 9 mm 5-hola | 9 |
| CM8600.912 | Mini bar Y-Plate, 12 mm 5-hole | 9 |
| CM8700.006 | Mrs Double Y-Ptate, 6-hole | 9 |
| CM8100.0406 | 6-hole Double Y-Plate, thickness 0.6 mm | 9 |
| CM8700.120 | Mini bar Double Y-Plate, 12 mm 6-hole | 9 |
| CMB100.0416 | 6-hole Double Y-Plate, bar 12 mm, thickness 0.6 mm | 9 |
| CM8300.004R | Mini L-Plate, right 4-hole | 9 |
| CM8100.0701 | 4-hole L-Plate, right, thickness 0.6 mm | 9 |
| CMB300.0041 | Mini L-Plate, inft 4-hoie | 9 |
| CMB100.0702 | 4-hole L-Plate, left, thickness 0.6 mm | 9 |
| Refrence No. | Description | Page No. |
|---|---|---|
| CM300.9048 | Mirs bar L-Plate, 9 mm, nghi 4-hole | 9 |
| CMB100.0705 | 4-hole L-Plate, bar 9 mm, right, thickness 0.6 mm. | 9 |
| CM83009041 | Mini bar L-Plate, 5 mm, left 4-hole | 9 |
| CM8100.0706 | 4-hole L-Plate, bar 9 mm, left, thickness 0.6 mm | 9 |
| CMB311.904R | Mini bar L-Plate, 9 mm, 110, nght 4-hole | 9 |
| CMB311.904Left | Mini bar L-Plate, 9 mm, 110 Left 4-hole | 9 |
| CM8300 1248 | Mini bar L-Plate, 12 mm, nghi 4-hole | 9 |
| CMB100.0709 | 4-hole L-Plate, bar 12 mm, right, thickness 0.6 mm | 9 |
| CM8300.124L | Mini bar L-Plate, 12 mm, left 4-hole | 9 |
| CM8100.0710 | 4-hole L-Plate, bar 12 mm, left, thickness 0.6 mm | 9 |
| CM1311.124R | Mini bar L-Plate, 12 mmm, 110", right 4-hale | 9 |
| CM8100.0711 | 4-hole L-Plate, bar 12 mm, 110°, right, thickness 0.6 mm | 9 |
| CMB311.124L | Mini bar L-Plata, 12 mm, 110 left 4-hole | 9 |
| CM8100.0712 | 4-hole L-Plate, bar 12 mm, 110", left, thickness 0.6 mm | 9 |
| CMB300.125R | Mini bar L-Plate, 12 mm, nghi 5-hole | 9 |
| CAM8300.125 | Mini bar L-Plate, 12 mm, left 5-hole | 9 |
| CM8800.004 | Mini CAD-Plate squam, 4-hole | 19 |
| CM8800.006 | Mini CAD-Plate square, hole | 9 |
| CMB800.000 | Mire CAD-Plate squars, hole | 9 |
| CMB900.004 | Mini CAD-Plate rectangular, 4-hole | 9 |
| CM8900.006 | Mini CAD-Plate rectangular 6-hol | 9 |
| CM8900.008 | Mini CAD-Plata rectangular 8-hole | 9 |
| CM8900.016 | Mini CAD-Plate rectangular 16-hole | 9 |
| CM8900.024 | Mini CAD-Plate rectangular 24-hole | 9 |
| CMM9000.004 | Mini Bar Chinplate, 4 mm, thickness 0.6 mm | 9 |
| CMB000.000 | Mini Bar Chinplate, 6 mm, thickness 0.5 mm | 9 |
| CM9000.008 | Mini Bar Chinplate, 8 mm, thickness 0.6 mm | 9 |
| CM9000.010 | Mini Bar Chinplate, 10 mm, thickness 0.6 mm | 9 |
| CM9000.012 | Mimi Bar Chinplate, 12 mm, thickness 0.6 mm | 9 |
| CM9100.004 | Miri Bar Chinplate, 4mm, ickness 10 mm | 9 |
| CM9100.006 | Mini Bar Chinplate, 6 mm, thickness 1.0 mm | 9 |
| CM9100.000 | Mini Bar Chinplate, 8 mm, thickness 1.0 mm | 9 |
| CM9100.010 | Mini Bar Chinplate, 10 mm, thicknes 1.0 mm | 9 |
| CM9100.012 | Mini Bar Chinplate, 12 mm thickness 1.0 mm | 9 |
| CN9210.050000 | Mini CAD mesh, 50 x 50 x 1.0 mm | 9 |
| CN9210,100050 | Mini CAD mesh, 100 x 60 x 10 | 9 |
| CM9315.004 | 4-hole, bar, straight, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9315.006 | 6-hole, bar, straight, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9315.008 | 8-hole, bar, straight, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CMB215.003R | 3+3-hole, right, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9215.0031 | 3+3-hole, left, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415.008 | 8-hole, straight, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415.010 | 10-hole, straight, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415.012 | 12-hole, straight, 1.5mm BMR-Mandibular Reconstruction | 21 |
| CMB415.014 | 14-hole, straight, 1.5mm BMR-Mandibular Reconstruction | 21 |
| CMB415.016 | 16-hole, straight, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415.018 | 18-hole, straight, 1.5mm BMR Mandibular Reconstruction | 11 |
| CM5415.020 | 20-hole, straight, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9420.008 | 8-hole, straight, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CMS420.010 | 10-hole, straight, 2.0mm BMR Mandibular Reconstruction | 11 |
| CMS420.012 | 12-hole, straight, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CMS420014 | 14-hole, straight 2.0mm BMR-Mandibular Reconstruction | 11 |
| CMS420.016 | 16-hole, straight, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9420.018 | 18-hole, straight, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CMB420.020 | 20-hole, straight, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9425.008 | 8-hole, straight, 2.5mm BMR-Mandibular Reconstruction | 21 |
| CM9425.010 | 10-hole, straight, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CMB425.012 | 12-hole, straight, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CM9425.014 | 14-hole, straight, 2.5mm BMR Mandibular Reconstruction | 11 |
| CM5425.016 | 16-hole, straight, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CMS425.018 | 18-hole, straight, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CMB425.020 | 20-hole, straight, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CM5415.806R | 5+8 hole, angled, right, 1.5mm BMR Mandibular Reconstruction | 11 |
| CM9415.106R | 5+10 hole, angled, right, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM5415.125R | 5+12 hole, angled, right, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415. 145R | 5+14 hole, angled, right, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415.165R | 5+16 hole, angled, right. 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415.188R | 5+18 hole, angled, right, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415.205R | 5+20 hole, angled, right, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9420 805R | 5+8 hole, angled, right, 2.0mm BMR-Mandibular Reconstruction. | 11 |
| CM9420.105R | 5+10 hole, angled, right, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9420.125R | 5+12 hole, angled, right, 2.0mm BMR-Mandibular Reconstruction. | 11 |
| CM9420.145R | 5+14 hole, angled, right, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9420.165R | 5+16 hole, angled, right, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9420.185R | 5+18 hole angled, right, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9420 205R | 5+20 hole, angled, right, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9425.805R | 5+8 hole, angled, right, 2.5mm BMR Mandibular Reconstruction | 11 |
| CM9425.105R | 5+10 hole, angled, right, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CM9425.125R | 5+12 hole, angled, right, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CM9425.145R | 5+14 hole, angled, right, 2.5mm BMR Mandibular Reconstruction | 11 |
| CM9425,165R | 5+16 hole, angled, right, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CM9425 185R | 5+18 hole, angled, right, 2.5mm BMR-Mandibular Reconstruction. | 11 |
| CM9425.205R | 5+20 hole, angled, right, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415 805L | 5+8 hole, angled, left, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415 105L | 5+10 hole, angled, left, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM94 15.125L | 5+12 hole, angled, left, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415.145L | 5+14 hole, angled, left, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415.165L | 5+16 hole, angled, left, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM94 15.185L | 5+18 hole, angled, left, 1.5mm. BMR-Mandibular Reconstruction | 11 |
| CM94 15 205L | 5+20 hole, angled, left, 1.5mm. BMR-Mandibular Reconstruction | 11 |
| CM9420.805L | 5+8 hole, angled, left, 2.0mm BMR-Mandibular Reconstruction. | 11 |
| CM9420.105L | 5+10 hole, angled, left, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9420.125L | 5+12 hole, angled, left, 2.0mm SMR-Mandibular Reconstruction | 11 |
| CM9420145L | 5+14 hole, angled, left, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9420.165L | 5+16 hole, angled, left, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9420185L | 5+18 hole, angled, left, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9420 205L | 5+20 hole, angled, left, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CM9425.805L | 5+8 hole, angled, left, 2.5mm BMR-Mandibular Reconstruction. | 11 |
| CM9425.105L | 5+10 hole, angled, left, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CM9425.125L | 5+12 hole, angled, left, 2.5mm BMR-Mandibular Reconstruction | 11 |
| Refrence No. | Description | Page No. |
|---|---|---|
| CM9425.145L | 5+14 hole, angled, left, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CM9425.165L | 5+16 hole, angled, left, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CMB425.185L | 5+18 hole, angled, left, 2.5mm BMR-Mandibular Reconstruction. | 11 |
| CM9425.206L | 5+20 hole, angled, left, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CM9415.5534 | 5+24+5 hole, complete mandible, 1.5mm BMR-Mandibular Reconstruction | 11 |
| CM9420.5520 | 5+20+5 hole, complete mandible, 2.0mm BMR-Mandibular Reconstruction | 11 |
| CMB425 5520 | 5+20+5 hole, complete mandible, 2.5mm BMR-Mandibular Reconstruction | 11 |
| CM9525.008 | 8-hole, straight, 2.5mm Mandibular Reconstruction | 12 |
| CM9525.010 | 10-hole, straight, 2.5mm Mandibular Reconstruction | 12 |
| CM9525.012 | 12-hole, straight, 2.5mm. Mandibular Reconstruction | 12 |
| CMB525.014 | 14-hole, straight, 2.5mm Mandibular Reconstruction | 12 |
| CM9525.016 | 16-hole, straight, 2.5mm Mandibular Reconstruction | 12 |
| CM9525.018 | 18-hole, straight, 2.5mm Mandibular Reconstruction | 12 |
| CM9525.020 | 20-hole, straight, 2.5mm Mandibular Reconstruction | 12 |
| CM9528.008 | 8 hole, straight, 2.8mm Mandibular Reconstruction | 12 |
| CM9528.010 | 10-hole, straight, 2.8mm Mandibular Reconstruction | 12 |
| CM9528.012 | 12-hole, straight, 2.8mm Mandibular Reconstruction | 12 |
| CM9528.014 | 14-hole, straight, 2.8mm Mandibular Reconstruction | 12 |
| CMB528.016 | 16-hole, straight, 2.8mm Mandibular Reconstruction | 12 |
| CM9529.018 | 18-hole, straight, 2.8mm Mandibular Reconstruction | 12 |
| CM9528.020 | 20-hole, straight, 2.8mm Mandibular Reconstruction | 12 |
| CM9525 805R | 5+8 hole, angled, right, 2.5mm Mandibular Reconstruction | 12 |
| CM9525 105R | 5+10 hole, angled, right, 2.5mm Mandibular Reconstruction | 12 |
| CM0525.125R | 5+12 hole, angled, right, 2.5mm Mandibular Reconstruction | 12 |
| CMB525 145R | 5+14 hole, angled, right, 2.5mm Mandibular Reconstruction | 12 |
| CM9525 165R | 5+16 hole, angled, right, 2.5mm Mandibular Reconstruction | 12 |
| CM9525 185R | 5+18 hole, angled, right, 2.5mm Mandibular Reconstruction | 12 |
| CM9525 205R | 5+20 hole, angled, right, 2.5mm Mandibular Reconstruction | 12 |
| CM9528.805R | 5+8 hole, angled, right, 2.8mm Mandibular Reconstruction | 12 |
| CM9528.105R | 5+10 hole, angled, right, 2.8mm Mandibular Reconstruction. | 12 |
| CM9528 128R | 5+12 hole, angled, right, 2.8mm Mandibular Reconstruction | 12 |
| CM9528.145R | 5+14 hole, angled, right, 2.8mm Mandibular Reconstruction | 12 |
| CM9528.165R | 5+16 hole, angled, right, 2.8mm Mandibular Reconstruction | 12 |
| CM9528.185R | 5+18 hole, angled, right, 2.8mm Mandibular Reconstruction | 12 |
| CM9528.205R | 5+20 hole, angled, right, 2.8mm Mandibular Reconstruction | 12 |
| CM9525.805L | 5+8 hole, angled, left, 2.5mm Mandibular Reconstruction | 12 |
| CM9525.105 | 5+10 hole, angled, left, 2.5mm. Mandibular Reconstruction | 12 |
| CM9525 125L | 5+12 hole, angled, left, 2.5mm Mandibular Reconstruction | 12 |
| CM9525.145 | 5+14 hole, angled, left, 2.5mm Mandibular Reconstruction | 12 |
| CM9525 165 | 5+16 hole, angled, left, 2.5mm Mandibular Reconstruction | 12 |
| CM9525.185 | 5+18 hole, angled, left, 2.5mm Mandibular Reconstruction | 12 |
| CM9525.205L | 5+20 hole, angled, left, 2.5mm Mandibular Reconstruction | 12 |
| CM9528.805L | 5+8 hole, angled, left, 2.8mm Mandibular Reconstruction | 12 |
| CM9528.105L | 5+10 hole, angled, left, 2.1mm Mandibular Reconstruction | 12 |
| CM9528.128L | 5+12 hole, angled, left, 2. limm Mandibular Reconstruction | 12 |
| CM9528.145 | 5+14 hole, angled, left, 2.8mm Mandibular Reconstruction | 12 |
| CAM9528.165 | 5+16 hole, angled, left, 2.8mm Mandibular Reconstruction | 12 |
| CM9529.185 | 5+18 hole, angled, left, 2.8mm. Mandibular Reconstruction | 12 |
| CM9528.200 | 5+20 hole, angled, left, 2.8mm Mandibular Reconstruction | 12 |
| CM9525.5620 | 5+20+5 hole, complete mandible, 2.5mm Mandibular Reconstruction | 12 |
| CM9528.5620 | 5+20+5 hole, complete mandible, 2.8mm Mandibular Reconstruction | 12 |
Maxillofacial Manufacturer in India
Ortho Care is a good maxillofacial manufacturer in India. The business enterprise focuses on advanced neuro planting structures that can be dispensed to clinical establishments globally. These systems are engineered to improve the precision and effectiveness of neural implants, supplying important support to neurosurgeons during vital surgical processes. Manufactured by the usage of modern technology, Ortho Care's neuro planting systems intend to obtain the greatest patient consequences at the same time as prioritizing protection.
Maxillofacial Supplier in India
As a main maxillofacial supplier in India, Ortho Care offers a comprehensive variety of maxillofacial surgical systems to hospitals, clinics, and healthcare vendors. Our products consist of several bone plates, screws, and devices specifically designed for jaw and facial surgical procedures. We ensure nicely-timed transport and true customer support, making us a dependable desire for healthcare experts in India.
Maxillofacial Exporter in India
Ortho Care is a leading maxillofacial exporter in India, supplying superior surgical answers for facial and jaw surgeries. Our maxillofacial merchandise, consisting of plates, screws, and surgical gear, is engineered to fulfil international exceptional requirements, imparting surgeons reliable and robust devices for precise strategies. Depending on the exporter, we supply our maxillofacial solutions to hospitals and clinics globally, making sure healthcare vendors in India have the proper access to excellent merchandise for the maximum beneficial surgical effects.
