Non-Locking Plate Manufacturer in India
Non-Locking Plate
Non-locking plates are adaptable Orthopedic implants that provide efficient bone stability in various surgical procedures. Unlike locking plates, these plates achieve stability through compression between the plate and the bone, which allows for natural bone healing and remodelling. Non-locking plates, made with high-precision engineering, provide strong and reliable support for fracture treatment, making them a trusted choice among Orthopedic professionals.
Non-locking plates are available in various shapes and sizes to accommodate anatomical structures and surgical requirements. They can be used in both simple and complex fractures, often in combination with standard bone screws to enhance fixation strength. Their flexibility and adaptability make them ideal for cases that require dynamic compression, promoting faster recovery and improved patient outcomes.
NON-LOCKING PLATES

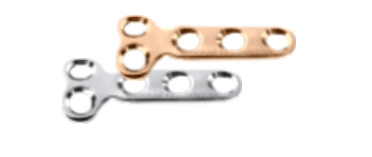

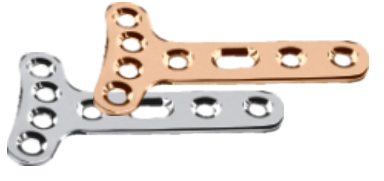

1. T-Plate (for 4.5mm Screws)
Placa en T (para tornillos de 4,5 mm)
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 2.0mm |
| Width | 17.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 637.03-Ti | 637.03 | 3H |
| 637.04-Ti | 637.04 | 4H |
| 637.05-Ti | 637.05 | 5H |
| 637.06-Ti | 637.06 | 6H |
| 637.07-Ti | 637.07 | 7H |
| 637.08-Ti | 637.08 | 8H |
| 637.09-Ti | 637.09 | 9H |
| 637.10-Ti | 637.10 | 10H |
| 637.11-Ti | 637.11 | 11H |
| 637.12-Ti | 637.12 | 12H |

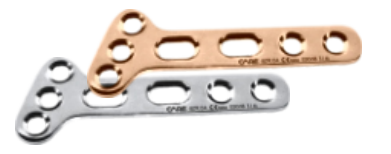

2. L-Plate (for 4.5mm Screws - Right)
Placa en L (para tornillos de 4,5 mm - derecha)
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 2.0mm |
| Width | 16.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 637.03R-Ti | 637.03R | 3H |
| 637.04R-Ti | 637.04R | 4H |
| 637.05R-Ti | 637.05R | 5H |
| 637.06R-Ti | 637.06R | 6H |
| 637.07R-Ti | 637.07R | 7H |
| 637.08R-Ti | 637.08R | 8H |
| 637.09R-Ti | 637.09R | 9H |
| 637.10R-Ti | 637.10R | 10H |
| 637.11R-Ti | 637.11R | 11H |
3. L-Plate (for 4.5mm Screws - Left)
Placa en L (para tornillos de 4,5 mm - izquierda)
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 2.0mm |
| Width | 16.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 637.03L-Ti | 637.03L | 3H |
| 637.04L-Ti | 637.04L | 4H |
| 637.05L-Ti | 637.05L | 5H |
| 637.06L-Ti | 637.06L | 6H |
| 637.07L-Ti | 637.07L | 7H |
| 637.08L-Ti | 637.08L | 8H |
| 637.09L-Ti | 637.09L | 9H |
| 637.10L-Ti | 637.10L | 10H |
| 637.11L-Ti | 637.11L | 11H |

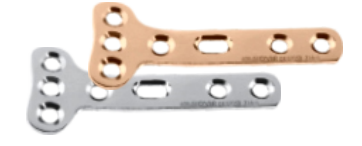

4. T-Buttress Plate (for 4.5mm Screws)
Placa de refuerzo en T (para tornillos de 4,5 mm)
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 2.0mm |
| Width | 17.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 638.04-Ti | 638.04 | 4H |
| 638.05-Ti | 638.05 | 5H |
| 638.06-Ti | 638.06 | 6H |
| 638.07-Ti | 638.07 | 7H |
| 638.08-Ti | 638.08 | 8H |
| 638.09-Ti | 638.09 | 9H |
| 638.10-Ti | 638.10 | 10H |
| 638.11-Ti | 638.11 | 11H |
| 638.12-Ti | 638.12 | 12H |

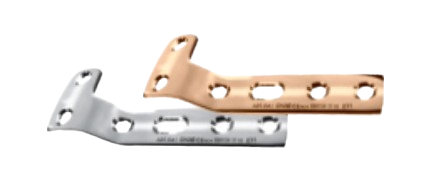

5. L-Buttress Plate For 4.5mm Screws (Right)
Placa de refuerzo en L para tornillos de 4,5 mm (derecha)
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 2.0mm |
| Width | 16.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 639.03R-Ti | 639.03R | 3H |
| 639.04R-Ti | 639.04R | 4H |
| 639.05R-Ti | 639.05R | 5H |
| 639.06R-Ti | 639.06R | 6H |
| 639.07R-Ti | 639.07R | 7H |
| 639.08R-Ti | 639.08R | 8H |
| 639.09R-Ti | 639.09R | 9H |
| 639.10R-Ti | 639.10R | 10H |
| 639.11R-Ti | 639.11R | 11H |

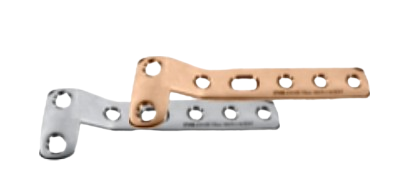

6. L-Buttress Plate For 4.5mm Screws (Left)
Placa de refuerzo en L para tornillos de 4,5 mm (izquierda)
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 2.0mm |
| Width | 16.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 639.03L-Ti | 639.03L | 3H |
| 639.04L-Ti | 639.04L | 4H |
| 639.05L-Ti | 639.05L | 5H |
| 639.06L-Ti | 639.06L | 6H |
| 639.07L-Ti | 639.07L | 7H |
| 639.08L-Ti | 639.08L | 8H |
| 639.09L-Ti | 639.09L | 9H |
| 639.10L-Ti | 639.10L | 10H |
| 639.11L-Ti | 639.11L | 11H |
7. Mini Straight Plate For 2mm Screws
Mini Placa Recta Para Tornillos 2mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 0.9mm |
| Width | 5.0mm |
| Hole Spacing | 6.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 617.03-Ti | 617.03 | 3H |
| 617.04-Ti | 617.04 | 4H |
| 617.05-Ti | 617.05 | 5H |
| 617.06-Ti | 617.06 | 6H |
| 617.07-Ti | 617.07 | 7H |
| 617.08-Ti | 617.08 | 8H |
8. Mini L-Plate For 2mm Screws
Mini placa en L para tornillos de 2 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 1.0mm |
| Width | 5.0mm |
| Hole Spacing | 6.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 618.01-Ti | 618.01 | Left |
| 618.02-Ti | 618.02 | Right |
9. Semi Tubular Plate (For 4.5mm Screws)
Placa Semi Tubular (Para Tornillos 4.5mm)
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 1.0mm |
| Width | 11.0mm |
| Hole Spacing | 16mm & 26mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 634.02-Ti | 634.02 | 2H |
| 634.03-Ti | 634.03 | 3H |
| 634.04-Ti | 634.04 | 4H |
| 634.05-Ti | 634.05 | 5H |
| 634.06-Ti | 634.06 | 6H |
| 634.07-Ti | 634.07 | 7H |
| 634.08-Ti | 634.08 | 8H |
| 634.09-Ti | 634.09 | 9H |
| 634.10-Ti | 634.10 | 10H |
| 634.11-Ti | 634.11 | 11H |
| 634.12-Ti | 634.12 | 12H |

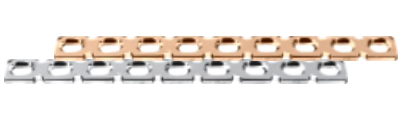

9. Narrow Dynamic Compression Plate (For 4.5mm Screws)
Placa de compresión dinámica estrecha (para tornillos de 4,5 mm)
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 3.6mm |
| Width | 12.0mm |
| Hole Spacing | 16mm & 25mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 635.02-Ti | 635.02 | 2H |
| 635.03-Ti | 635.03 | 3H |
| 635.04-Ti | 635.04 | 4H |
| 635.05-Ti | 635.05 | 5H |
| 635.06-Ti | 635.06 | 6H |
| 635.07-Ti | 635.07 | 7H |
| 635.08-Ti | 635.08 | 8H |
| 635.09-Ti | 635.09 | 9H |
| 635.10-Ti | 635.10 | 10H |
| 635.11-Ti | 635.11 | 11H |
| 635.12-Ti | 635.12 | 12H |
| 635.13-Ti | 635.13 | 13H |
| 635.14-Ti | 635.14 | 14H |
| 635.15-Ti | 635.15 | 15H |
| 635.16-Ti | 635.16 | 16H |
| 635.17-Ti | 635.17 | 17H |
| 635.18-Ti | 635.18 | 18H |
| 635.19-Ti | 635.19 | 19H |
| 635.20-Ti | 635.20 | 20H |

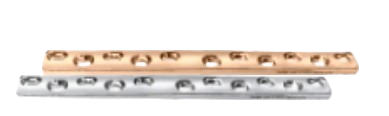

11. Broad Dynamic Compression Plate (For 4.5mm Screws)
Placa de compresión dinámica ancha (para tornillos de 4,5 mm)
| Especificación Técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 4.5mm |
| Width | 16.0mm |
| Hole Spacing | 16mm & 25mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero Inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 636.02-Ti | 636.02 | 2H |
| 636.03-Ti | 636.03 | 3H |
| 636.04-Ti | 636.04 | 4H |
| 636.05-Ti | 636.05 | 5H |
| 636.06-Ti | 636.06 | 6H |
| 636.07-Ti | 636.07 | 7H |
| 636.08-Ti | 636.08 | 8H |
| 636.09-Ti | 636.09 | 9H |
| 636.10-Ti | 636.10 | 10H |
| 636.11-Ti | 636.11 | 11H |
| 636.12-Ti | 636.12 | 12H |
| 636.13-Ti | 636.13 | 13H |
| 636.14-Ti | 636.14 | 14H |
| 636.15-Ti | 636.15 | 15H |
| 636.16-Ti | 636.16 | 16H |
| 636.17-Ti | 636.17 | 17H |
| 636.18-Ti | 636.18 | 18H |
| 636.19-Ti | 636.19 | 19H |
| 636.20-Ti | 636.20 | 20H |

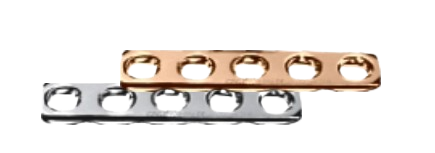

12. Small LC-DCP For 3.5mm Screws
LC-DCP pequeño para tornillos de 3,5 mm
| Especificación Técnica Technical Specification |
Tamaño Size |
|---|---|
| Thicknessr | 4.0mm |
| Width | 11.0mm |
| Hole Spacing | 13.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero Inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 627.04A-Ti | 627.04A | 4H |
| 627.05A-Ti | 627.05A | 5H |
| 627.06A-Ti | 627.06A | 6H |
| 627.07A-Ti | 627.07A | 7H |
| 627.08A-Ti | 627.08A | 8H |
| 627.09A-Ti | 627.09A | 9H |
| 627.10A-Ti | 627.10A | 10H |
| 627.11A-Ti | 627.11A | 11H |
| 627.12A-Ti | 627.12A | 12H |
13. Mini T-Plate For 2mm Screws
Mini placa en T para tornillos de 2 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 1.0mm |
| Width | 5.0mm |
| Hole Spacing | 6.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
|---|---|
| 619.00-Ti | 619.00 |
14. Dynamic Compression Plates For 2mm Screws
Placas de compresión dinámicas para tornillos de 2 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness (4 to 6 Holes) | 1.0mm |
| Thickness (7 & 8 Holes) | 1.5mm |
| Width | 5.0mm |
| Hole Spacing | 5.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 908.03-Ti | 908.03 | 3H |
| 908.04-Ti | 908.04 | 4H |
| 908.05-Ti | 908.05 | 5H |
| 908.06-Ti | 908.06 | 6H |
| 908.07-Ti | 908.07 | 7H |
| 908.08-Ti | 908.08 | 8H |
15. Quarter Tubular Plate For 2.7mm Screws
Placa tubular de un cuarto para tornillos de 2,7 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 1.0mm |
| Width | 7.0mm |
| Hole Spacing | 8.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 620.03-Ti | 620.03 | 3H |
| 620.04-Ti | 620.04 | 4H |
| 620.05-Ti | 620.05 | 5H |
| 620.06-Ti | 620.06 | 6H |
| 620.07-Ti | 620.07 | 7H |
| 620.08-Ti | 620.08 | 8H |
16. L-Plates For 2.7mm Screws
Placas en L para tornillos de 2,7 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 1.2mm |
| Width | 7.0mm |
| Hole Spacing | 8.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 622.01-Ti | 622.01 | Right |
| 622.02-Ti | 622.02 | Left |
17. T-Plates For 2.7mm Screws
Placas en T para tornillos de 2,7 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 1.0mm |
| Width | 7.0mm |
| Hole Spacing | 8.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
|---|---|
| 623.03-Ti | 623.03 |
18. Dynamic Compression Plates For 2.7mm Screws
Placas de compresión dinámicas para tornillos de 2,7 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness (4 to 6 Holes) | 2.0mm |
| Thickness (7 to 12 Holes) | 2.5mm |
| Width | 8.0mm |
| Hole Spacing | 8.0mm & 12.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 621.02-Ti | 621.02 | 2H |
| 621.03-Ti | 621.03 | 3H |
| 621.04-Ti | 621.04 | 4H |
| 621.05-Ti | 621.05 | 5H |
| 621.06-Ti | 621.06 | 6H |
| 621.07-Ti | 621.07 | 7H |
| 621.08-Ti | 621.08 | 8H |
| 621.09-Ti | 621.09 | 9H |
| 621.10-Ti | 621.10 | 10H |
| 621.11-Ti | 621.11 | 11H |
| 621.12-Ti | 621.12 | 12H |
19. Straight Reconstruction Plate For 2.7mm Screws
Placa de reconstrucción recta para tornillos de 2,7 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 3.1mm |
| Width | 8.0mm |
| Hole Spacing | 8.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 624.03-Ti | 624.03 | 3H |
| 624.04-Ti | 624.04 | 4H |
| 624.05-Ti | 624.05 | 5H |
| 624.06-Ti | 624.06 | 6H |
| 624.07-Ti | 624.07 | 7H |
| 624.08-Ti | 624.08 | 8H |
| 624.09-Ti | 624.09 | 9H |
| 624.10-Ti | 624.10 | 10H |
| 624.12-Ti | 624.12 | 12H |
| 624.14-Ti | 624.14 | 14H |
| 624.16-Ti | 624.16 | 16H |
| 624.18-Ti | 624.18 | 18H |
| 624.20-Ti | 624.20 | 20H |
| 624.22-Ti | 624.22 | 22H |
| 624.24-Ti | 624.24 | 24H |
20. Pelvic Reconstruction Plate (For 4.5mm Screws)
Placa de reconstrucción pélvica (para tornillos de 4,5 mm)
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 2.8mm |
| Width | 12.0mm |
| Hole Spacing | 16.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 633.03-Ti | 624.03 | 3H |
| 633.04-Ti | 624.04 | 4H |
| 633.05-Ti | 624.05 | 5H |
| 633.06-Ti | 624.06 | 6H |
| 633.07-Ti | 624.07 | 7H |
| 633.08-Ti | 624.08 | 8H |
| 633.09-Ti | 624.09 | 9H |
| 633.10-Ti | 624.10 | 10H |
| 633.11-Ti | 624.11 | 11H |
| 633.12-Ti | 624.12 | 12H |
| 633.13-Ti | 624.13 | 13H |
| 633.14-Ti | 624.14 | 14H |
| 633.15-Ti | 624.15 | 15H |
| 633.16-Ti | 624.16 | 16H |
| 633.17-Ti | 624.17 | 17H |
| 633.18-Ti | 624.18 | 18H |
| 633.19-Ti | 624.19 | 19H |
| 633.20-Ti | 624.20 | 20H |
| 633.21-Ti | 624.21 | 21H |
| 633.22-Ti | 624.22 | 22H |
| 633.23-Ti | 624.23 | 23H |
| 633.24-Ti | 624.24 | 24H |

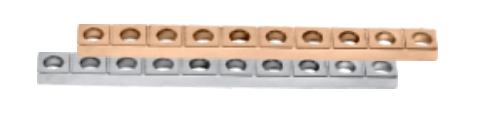

21. Dynamic Compression Plate (3.5mm)
Placa de compresión dinámica (3,5 mm)
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 3.0mm |
| Width | 10.0mm |
| Hole Spacing | 12mm & 16mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 626.02-Ti | 626.02 | 2H |
| 626.03-Ti | 626.03 | 3H |
| 626.04-Ti | 626.04 | 4H |
| 626.05-Ti | 626.05 | 5H |
| 626.06-Ti | 626.06 | 6H |
| 626.07-Ti | 626.07 | 7H |
| 626.08-Ti | 626.08 | 8H |
| 626.09-Ti | 626.09 | 9H |
| 626.10-Ti | 626.10 | 10H |
| 626.11-Ti | 626.11 | 11H |
| 626.12-Ti | 626.12 | 12H |
| 626.13-Ti | 626.13 | 13H |
| 626.14-Ti | 626.14 | 14H |
| 626.15-Ti | 626.15 | 15H |
| 626.16-Ti | 626.16 | 16H |

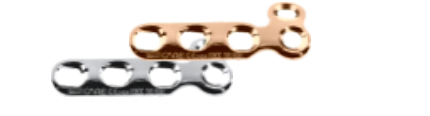

22. T-Plate (Right Angled) For 3.5mm Screws
Placa en T (ángulo recto) para tornillos de 3,5 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 1.2mm |
| Width | 10.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 628.03-Ti | 628.03 | 3H |
| 628.04-Ti | 628.04 | 4H |
| 628.05-Ti | 628.05 | 5H |
| 628.06-Ti | 628.06 | 6H |
| 628.07-Ti | 628.07 | 7H |
| 628.08-Ti | 628.08 | 8H |
| 628.09-Ti | 628.09 | 9H |
| 628.10-Ti | 628.10 | 10H |

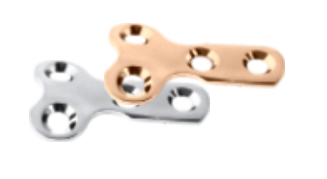

23. T-Plate (Right Angled) Head 4 Holes
Placa en T (ángulo recto) Cabeza 4 agujeros
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 1.2mm |
| Width | 11.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 628.403-Ti | 628.403 | 3H |
| 628.404-Ti | 628.404 | 4H |
| 628.405-Ti | 628.405 | 5H |
| 628.406-Ti | 628.406 | 6H |
| 628.407-Ti | 628.407 | 7H |
| 628.408-Ti | 628.408 | 8H |
| 628.409-Ti | 628.409 | 9H |
| 628.410-Ti | 628.410 | 10H |
24. T-Plate (Oblique Angled) For 3.5mm Screws
Placa en T (ángulo oblicuo) para tornillos de 3,5 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 1.5mm |
| Width | 10.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 629.03-Ti | 629.03 | 3H |
| 629.04-Ti | 629.04 | 4H |
| 629.05-Ti | 629.05 | 5H |
| 629.06-Ti | 629.06 | 6H |
| 629.07-Ti | 629.07 | 7H |
| 629.08-Ti | 629.08 | 8H |
| 629.09-Ti | 629.09 | 9H |
| 629.10-Ti | 629.10 | 10H |
25. Narrow LC-DCP For 4.5mm Screws
Estrecha LC-DCP para tornillos de 4.5 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 4.6mm |
| Width | 13.5mm |
| Hole Spacing | 18.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 627.04B-Ti | 627.04B | 4H |
| 627.05B-Ti | 627.05B | 5H |
| 627.06B-Ti | 627.06B | 6H |
| 627.07B-Ti | 627.07B | 7H |
| 627.08B-Ti | 627.08B | 8H |
| 627.09B-Ti | 627.09B | 9H |
| 627.10B-Ti | 627.10B | 10H |
| 627.11B-Ti | 627.11B | 11H |
| 627.12B-Ti | 627.12B | 12H |
| 627.13B-Ti | 627.13B | 13H |
| 627.14B-Ti | 627.14B | 14H |
| 627.15B-Ti | 627.15B | 15H |
| 627.16B-Ti | 627.16B | 16H |
26. Broad LC-DCP For 4.5mm Screws
Amplio LC-DCP para tornillos de 4,5 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 6.0mm |
| Width | 17.5mm |
| Hole Spacing | 18.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 627.04C-Ti | 627.04C | 4H |
| 627.05C-Ti | 627.05C | 5H |
| 627.06C-Ti | 627.06C | 6H |
| 627.07C-Ti | 627.07C | 7H |
| 627.08C-Ti | 627.08C | 8H |
| 627.09C-Ti | 627.09C | 9H |
| 627.10C-Ti | 627.10C | 10H |
| 627.11C-Ti | 627.11C | 11H |
| 627.12C-Ti | 627.12C | 12H |
| 627.14C-Ti | 627.14C | 14H |
| 627.16C-Ti | 627.16C | 16H |
| 627.18C-Ti | 627.18C | 18H |

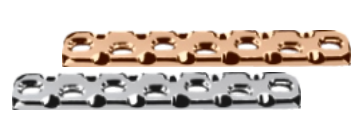

27. One Third Tubular Plate 3.5mm Screws
Placa tubular de un tercio con tornillos de 3,5 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 1.0mm |
| Width | 9.0mm |
| Hole Spacing | 12mm & 16mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 625.04-Ti | 627.04A | 4H |
| 625.05-Ti | 627.05A | 5H |
| 625.06-Ti | 627.06A | 6H |
| 625.07-Ti | 627.07A | 7H |
| 625.08-Ti | 627.08A | 8H |
| 625.09-Ti | 627.09A | 9H |
| 625.10-Ti | 627.10A | 10H |
| 625.11-Ti | 627.11A | 11H |
| 625.12-Ti | 627.12A | 12H |
| 625.13-Ti | 627.13A | 13H |
28. One Third Tubular Plate 3.5mm Screws with Collar
Placa tubular de un tercio Tornillos de 3,5 mm con collar
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 1.0mm |
| Width | 9.0mm |
| Hole Spacing | 12mm & 16mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 625.02C-Ti | 625.02C | 2H |
| 625.03C-Ti | 625.03C | 3H |
| 625.04C-Ti | 625.04C | 4H |
| 625.05C-Ti | 625.05C | 5H |
| 625.06C-Ti | 625.06C | 6H |
| 625.07C-Ti | 625.07C | 7H |
| 625.08C-Ti | 625.08C | 8H |
| 625.09C-Ti | 625.09C | 9H |
| 625.10C-Ti | 625.10C | 10H |
| 625.12C-Ti | 625.12C | 12H |
29. Clover Leaf Plate
Plato de hoja de trébol
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 2.0mm |
| Shaft Width | 15.2mm |
| Cloverleaf Thickness | 1.2mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 632.03-Ti | 632.03 | 3H |
| 632.04-Ti | 632.04 | 4H |
| 632.05-Ti | 632.05 | 5H |
| 632.06-Ti | 632.06 | 6H |
| 632.07-Ti | 632.07 | 7H |
| 632.08-Ti | 632.08 | 8H |
| 632.09-Ti | 632.09 | 9H |
| 632.10-Ti | 632.10 | 10H |
| 632.11-Ti | 632.11 | 11H |
| 632.12-Ti | 632.12 | 12H |

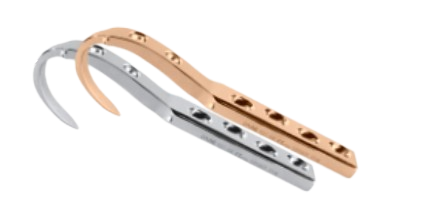

30. Hook Plate (3.5mm)
Placa de gancho (3,5 mm)
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 910.02-Ti | 910.02 | 2H |
| 910.03-Ti | 910.03 | 3H |
| 910.04-Ti | 910.04 | 4H |
| 910.05-Ti | 910.05 | 5H |
| 910.06-Ti | 910.06 | 6H |
| 910.07-Ti | 910.07 | 7H |
| 910.08-Ti | 910.08 | 8H |
| 910.09-Ti | 910.09 | 9H |
| 910.10-Ti | 910.10 | 10H |

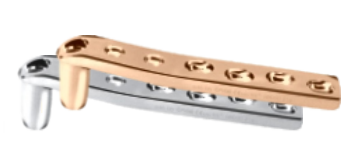

31. D.C.S Barrel Plate 95° with Dynamic Holes
D.C.S Barrel Plate 95° with Dynamic Holes
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 5.4mm |
| Width | 16.0mm |
| Hole Spacing | 16.0mm |
| Outer Barrel Dia | 12.5mm |
| Barrel Length | 25.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 646.06-Ti | 646.06 | 6H |
| 646.07-Ti | 646.07 | 7H |
| 646.08-Ti | 646.08 | 8H |
| 646.09-Ti | 646.09 | 9H |
| 646.10-Ti | 646.10 | 10H |
| 646.11-Ti | 646.11 | 11H |
| 646.12-Ti | 646.12 | 12H |
| 646.13-Ti | 646.13 | 13H |
| 646.14-Ti | 646.14 | 14H |
| 646.15-Ti | 646.15 | 15H |
| 646.16-Ti | 646.16 | 16H |
| 646.18-Ti | 646.18 | 18H |
| 646.20-Ti | 646.20 | 20H |
| 646.22-Ti | 646.22 | 22H |

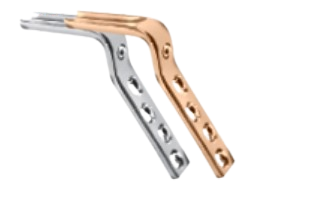

32. Angle Blade Plate 130° with Dynamic Holes
Placa de hoja angular de 130° con orificios dinámicos
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 5.6mm |
| Width | 16.0mm |
| Hole Spacing | 16.0/12.0mm |
| U-Profile Blade | 6.5 x 16.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
Blade Length Longitud de la hoja |
|---|---|---|---|
| 641.0460-Ti a 641.0480-Ti | 641.0460 a 641.0480 | 4H | 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm |
| 641.0660-Ti a 641.0680-Ti | 641.0660 a 641.0680 | 6H | 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm |
| 641.0960-Ti a 641.0980-Ti | 641.0960 a 641.0980 | 9H | 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm |
| 641.1260-Ti a 641.1280-Ti | 641.1260 a 641.1280 | 12H | 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm |
33. Angle Plate for Interochanteric Femur Osteotomes in Adults 90°with Dynamic Holes
Placa angular para osteótomos de fémur interocantérico en adultos 90° conagujeros dinámicos
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 5.6mm |
| Width | 16.0mm |
| Hole Spacing | 16.0mm |
| U-Profile Blade | 6.5 x 16.0mm |
| Overall Height | 94.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
Blade Length Longitud da le hoja |
|---|---|---|---|
| 642.050-Ti | 642.050 | 3H | 50mm |
| 642.060-Ti | 642.060 | 4H | 60mm |
34. Angle Plate for Interochanteric Femur Osteotomes in Adults 120° with Dynamic Holes
Placa angular para osteótomos de fémur interocantérico en adultos 120° con agujeros dinámicos
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 5.6mm |
| Width | 16.0mm |
| Hole Spacing | 16.0mm |
| U-Profile Blade | 6.5 x 16mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
Blade Length Longitud de la hoja |
|---|---|---|---|
| 643.065-Ti | 643.065 | 4H | 65mm |
| 643.075-Ti | 643.075 | 4H | 75mm |
| 643.085-Ti | 643.085 | 4H | 85mm |

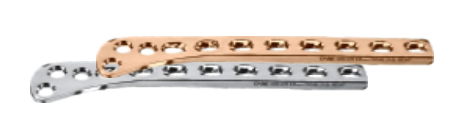

35. Condylar Buttress Plate For Left Leg
Placa de refuerzo condilar para pierna izquierda
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 5.0mm |
| Width | 16.0mm |
| Hole Spacing | 16.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 915.05L-Ti | 915.05L | 5H |
| 915.07L-Ti | 915.07L | 7H |
| 915.09L-Ti | 915.09L | 9H |
| 915.11L-Ti | 915.11L | 11H |
| 915.12L-Ti | 915.12L | 12H |
| 915.13L-Ti | 915.13L | 13H |
| 915.15L-Ti | 915.15L | 15H |
| 915.16L-Ti | 915.16L | 16H |
36. Condylar Buttress Plate For Right Leg
Placa de refuerzo condilar para pierna derecha
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 5.0mm |
| Width | 16.0mm |
| Hole Spacing | 16.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 915.05R-Ti | 915.05R | 5H |
| 915.07R-Ti | 915.07R | 7H |
| 915.09R-Ti | 915.09R | 9H |
| 915.11R-Ti | 915.11R | 11H |
| 915.12R-Ti | 915.12R | 12H |
| 915.13R-Ti | 915.13R | 13H |
| 915.15R-Ti | 915.15R | 15H |
| 915.16R-Ti | 915.16R | 16H |
37. Straight Reconstruction Plate For 3.5mm Screws
Placa de reconstrucción recta para tornillos de 3,5 mm
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 2.8mm |
| Width | 10.0mm |
| Hole Spacing | 12.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 630.03-Ti | 630.03 | 3H |
| 630.04-Ti | 630.04 | 4H |
| 630.05-Ti | 630.05 | 5H |
| 630.06-Ti | 630.06 | 6H |
| 630.07-Ti | 630.07 | 7H |
| 630.08-Ti | 630.08 | 8H |
| 630.09-Ti | 630.09 | 9H |
| 630.10-Ti | 630.10 | 10H |
| 630.11-Ti | 630.11 | 11H |
| 630.12-Ti | 630.12 | 12H |
| 630.13-Ti | 630.13 | 13H |
| 630.14-Ti | 630.14 | 14H |
| 630.15-Ti | 630.15 | 15H |
| 630.16-Ti | 630.16 | 16H |
| 630.17-Ti | 630.17 | 17H |
| 630.18-Ti | 630.18 | 18H |
| 630.19-Ti | 630.19 | 19H |
| 630.20-Ti | 630.20 | 20H |
| 630.21-Ti | 630.21 | 21H |
| 630.22-Ti | 630.22 | 22H |
| 630.23-Ti | 630.23 | 23H |
| 630.24-Ti | 630.24 | 24H |
38. Curved Reconstruction Plate (3.5mm)
Placa de reconstrucción curva (3,5 mm)
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 3.6mm |
| Width | 10.0mm |
| Hole Spacing | 12.0mm |
| Bending Radius | 100mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 630.06C-Ti | 630.06C | 6H |
| 630.07C-Ti | 630.07C | 7H |
| 630.08C-Ti | 630.08C | 8H |
| 630.09C-Ti | 630.09C | 9H |
| 630.10C-Ti | 630.10C | 10H |
| 630.11C-Ti | 630.11C | 11H |
| 630.12C-Ti | 630.12C | 12H |
| 630.14C-Ti | 630.14C | 14H |
| 630.16C-Ti | 630.16C | 16H |
| 630.18C-Ti | 630.18C | 18H |
39. Calcaneal Plate (3.5mm)
Placa Calcanea (3.5mm)
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 1.2mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 909.60-Ti | 909.60 | 60mm |
| 909.70-Ti | 909.70 | 70mm |
40. Y-Reconstruction Plates For Humeral Condyle
Placas de reconstrucción en Y para Condyle humeral
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 631.01-Ti | 631.01 | Small |
| 631.03-Ti | 631.03 | Large |
| 631.02-Ti | 631.02 | Medium |

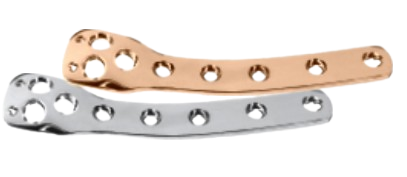

41. Distal Lateral Femoral Plate (Right & Left) Modified
Placa femoral lateral distal (derecha e izquierda) modificada
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 955.05DLF-R-Ti | 955.05DLF-R | 5H |
| 955.07DLF-R-Ti | 955.07DLF-R | 7H |
| 955.09DLF-R-Ti | 955.09DLF-R | 9H |
| 955.11DLF-R-Ti | 955.11DLF-R | 11H |
| 955.13DLF-R-Ti | 955.13DLF-R | 13H |
| 955.15DLF-R-Ti | 955.15DLF-R | 15H |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 955.05DLF-L-Ti | 955.05DLF-L | 5H |
| 955.07DLF-L-Ti | 955.07DLF-L | 7H |
| 955.09DLF-L-Ti | 955.09DLF-L | 9H |
| 955.11DLF-L-Ti | 955.11DLF-L | 11H |
| 955.13DLF-L-Ti | 955.13DLF-L | 13H |
| 955.15DLF-L-Ti | 955.15DLF-L | 15H |

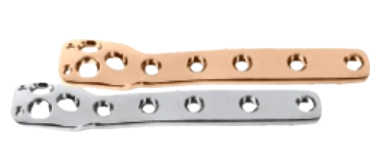

42. Lateral Tibial Head Buttress Plate For Left Leg
Placa de soporte de cabeza tibial lateral para pierna izquierda
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 3.8mm |
| Width | 14.0mm |
| Hole Spacing | 16.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 688.05L-Ti | 688.05L | 5H |
| 688.07L-Ti | 688.07L | 7H |
| 688.09L-Ti | 688.09L | 9H |
| 688.11L-Ti | 688.11L | 11H |
| 688.12L-Ti | 688.12L | 12H |
| 688.13L-Ti | 688.13L | 13H |
43. Lateral Tibial Head Buttress Plate For Right Leg
Placa de soporte de cabeza tibial lateral para pierna derecha
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 3.8mm |
| Width | 14.0mm |
| Hole Spacing | 16.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 688.05R-Ti | 688.05R | 5H |
| 688.07R-Ti | 688.07R | 7H |
| 688.09R-Ti | 688.09R | 9H |
| 688.11R-Ti | 688.11R | 11H |
| 688.12R-Ti | 688.12R | 12H |
| 688.13R-Ti | 688.13R | 13H |
44. D.H.S. Barrel Plate 120° Double Bend with Dynamic Holes
DHS Placa cilíndrica de 120° de doble curvatura con orificios dinámicos
| Especificación técnica Technical Specification |
Tamaño Size |
|---|---|
| Thickness | 5.8mm |
| Width | 19.0mm |
| Hole Spacing | 16.0mm |
| Outer Barrel Dia | 12.5mm |
| Barrel Length | 38.0mm |
| Ref. No. Titanio Ref. No. Ti |
Ref. No. Acero inoxidable Ref. No. SS |
Tamaño Size |
|---|---|---|
| 916.04-Ti | 916.04 | 4H |
| 916.05-Ti | 916.05 | 5H |
| 916.06-Ti | 916.06 | 6H |
| 916.07-Ti | 916.07 | 7H |
| 916.08-Ti | 916.08 | 8H |
| 916.09-Ti | 916.09 | 9H |
| 916.10-Ti | 916.10 | 10H |
| 916.11-Ti | 916.11 | 11H |
| 916.12-Ti | 916.12 | 12H |
| 916.13-Ti | 916.13 | 13H |
| 916.14-Ti | 916.14 | 14H |
| 916.15-Ti | 916.15 | 15H |
| 916.16-Ti | 916.16 | 16H |
| 916.17-Ti | 916.17 | 17H |
| 916.18-Ti | 916.18 | 18H |
| 916.19-Ti | 916.19 | 19H |
| 916.20-Ti | 916.20 | 20H |
| 916.21-Ti | 916.21 | 21H |
| 916.22-Ti | 916.22 | 22H |
45. D.H.S. Barrel Plate 130° with Dynamic Holes
DHS Placa de barril 130° con orificios dinámicos
| No. of Holes | 130° Cat No. | 135° Cat No. | 140° Cat No. | 145° Cat No. | 150° Cat No. |
|---|---|---|---|---|---|
| 2 | 917.02 | 645.02 | 918.02 | 919.02 | 920.02 |
| 3 | 917.03 | 645.03 | 918.03 | 919.03 | 920.03 |
| 4 | 917.04 | 645.04 | 918.04 | 919.04 | 920.04 |
| 5 | 917.05 | 645.05 | 918.05 | 919.05 | 920.05 |
| 6 | 917.06 | 645.06 | 918.06 | 919.06 | 920.06 |
| 7 | 917.07 | 645.07 | 918.07 | 919.07 | 920.07 |
| 8 | 917.08 | 645.08 | 918.08 | 919.08 | 920.08 |
| 9 | 917.09 | 645.09 | 918.09 | 919.09 | 920.09 |
| 10 | 917.10 | 645.10 | 918.10 | 919.10 | 920.10 |
| 11 | 917.11 | 645.11 | 918.11 | 919.11 | 920.11 |
| 12 | 917.12 | 645.12 | 918.12 | 919.12 | 920.12 |
| 13 | 917.13 | 645.13 | 918.13 | 919.13 | 920.13 |
| 14 | 917.14 | 645.14 | 918.14 | 919.14 | 920.14 |
| 15 | 917.15 | 645.15 | 918.15 | 919.15 | 920.15 |
| 16 | 917.16 | 645.16 | 918.16 | 919.16 | 920.16 |
| 17 | 917.17 | 645.17 | 918.17 | 919.17 | 920.17 |
| 18 | 917.18 | 645.18 | 918.18 | 919.18 | 920.18 |
| 19 | 917.19 | 645.19 | 918.19 | 919.19 | 920.19 |
| 20 | 917.20 | 645.20 | 918.20 | 919.20 | 920.20 |
| 21 | 917.21 | 645.21 | 918.21 | 919.21 | 920.21 |
| 22 | 917.22 | 645.22 | 918.22 | 919.22 | 920.22 |
| Technical Specification | Size |
|---|---|
| Thickness | 5.8mm |
| Width | 19.0mm |
| Hole Spacing | 16.0mm |
| Outer Barrel Dia | 12.5mm |
| Barrel Length | 38.0mm |
46. D.H.S. Barrel Plate 130° with Dynamic Holes Short Barrel
DHS Placa de barril 130° con agujeros dinámicos Barril corto
| No. of Holes | 130° Cat No. | 135° Cat No. | 140° Cat No. | 145° Cat No. | 150° Cat No. |
|---|---|---|---|---|---|
| 2 | 917.02SB | 645.02SB | 918.02SB | 919.02SB | 920.02SB |
| 3 | 917.03SB | 645.03SB | 918.03SB | 919.03SB | 920.03SB |
| 4 | 917.04SB | 645.04SB | 918.04SB | 919.04SB | 920.04SB |
| 5 | 917.05SB | 645.05SB | 918.05SB | 919.05SB | 920.05SB |
| 6 | 917.06SB | 645.06SB | 918.06SB | 919.06SB | 920.06SB |
| 7 | 917.07SB | 645.07SB | 918.07SB | 919.07SB | 920.07SB |
| 8 | 917.08SB | 645.08SB | 918.08SB | 919.08SB | 920.08SB |
| 9 | 917.09SB | 645.09SB | 918.09SB | 919.09SB | 920.09SB |
| 10 | 917.10SB | 645.10SB | 918.10SB | 919.10SB | 920.10SB |
| 11 | 917.11SB | 645.11SB | 918.11SB | 919.11SB | 920.11SB |
| 12 | 917.12SB | 645.12SB | 918.12SB | 919.12SB | 920.12SB |
| 13 | 917.13SB | 645.13SB | 918.13SB | 919.13SB | 920.13SB |
| 14 | 917.14SB | 645.14SB | 918.14SB | 919.14SB | 920.14SB |
| 15 | 917.15SB | 645.15SB | 918.15SB | 919.15SB | 920.15SB |
| 16 | 917.16SB | 645.16SB | 918.16SB | 919.16SB | 920.16SB |
| 17 | 917.17SB | 645.17SB | 918.17SB | 919.17SB | 920.17SB |
| 18 | 917.18SB | 645.18SB | 918.18SB | 919.18SB | 920.18SB |
| 19 | 917.19SB | 645.19SB | 918.19SB | 919.19SB | 920.19SB |
| 20 | 917.20SB | 645.20SB | 918.20SB | 919.20SB | 920.20SB |
| 21 | 917.21SB | 645.21SB | 918.21SB | 919.21SB | 920.21SB |
| 22 | 917.22SB | 645.22SB | 918.22SB | 919.22SB | 920.22SB |
| Technical Specification | Size |
|---|---|
| Thickness | 5.8mm |
| Width | 19.0mm |
| Hole Spacing | 16.0mm |
| Outer Barrel Dia | 12.5mm |
| Barrel Length | 25.0mm |

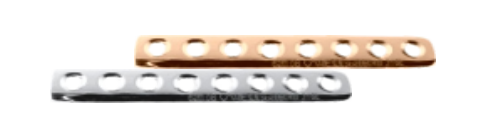

47. Lengthening Plate 4.5mm Narrow - 8 Holes
Placa de Alargamiento 4.5mm Estrecha - 8 Agujeros
| Ref. No. Ti Ref. No. Titanio |
Ref. No. SS Ref. No. Acero inoxidable |
Size Tamaño |
|---|---|---|
| 911.30-Ti | 911.30 | 30mm |
| 911.40-Ti | 911.40 | 40mm |
| 911.50-Ti | 911.50 | 50mm |
| 911.60-Ti | 911.60 | 60mm |
| 911.70-Ti | 911.70 | 70mm |
| 911.80-Ti | 911.80 | 80mm |
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 3.6mm |
| Width | 12.0mm |
| Hole Spacing | 12.0mm |
48. Lengthening Plate 4.5mm Broad - 8 Holes & 10 Holes
Placa de alargamiento de 4,5 mm de ancho - 8 orificios y 10 orificios
| Ref. No. Ti Ref. No. Titanio |
Ref. No. SS Ref. No. Acero inoxidable |
Size Tamaño |
|---|---|---|
| 912.30-Ti | 912.30 | 30mm |
| 912.40-Ti | 912.40 | 40mm |
| 912.50-Ti | 912.50 | 50mm |
| 912.60-Ti | 912.60 | 60mm |
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thickness | 4.5mm |
| Width | 16.0mm |
| Hole Spacing | 12.0mm |
| Ref. No. Ti Ref. No. Titanio |
Ref. No. SS Ref. No. Acero inoxidable |
Size Tamaño |
|---|---|---|
| 912.30-Ti | 912.30 | 30mm |
| 912.40-Ti | 912.40 | 40mm |
| 912.50-Ti | 912.50 | 50mm |
| 912.60-Ti | 912.60 | 60mm |
| 913.70-Ti | 913.70 | 70mm |
| 913.80-Ti | 913.80 | 80mm |
| 913.90-Ti | 913.90 | 90mm |
| 913.100-Ti | 913.100 | 100mm |
| 913.110-Ti | 913.110 | 110mm |
| 913.120-Ti | 913.120 | 120mm |
49. Steffee Plate
Plato de Steffee
| Ref. No. Ti Ref. No. Titanio |
Ref. No. SS Ref. No. Acero inoxidable |
Size Tamaño |
|---|---|---|
| 422.01-Ti | 422.01 | 2.0H |
| 422.02-Ti | 422.02 | 2.5H |
| 422.03-Ti | 422.03 | 3.0H |
| 422.04-Ti | 422.04 | 3.5H |
| 422.05-Ti | 422.05 | 4.0H |
| 422.06-Ti | 422.06 | 4.5H |
| 422.07-Ti | 422.07 | 5.0H |
| 422.08-Ti | 422.08 | 5.5H |
| 422.09-Ti | 422.09 | 6.0H |
| 422.10-Ti | 422.10 | 6.5H |
| 422.11-Ti | 422.11 | 7.0H |
| 422.12-Ti | 422.12 | 7.5H |
| 422.13-Ti | 422.13 | 8.0H |
